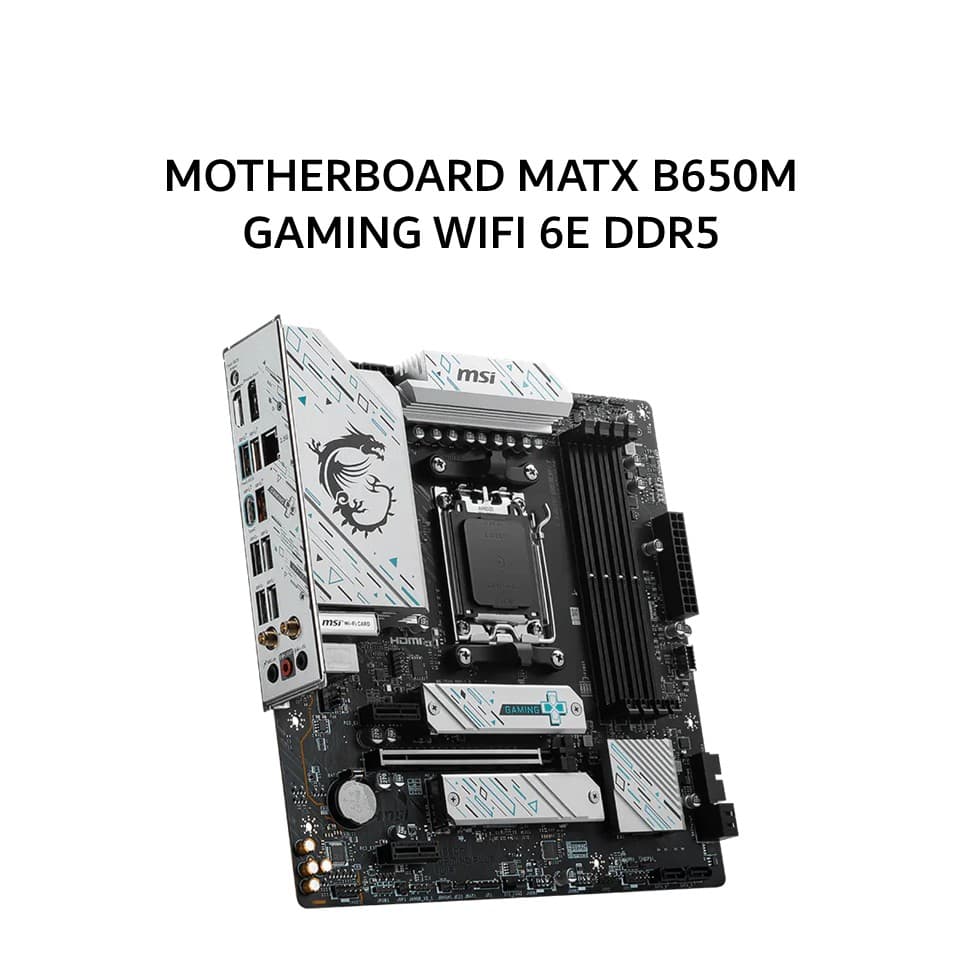

MSI MOTHERBOARD MATX B650M GAMING WIFI 6E DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: MSI

Tipe: MOTHERBOARD MATX B650M GAMING WIFI 6E DDR5

Chipset: AMD B650

CPU: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Memory: 4x DDR5 UDIMM Max 256GB

Memory Support: DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

Memory Channel: Dual-Channel

Memory Type: Non-ECC Un-buffered

AMD EXPO™: Supported

Max Overclocking Frequency:

1DPC 1R Max up to 7200+ MHz

1DPC 2R Max up to 6000+ MHz

2DPC 1R Max up to 6000+ MHz

2DPC 2R Max up to 5400+ MHz

Onboard Graphics:

1x HDMI™ 2.1 Max 4K 60Hz

1x DisplayPort 1.4 Max 4K 60Hz

Expansion Slot:

1x PCI-E x16

2x PCI-E x1

Audio: Realtek® ALC897 7.1-Channel High Definition Audio

Storage:

2x M.2 PCIe 4.0 x4

4x SATA 6G

RAID: RAID 0 1 10 for SATA RAID 0 1 for M.2 NVMe

USB:

4x USB 2.0 Front

4x USB 5Gbps Type A Rear

2x USB 5Gbps Type A Front

3x USB 10Gbps Type A Rear

1x USB 10Gbps Type C Rear

1x USB 10Gbps Type C Front

LAN: Realtek® RTL8125BG 2.5Gbps LAN

Wireless LAN: Wi-Fi 6E

Bluetooth: 5.3

Internal IO:

1x ATX Power

2x CPU Power

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel

1x Chassis Intrusion

1x Front Audio

1x Tuning Controller

2x Addressable V2 RGB

2x RGB LED

1x TPM Header

4x USB 2.0

2x USB 5Gbps Type A

1x USB 10Gbps Type C

LED Feature: 4x EZ Debug LED

Back Panel Ports:

DisplayPort

HDMI™

2.5G LAN

USB 3.2 Gen 2 10Gbps Type A

USB 3.2 Gen 2 10Gbps Type C

USB 3.2 Gen 1 5Gbps Type A

Wi-Fi / Bluetooth

Flash BIOS Button

Audio Connectors

Operating System: Windows® 11 64-bit Windows® 10 64-bit
