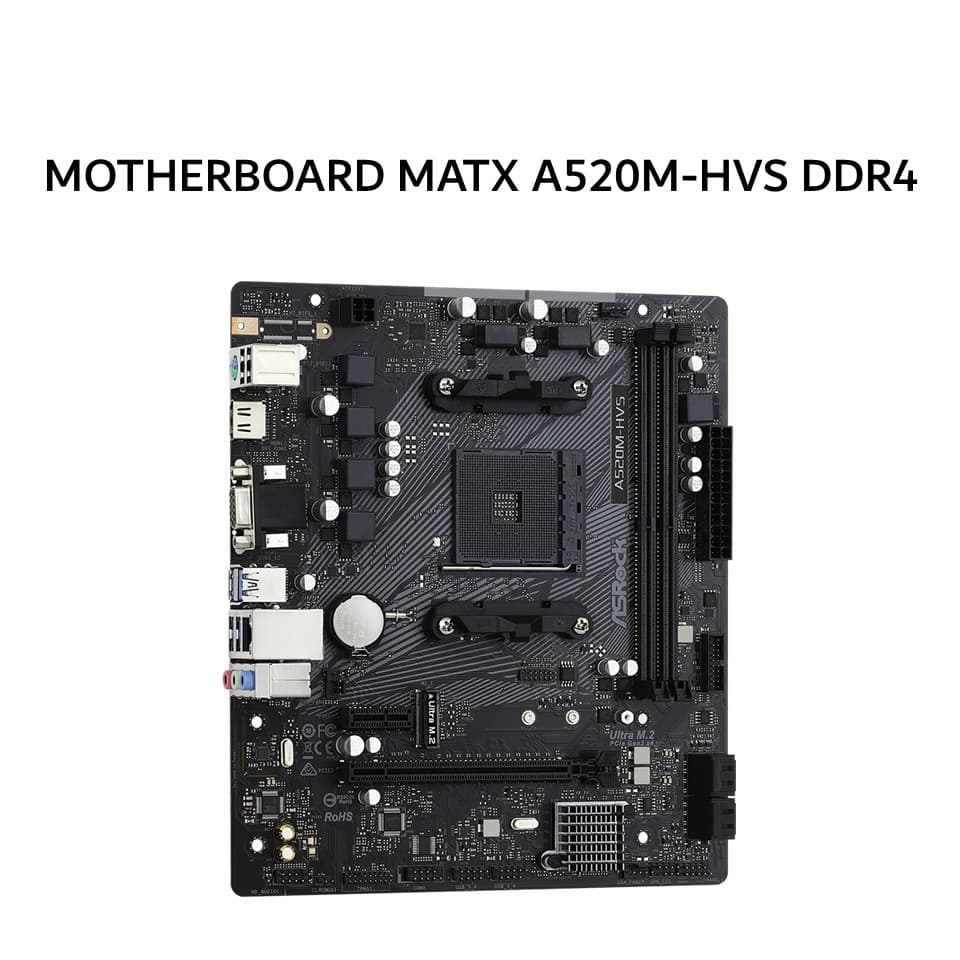

ASROCK MOTHERBOARD MATX A520M-HVS DDR4 AM4 /AMD 3Y

SPESIFIKASI

Brand: ASRock

Tipe: Motherboard MATX A520M-HVS DDR4

Chipset: AMD A520

Socket: AM4

CPU Support: AMD Ryzen™ 3000 3000G Series 4000G Series 5000 and 5000G Series Desktop Processors

Memory Support: DDR4 up to 4600+ OC

Memory Slot: 2x DDR4 DIMM

Max Memory: 64GB

Expansion Slot:

1x PCIe 3.0 x16

1x PCIe 3.0 x1

Storage:

1x M.2 PCIe Gen3 x4 SATA3

4x SATA3 6Gb/s

Graphics Output:

1x HDMI 2.1

1x D-Sub

LAN: Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H

Audio: 7.1 Channel HD Audio Realtek ALC887 ALC897

Rear Interface:

1x PS/2 Mouse Keyboard Port

1x D-Sub

1x HDMI

2x USB 2.0

4x USB 3.2 Gen1

1x RJ-45 LAN Port

HD Audio Jacks Line in Front Speaker Microphone

Internal Connector:

1x SPI TPM Header

1x COM Port Header

1x Chassis Intrusion Speaker Header

1x CPU Fan Connector

2x Chassis Fan Connectors

1x 24-pin ATX Power Connector

1x 4-pin 12V Power Connector

1x Front Panel Audio Connector

2x USB 2.0 Headers

1x USB 3.2 Gen1 Header

Accessories:

I/O Shield

2x SATA Data Cables

1x Screw for M.2 Socket

Form Factor: Micro ATX

Dimension: 230 x 201 mm

OS Support: Windows 10 64-bit Windows 11 64-bit
