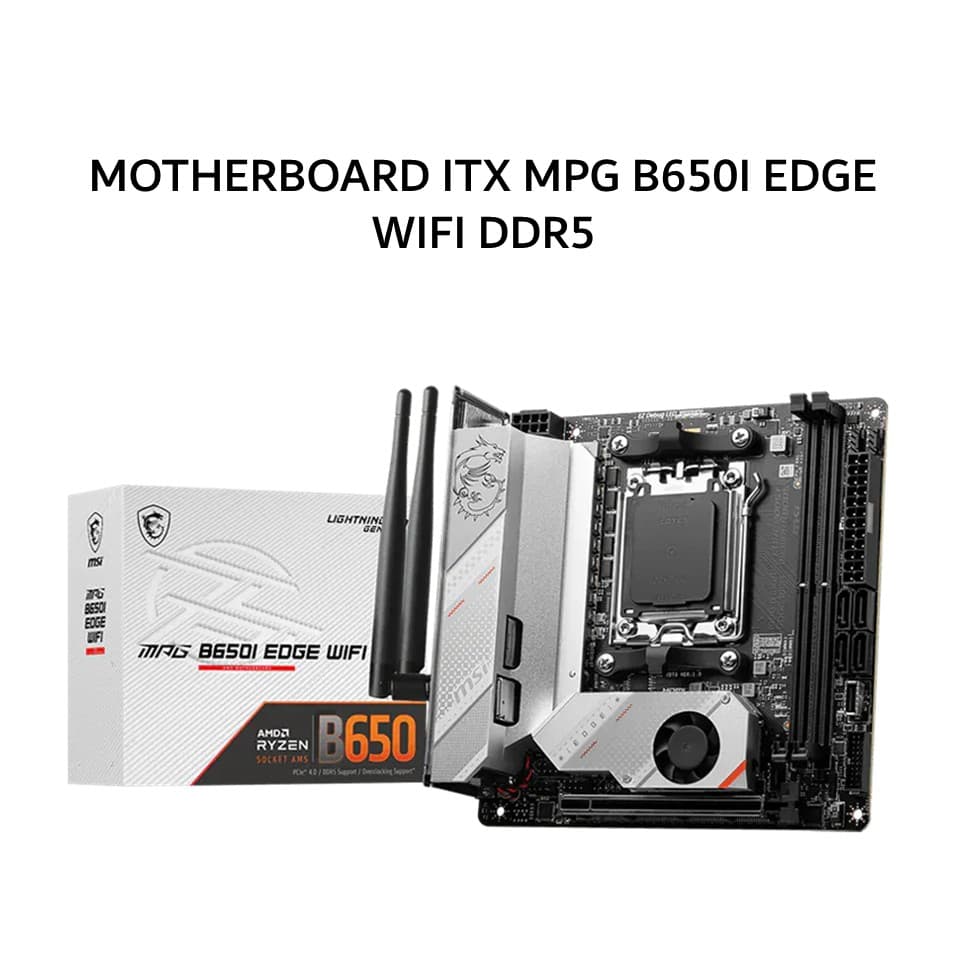

MSI MOTHERBOARD ITX MPG B650I EDGE WIFI DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: MSI

Tipe: MPG B650I EDGE WIFI

Socket: AMD Socket AM5

Chipset: AMD B650

Processor Support:

AMD Ryzen 9000 Series

AMD Ryzen 8000 Series

AMD Ryzen 7000 Series

Memory:

2x DDR5 DIMM

Up to 128GB

DDR5 Up to 7200+ MHz (OC)

Dual Channel

AMD EXPO Support

Graphics Output:

1x HDMI 2.1

Up to 4K 120Hz (Processor with Integrated Graphics Required)

Expansion Slot:

1x PCIe 4.0 x16

Storage:

2x M.2 PCIe 4.0 x4

4x SATA 6Gb/s

RAID 0 / 1 / 10 (SATA)

RAID 0 / 1 (NVMe)

Audio:

Realtek ALC4080

7.1 Channel HD Audio

LAN:

Realtek RTL8125BG 2.5Gb Ethernet

Wireless:

Wi-Fi 6E

Bluetooth 5.3

USB Ports:

1x USB 20Gbps Type-C

3x USB 10Gbps Type-A

2x USB 5Gbps Type-A

2x USB 2.0

1x USB 10Gbps Type-C Front Header

1x USB 5Gbps Front Header

2x USB 2.0 Front Header

Rear I/O:

1x HDMI 2.1

1x USB 20Gbps Type-C

3x USB 10Gbps Type-A

2x USB 5Gbps Type-A

1x 2.5Gb LAN

Audio Jacks

Flash BIOS Button

Clear CMOS Button

Features:

EZ Debug LED

Flash BIOS Button

TPM 2.0 Header

Addressable RGB Header

Form Factor: Mini-ITX

Dimensions: 170 x 170 mm

Operating System:

Windows 11 64-bit

Windows 10 64-bit

Warranty: Official MSI Warranty
