ECS MOTHERBOARD H510M LGA1200 (GEN 10-11) 2Y

ECS MOTHERBOARD H510M LGA1200 (GEN 10-11) 2Y

CPU

Supports 11th Gen and 10th Intel Core family Pentium dan Celeron series processors untuk socket LGA 1200

5+2 Phase Thermal Design Power

CHIPSET

Intel H510 Express Chipset

GRAPHICS

Integrated Intel UHD Graphics

MEMORY

Dual Channel DDR4 Memory Architecture

2 x 288 pin DDR4 DIMM Socket

Support hingga 64 GB

EXPANSION SLOT

1 x PCI Express x16 Gen 4.0 Slot

1 x PCI Express x1 Gen 3.0 Slot

STORAGE

4 x SATA III 6Gb s

AUDIO

6 Channel HD Audio Codec

Realtek ALC897 6 Channel High Definition Audio Codec

LAN

Realtek RT8111H Gigabit LAN Controller

Wake On LAN

USB

4 x USB 3.2 Gen 1 Port hingga 5Gb s

Back Panel 2 Port

6 x USB 2.0 Port hingga 480 Mb s

Back Panel 4 Port

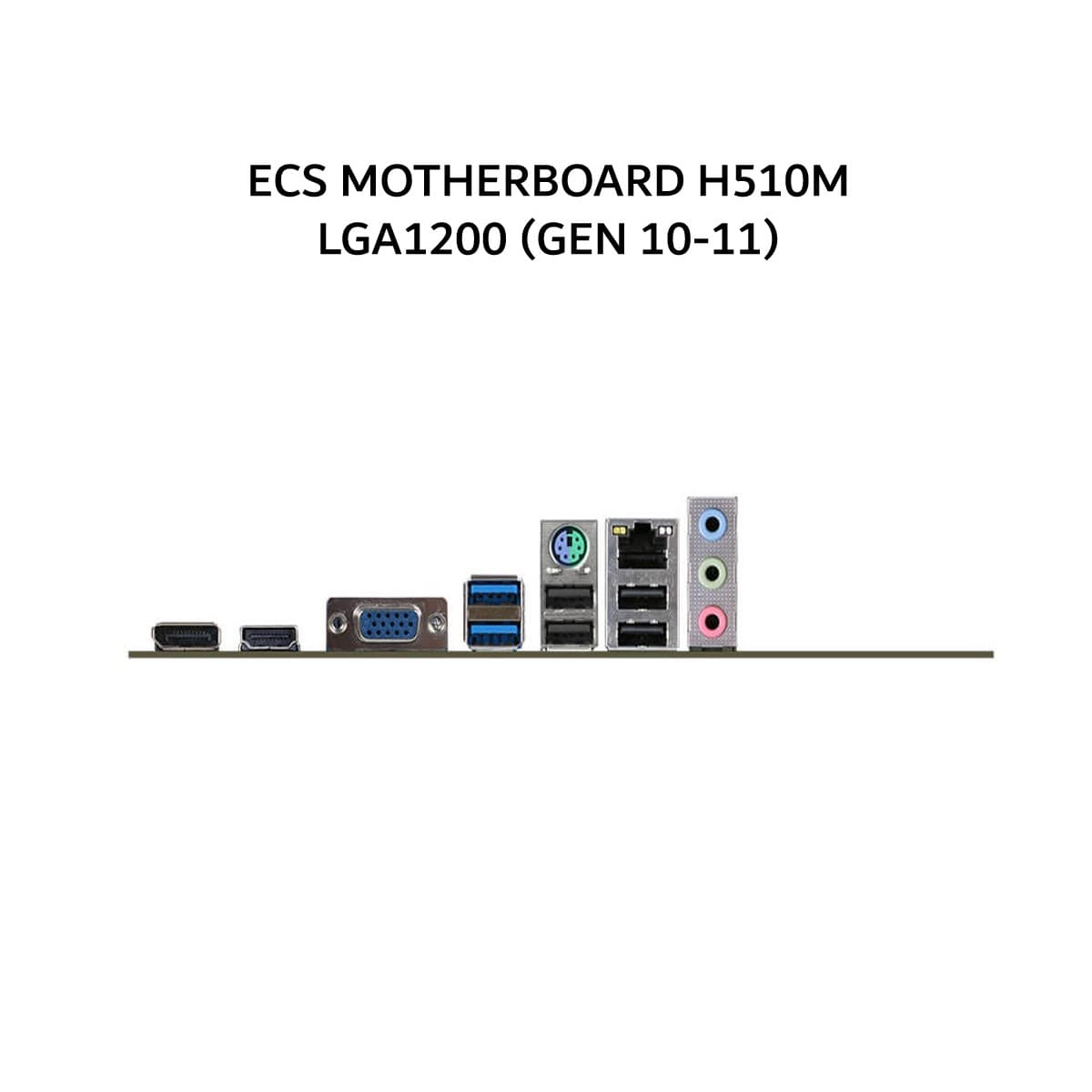

REAR PANEL IO

1 x PS2 Combo Connector

1 x Audio Port Line Out Line In Mic In

1 x RJ45 Port

1 x HDMI Port

1 x VGA Port

1 x DisplayPort

2 x USB 3.2 Gen 1 Type A Port

4 x USB 2.0 Port

CONNECTORS AND HEADERS

1 x 24 Pin ATX Power Supply Connector

1 x 8 Pin ATX 12V Power Connector

1 x 4 Pin CPU Fan Connector

1 x 4 Pin SYS Fan Connector

1 x Front Panel Switch LED Header

1 x Front Panel Audio Header

1 x Speaker Header

1 x USB 3.2 Gen 1 Header

1 x USB 2.0 Header

Support tambahan 2 USB Port

4 x SATA III Connector

1 x Clear CMOS Header

1 x Serial Port Header COM

1 x Chassis Intrusion Header

SYSTEM BIOS

AMI BIOS dengan 16 MB SPI Flash ROM

ACPI dan DMI

F7 Hotkey untuk Boot Device Option

Dual Display Support

Support ECS EZ BIOS

Support GUI UEFI BIOS

Plug and Play STR S3 STD S4 Hardware Monitor Multi Boot

Multi Language BIOS

Audio dan LAN dapat dinonaktifkan di BIOS

Support PgUp Clear CMOS Hotkey

Dual Monitor Function

FORM FACTOR

mATX Form Factor

220 x 200 mm

OS SUPPORT

Windows 10 64 bit

BUNDLED SOFTWARE

ECS Intelligent EZ Utility eDLU dan eSF
