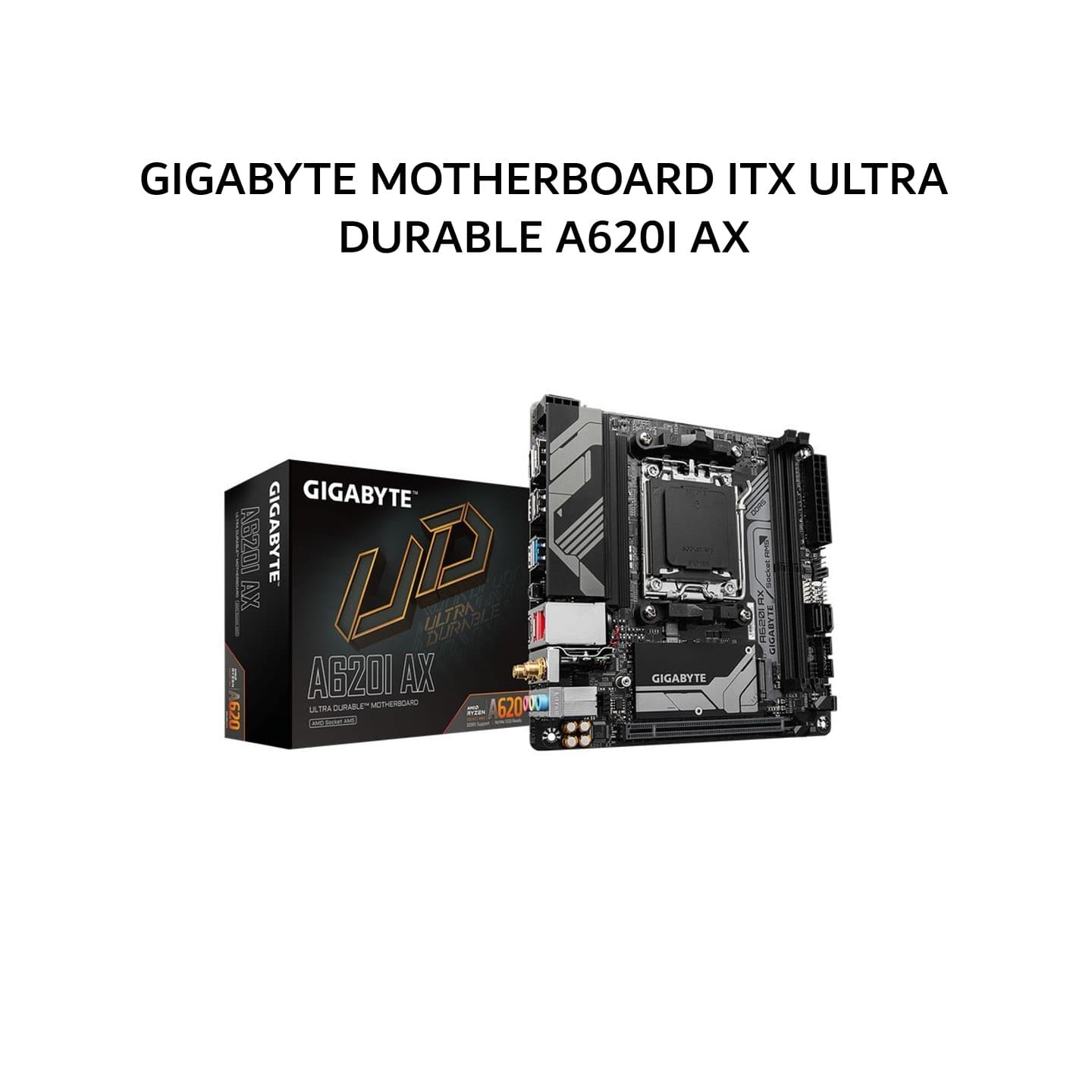

GIGABYTE MOTHERBOARD ITX ULTRA DURABLE A620I AX 1.0 DDR5 AM5 /AMD

GIGABYTE MOTHERBOARD ITX ULTRA DURABLE A620I AX 1.0 DDR5 AM5 /AMD

A620I AX

AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors

Unparalleled Performance：5+2+1 Phases Digital VRM Solution

Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector

EZ-Latch：PCIe x16 Slot with Quick Release Design

Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN

Extended Connectivity：DP, HDMI

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

AMD Socket AM5, support for: AMD Ryzen 7000/ Ryzen 8000 Series Processors

Chipset

AMD A620

Memory

Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme

Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Operating SystemH/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
