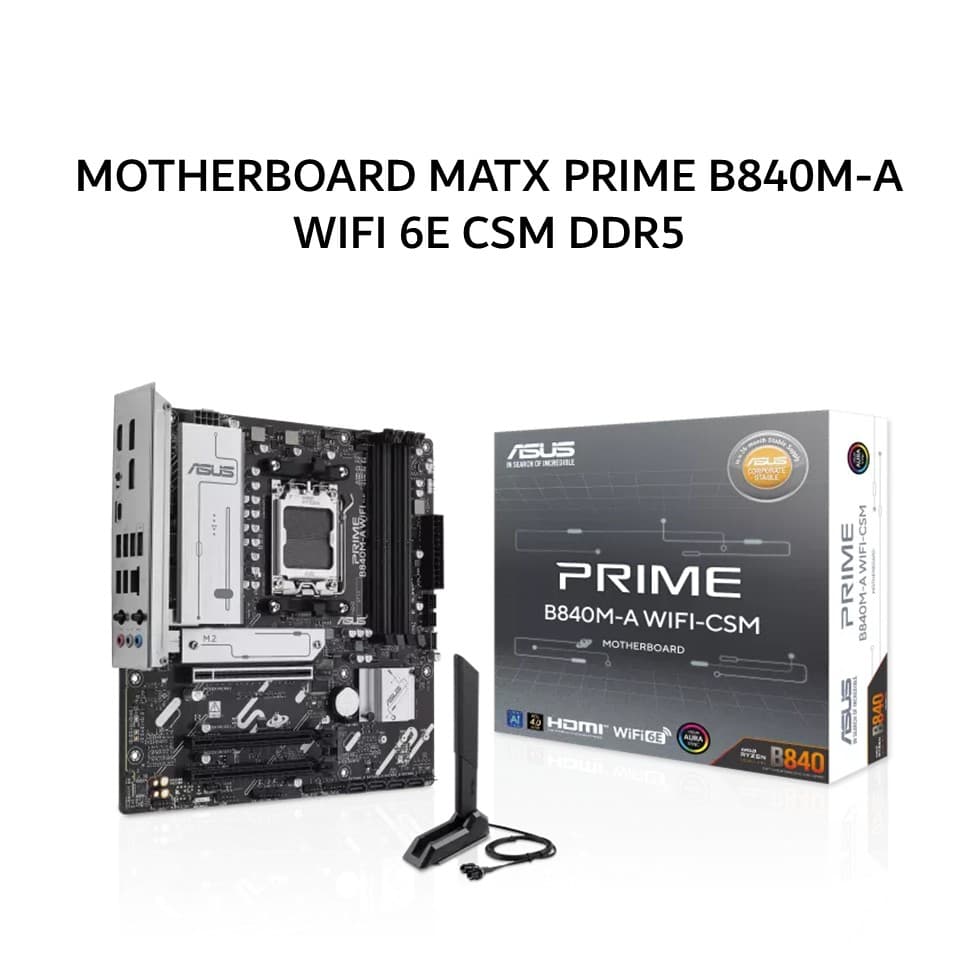

ASUS MOTHERBOARD MATX PRIME B840M-A WIFI 6E CSM DDR5 AM5 /AMD 3Y

SPESIFICATIONS

Brand: ASUS

Type: Prime B840M A WiFi 6E CSM DDR5

Color: Black

Socket: AM5

Chipset: AMD B840

Processor Support: AMD Ryzen 9000, 8000, 7000 Series Processors

Memory Support:

4x DDR5 DIMM Slots

Dual Channel DDR5

Up to 256GB

Supports DDR5 7600+ MT/s OC

Supports AMD EXPO

Supports ASUS AEMP

Expansion Slots:

1x PCIe 4.0 x16

2x PCIe 3.0 x16 x1 Mode

Storage:

3x M.2 PCIe SSD Slots

4x SATA 6Gb/s

Supports AMD RAIDXpert2 RAID

Graphics Output:

2x DisplayPort 1.4

1x HDMI 2.1

Audio:

7.1 Channel HD Audio

Realtek High Definition Audio Codec

Networking:

2.5 Gigabit LAN

Wi Fi 6E

Bluetooth 5.3

USB:

2x USB 10Gbps Type A

1x USB 5Gbps Type C

4x USB 2.0

1x Front USB 5Gbps Type C Header

1x Front USB 5Gbps Header

2x USB 2.0 Headers

Internal Connectors:

1x 24 Pin ATX Power

1x 8 Pin CPU Power

3x M.2 Slots

4x SATA 6Gb/s

3x Addressable Gen 2 RGB Headers

1x CPU Fan Header

1x CPU OPT Fan Header

1x AIO Pump Header

3x Chassis Fan Headers

Rear I/O:

2x USB 10Gbps Type A

1x USB 5Gbps Type C

4x USB 2.0

2x DisplayPort

1x HDMI

1x Wi Fi Antenna Connector

1x 2.5 Gigabit LAN

3x Audio Jacks

1x BIOS FlashBack Button

Form Factor: Micro ATX

Dimensions: 244 x 244 mm

Warranty: Official ASUS Warranty
