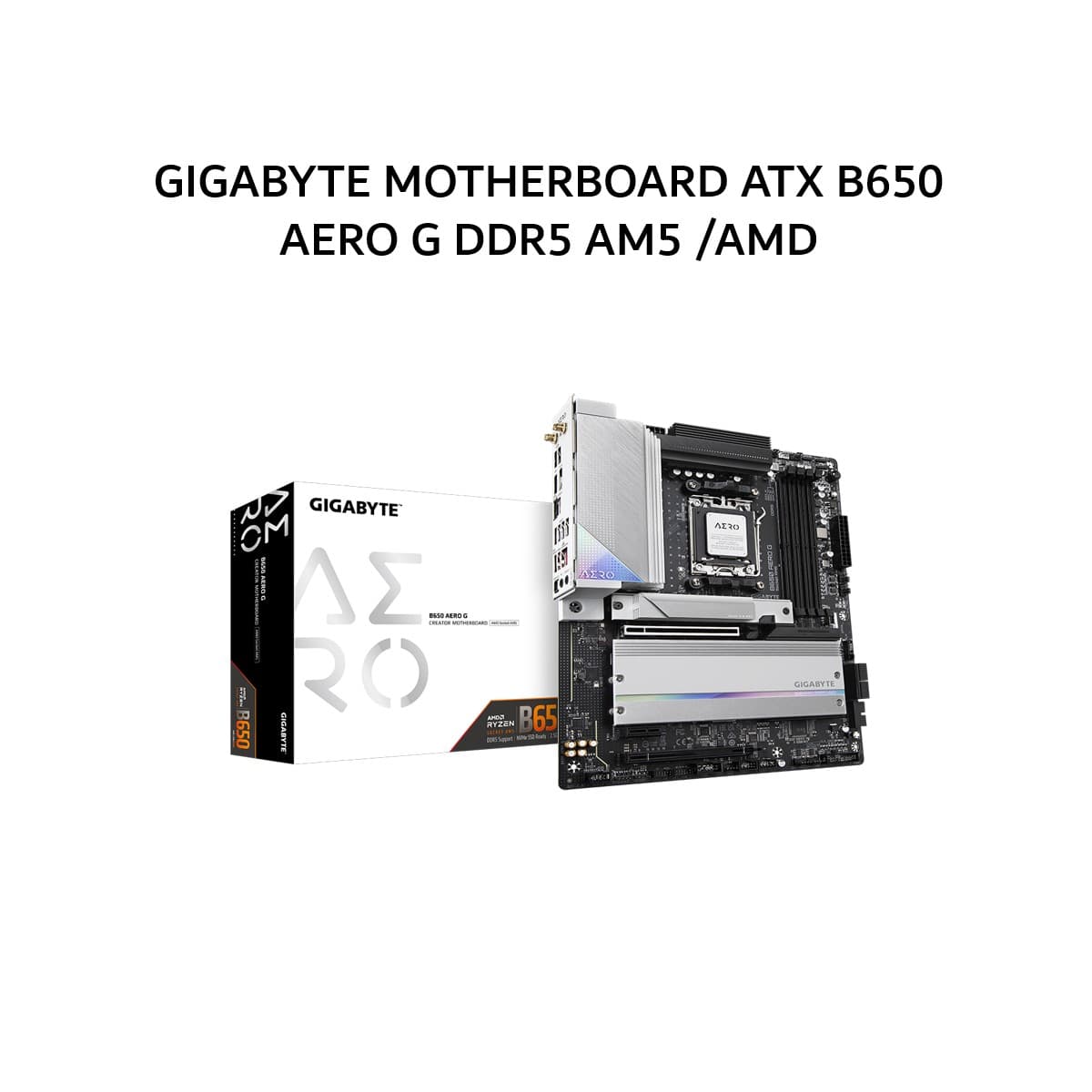

GIGABYTE MOTHERBOARD ATX B650 AERO G DDR5 AM5 /AMD

GIGABYTE MOTHERBOARD ATX B650 AERO G DDR5 AM5 /AMD 3Y

GIGABYTE Creator Motherboard

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors

VisionLINK: One USB-C Port for Video, Data Transfer and Charging

Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support

Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance

EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design

Fast Networks: Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity: DP IN, HDMI, Front USB-C 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD B650

Memory

Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

* Support for drawing tablets and 20V@3A of power delivery.

* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU or graphics card support.)

Audio

Realtek ALC
