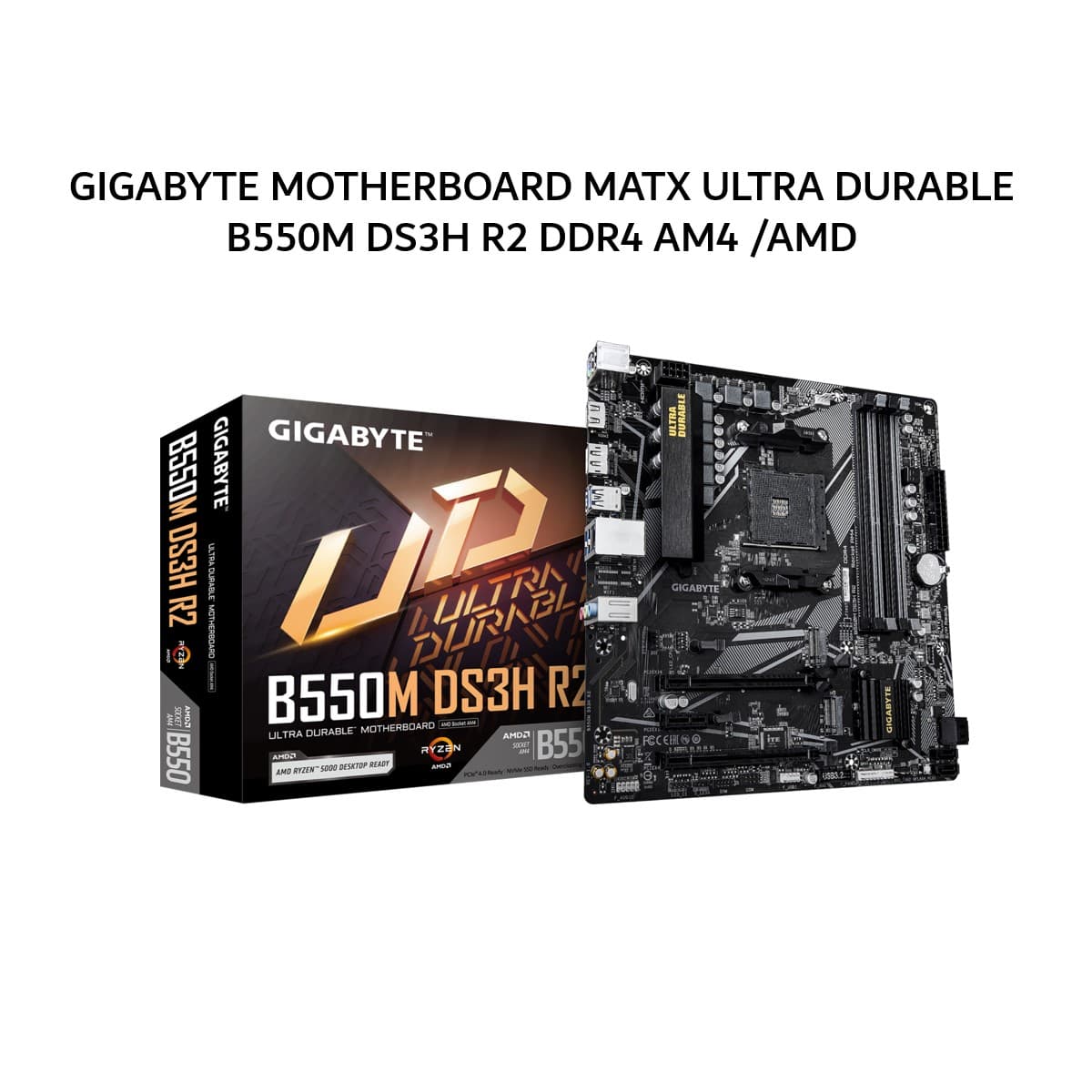

GIGABYTE MOTHERBOARD MATX ULTRA DURABLE B550M DS3H R2 DDR4 AM4 /AMD 3Y

GIGABYTE MOTHERBOARD MATX ULTRA DURABLE B550M DS3H R2 AM4 /AMD 3Y

Gigabyte B550M DS3H R2** adalah motherboard Micro-ATX berbasis chipset AMD B550 dengan dukungan prosesor Ryzen 3000, 4000G, dan 5000 Series. Dilengkapi slot DDR4 hingga 128GB, PCIe 4.0, audio Realtek ALC1220, serta fitur Ultra Durable khas Gigabyte, motherboard ini menawarkan stabilitas, kompatibilitas luas, dan performa tinggi untuk build gaming maupun produktivitas.

- Chipset: AMD B550

- Socket: AM4

- CPU Support:

- AMD Ryzen 5000 Series

- AMD Ryzen 5000 G-Series

- AMD Ryzen 4000 G-Series

- AMD Ryzen 3000 Series

- AMD Ryzen 3000 G-Series

- Memory:

- 4x DDR4 DIMM, up to 128GB

- Speed: DDR4 4733(O.C.) – 2133 MT/s

- Dual-channel architecture

- ECC & non-ECC support (depending on CPU/mobo)

- XMP support

Graphics (Integrated, CPU dependent)

- 1x DisplayPort 1.4 (max 5120x2880@60Hz, HDR, HDCP 2.3)

- 1x HDMI 2.1 (max 4096x2160@60Hz, HDR, HDCP 2.3)

- Shared memory up to 16GB

Audio

- Realtek ALC1220 Codec

- 7.1 Channel HD Audio, DSD support

LAN

- Realtek GbE LAN (1Gbps)

Expansion Slots

- 1x PCIe x16 (CPU, PCIe 4.0 or 3.0 depending on CPU)

- 1x PCIe x16 (Chipset, PCIe 3.0 x4)

- 1x PCIe x1 (PCIe 3.0)

Storage

- 2x M.2 (CPU & Chipset)

- 4x SATA 6Gb/s

- RAID 0/1/10 support (NVMe & SATA)

USB

- Rear I/O: 4x USB 3.2 Gen1, 2x USB 2.0

- Internal: USB Type-C (Gen1), 2x USB 3.2 Gen1, 2x USB 2.0

Internal Connectors

- 24-pin ATX main power

- 8-pin ATX 12V

- CPU & system fan headers

- RGB & ARGB headers

- TPM header

- Q-Flash Plus button

Rear I/O Panel

- 2x USB 2.0

- 4x USB 3.2 Gen1

- 1x HDMI

- 1x DisplayPort

- 1x RJ-45 LAN

- 3x Audio jacks

- 1x PS/2 keyboard/mouse

Form Factor

- Micro-ATX, 24.4 x 24.4 cm

Warranty

- 3 years official Gigabyte warranty
