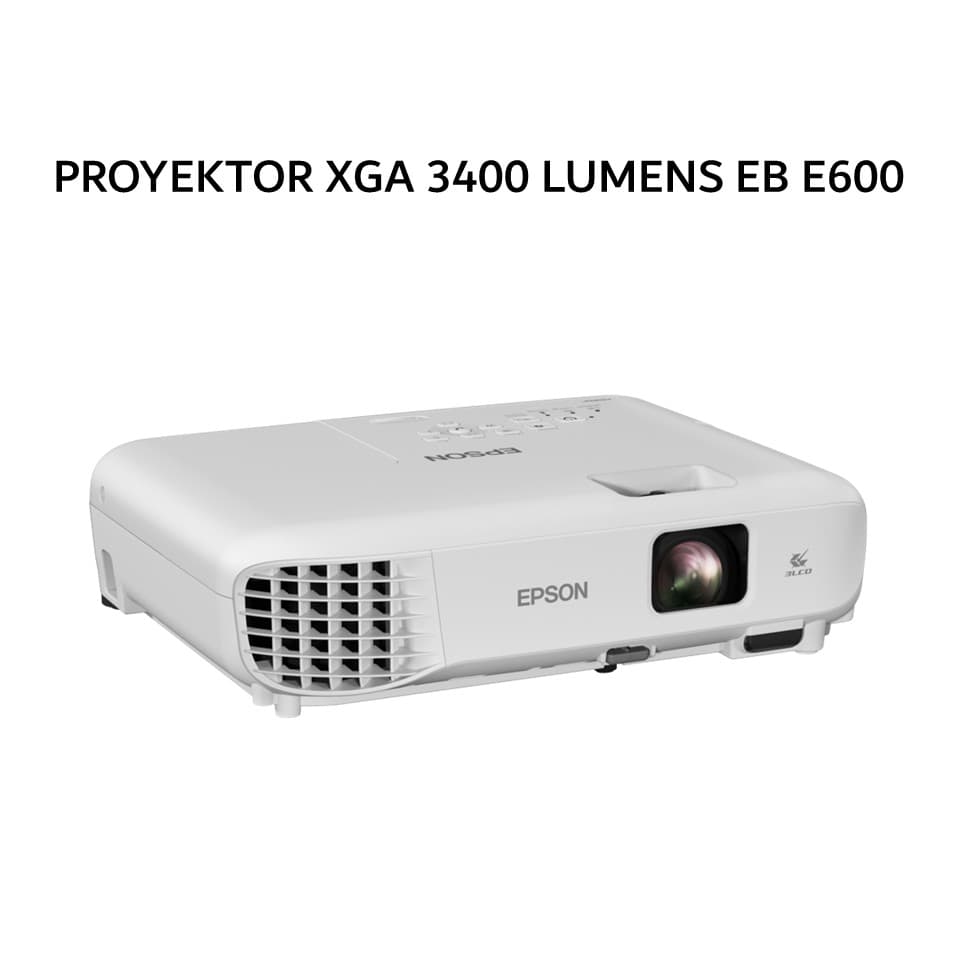

EPSON PROYEKTOR XGA 3400 LUMENS EB E600 TKDN 3Y

PRODUCT DESCRIPTION

SPECIFICATIONS

PERFORMANCE

Projection Technology: RGB Liquid Crystal Shutter Projection System 3LCD

Native Resolution: XGA 1024 x 768

Brightness White Light Output Normal Eco: 3400 lm 2200 lm

Colour Light Output: 3400 lm

Aspect Ratio: 4:3

Light Source: 210W UHE Lamp

Lamp Life Normal Eco: 6000 hours 12000 hours

Fan Noise Normal Eco: 37dB 28dB

Start Up Time: Up to 6 seconds Warm Up 30 seconds

Cool Down: Instant Off

Direct Power On Off: Yes

DESIGN

Projected Screen Size: 30 inch to 350 inch

Standard Screen Size: 60 inch at 1.76 m

Throw Ratio: 1.44 to 1.95

Lens Type: Manual Focus Digital Zoom

Zoom Ratio: 1.00 to 1.35 Digital

F Number: 1.44

Focal Length: 16.70 mm

Dimension W x H x D: 302 x 87 x 249 mm

Weight: Approx 2.7 kg

CONNECTIVITY

USB Interface: USB Type B for Firmware Update and OSD Copy

Analog Input: 2x D Sub 15 pin 1x Composite RCA

Digital Input: 1x HDMI

Control: 1x RS232C

Analog Output: 1x Monitor Out

Audio Input: 1x RCA White Red 2x Stereo Mini

Audio Output: 1x Stereo Mini

OPERATING CONDITION

Operating Temperature Low Altitude: 5 to 40 C

Operating Temperature High Altitude: 5 to 35 C

Operating Humidity: 20 to 80 Percent No Condensation

Operating Altitude: 0 to 3048 m

POWER

Power Supply: 100 to 240 V AC 50 60 Hz

Power Consumption Normal Eco: 327W 225W

Energy Saving Mode: 0.3W

MAINTENANCE

Air Filter Maintenance Cycle: 6000 12000 hours
