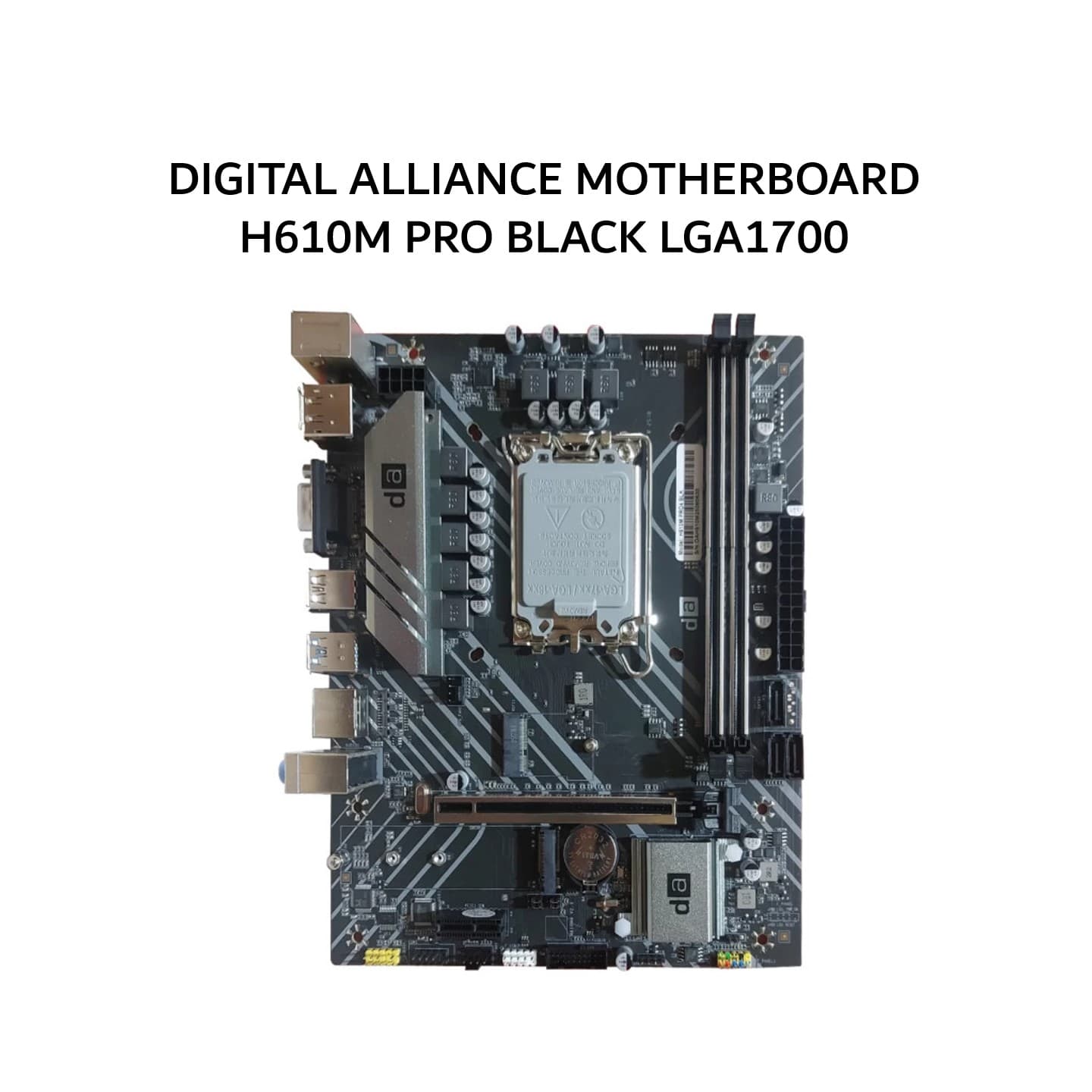

DIGITAL ALLIANCE MOTHERBOARD H610M PRO BLACK LGA1700 (GEN 12-14)

DIGITAL ALLIANCE MOTHERBOARD H610M PRO BLACK LGA1700 (GEN 12-14)

Motherboard H610M4 v2.1 / 2.01 – Intel H610 – LGA1700 – Micro ATX – Garansi Resmi

Spesifikasi Produk:

- Model: H610M4 v2.1 / 2.01

- CPU Support: Intel 12th, 13th, 14th Gen LGA1700 series

- Chipset: Intel H610

- Memory: 2 × DDR4 DIMM slots, up to 64GB, 2133/2400/2800/3200 MHz

- Storage:

- 1 × M.2 (NVMe/NGFF) 3.0 x4

- 3 × SATA 3.0 (6Gb/s)

- Optional: 4 × SATA 3.0

- Graphics:

- 1 × PCI-E 4.0 16X slot

- 1 × HDMI, 1 × VGA, 1 × DisplayPort (Optional: 1 × HDMI, 1 × DP)

- Expansion Slots: 1 × PCI-E 4.0 16X, 1 × PCI-E 1X

- USB: 4 × USB 3.2, 4 × USB 2.0

- Audio: Realtek ALC HD independent audio

- LAN: 1 × Realtek 1000M LAN, 1 × M.2 WiFi

- Power: 1 × 24-Pin ATX PWR, 1 × 8-Pin ATX12V

Back Panel I/O Ports:

- 1 × PS/2 (keyboard/mouse)

- 1 × HDMI/DP

- 1 × VGA

- 2 × USB 2.0

- 2 × USB 3.2

- 1 × RJ45 (LAN)

- 3 × Audio Jack

Internal I/O Ports:

- 1 × F_AUDIO

- 1 × USB30_1 (spread to 2 × USB 3.2)

- 1 × F_USB2.0 (spread to 2 × USB 2.0)

- 1 × JCMOS

- 1 × CPU_FAN

- 1 × COM232

- 1 × SPK

Operating Environment:

- Temperature: -20°C ~ 60°C

- Humidity: 0–95% relative humidity, non-condensation

Form Factor:

- Micro ATX, 220mm × 180mm (W × L)

3 Years Warranty
