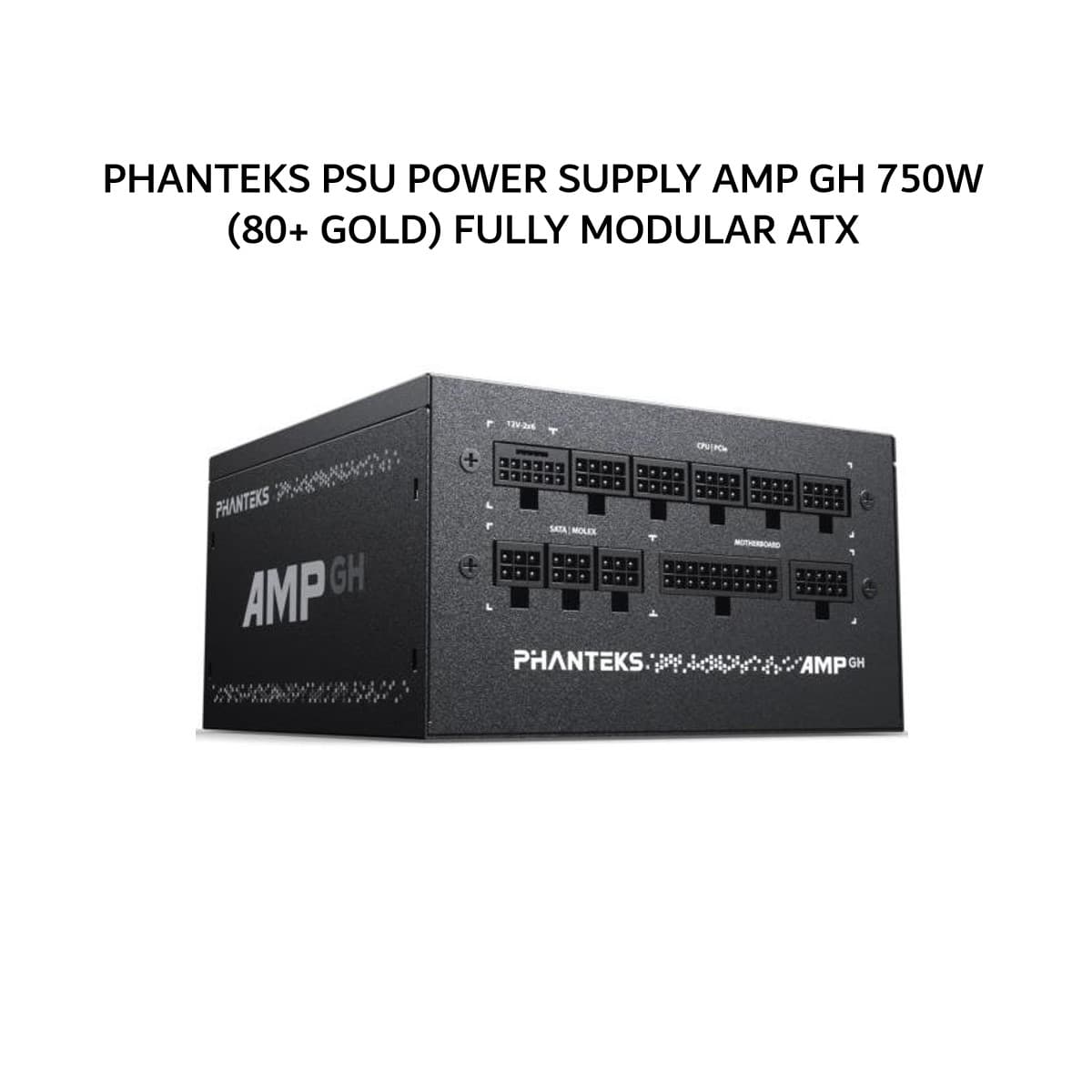

PHANTEKS PSU POWER SUPPLY AMP GH 750W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.1 BLACK 8Y

PHANTEKS PSU POWER SUPPLY AMP GH 750W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.1 BLACK 8Y

AMP GH

Fully Modular Power Supply |

Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.

With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2×6 connector delivers up to 450W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.

Specifications

General

Model No. PH-P750GH_BK01

Materials Steel | ABS plastic

Color Black

Dimensions Length x Width x Height 140 x 150 x 86 mm

Power Output 750 Watt

PCIe Gen5 Output 450 Watt

80 Plus Gold

Technical Details

Cooling Fan 120 mm Hydraulic bearing fan

Back Plate Fully Modular

MTFB > 100.000 hrs at 25˚C (Excluding DC fan)

Platform Intel ATX 3.1 | PCIe Gen5.1

Power Supply Output Connectors

1x Mainboard → 18+10 Pin

5x CPU | PCIe → 8 Pin

3x SATA | Molex → 6 Pin

1x 12V-2×6 → PCIe

Output Protection

OPP (Overpower Protection)

OVP (Over Voltage Protection)

UVP (Under voltage protection)

SCP (Short Circuit Protection)

OCP (Over Current Protection)

OTP (Over Temperature Protection)

No-Load Protection

Reset Protection

DC Output Ratings

Output Voltage 12V 5V 3.3V -12V 5VSB

Maximum Output 62A 20A 20A 0.3A 2.5A

Maximum Capacity 744W 100W 3.6W 12.5W

DC Output 750W

AC Output 100-240V ~ 10A 50-60Hz

Extra

Net Weight 1.40 kg

Gross Weight 3.20 kg

Warranty 8 Years limited

Scope of Delivery

1x AMD GH power supply unit

1x C13 Power cord 1500 mm

Cables

Textured

1x 18+10-Pin Mainboard 610 mm

2x 4+4-Pin CPU 650 mm

3x 6+2-Pin PCI-E 750 mm

1x 12V-2×6 720 mm

2x 6-Pin 4-SATA 450 – 150 | 150 | 150 mm

1x 6-Pin 2-SATA + 2-Molex 450 – 150 | 150 | 150 mm

Accessory Box

1x PSU bag

1x PSU tester

1x Zip tie bag

1x Screw pack

1x Velcro pack

1x Installation guide
