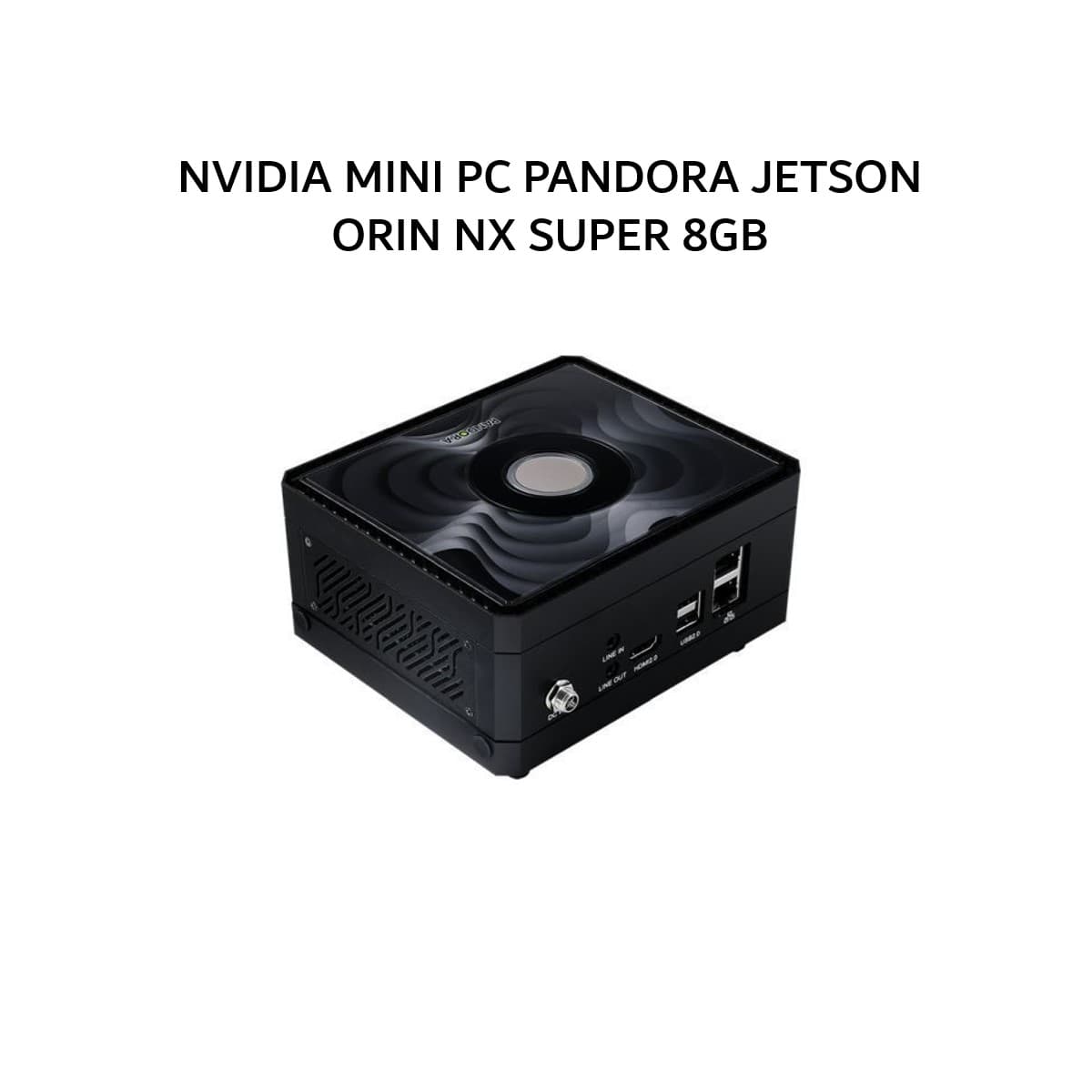

NVIDIA MINI PC PANDORA JETSON ORIN NX SUPER 8GB

NVIDIA MINI PC PANDORA JETSON ORIN NX SUPER 8GB

Specification

#Hide#Fully Built / Barebone: Fully Built

Tower / Small Form Factor: Small Form Factor

Processor: Arm Cortex-A78AE (6-Core)

Processor Details: 6-Core v8.2 64-Bit CPU

1.5MB L2 + 4MB L3

Graphics: 1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores

#Hide#Processor: Arm Cortex-A78AE

Memory: 8GB

Memory Details: 128-bit LPDDR5

Total 102.4 GB/s bandwidth

Hard Drive: None

SSD Drive: 128GB SSD

Drive Details: M.2 2280 PCIe Gen4

Optical Drive: None

Supported Drives: "1 x M.2 2280 PCIe Gen4x2 Slot (Pre-Installed 128GB SSD)

1 x M.2 2280/3080 PCIe Gen4x4, Support SSD or Video Capture Cards"

Operating System: Ubuntu

Front/Top I/O: 1 x HDMI 2.0

2 x GB LAN DHCP Client

2 x USB3.2 Gen2 Type-A

1 x USB3.2 Gen2 Type-C (OTG)

2 x USB 2.0 Type-A

1 x Line In (3.5mm Phone Jack)

1 x Line Out (3.5mm Phone Jack)

LAN: GB LAN (x2)

Wireless: "1 x M.2 2230 E Key PCIe Gen4x1+USB2.0 , Support WiFi Module.

1 x M.2 3042/3052 B Key USB3.2 Gen1, Support 5G/4G Wireless Module"

Expansion: 1 x Nano SIM Card Slot

8-Lane MIPI CSI-2

40 Pin Header:

1 x I2S

2 x I2C

2 x SPI

1 x UART

3 x GPIO

14 Pin Header:

1 x CAN Bus

1 x UART with CTS/RTS

1 x UART for Debug

Power Unit: DC input:12~36V

Keyboard and Mouse: No

Dimensions: 145 x 123 x 66 mm

Main Board: 115 x 115 mm

Additional Features: NVIDIA Jetson Orin NX Super Ready

AI Performance: 117 / 58 TOPS (Sparse / Dense)

Supports External NVMe

JetPack: 6.2 or Higher

Operating Temperature: Standard Version: 0~60°C with Airflow

Storage Temperature: -20~80°C

See Overview for more details

Package Weight: 1.900 kg

Package Type: Retail

Warranty: 2 Year Repair Warranty
