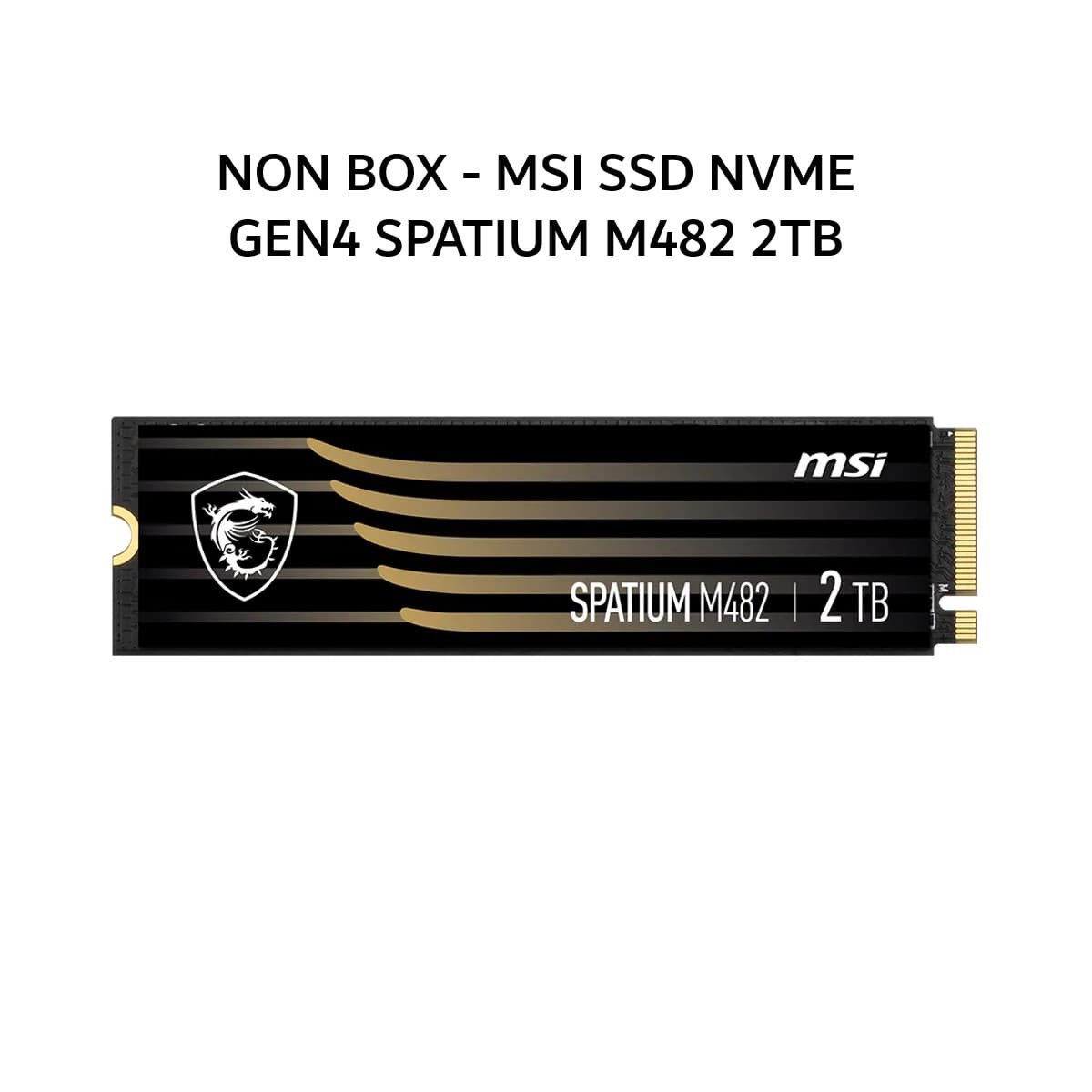

NON BOX - MSI SSD NVME GEN4 SPATIUM M482 2TB PCIE 4.0 M.2 2280 5Y - UP TO 7300 MB/S

NON BOX - MSI SSD NVME GEN4 SPATIUM M482 2TB PCIE 4.0 M.2 2280 5Y - UP TO 7300 MB/S

Differences are marked in red

SPATIUM M482 PCIe 4.0 NVMe M.2 2TB NON BOX

Model Name SPATIUM M482 PCIe 4.0 NVMe M.2

Capacity 2TB

Controller PHISON E27T

Flash Memory 3D NAND

Form Factor M.2 2280

Interface PCIe Gen4 x4, NVMe 1.4

Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s) 7200 7300

Sequential Write up to (MB/s) 6100 6400

Random Read 4KB up to (IOPS) 1,000,000

Random Write 4KB up to (IOPS) 850,000 950,000

Maximum Operating Power (W) 5.6 5.7

Idle Power PS3 (mW) 50

Low Power L1.2 (mW) 5

Operating Temperatures 0°C – 70°C

Storage Temperatures -40°C – 85°C

Terabytes Written (TBW) 600 1200

Mean Time Between Failure (MTBF) Up to 1,500,000 Hours

Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

Pyrite (Encryption, Data Security)
