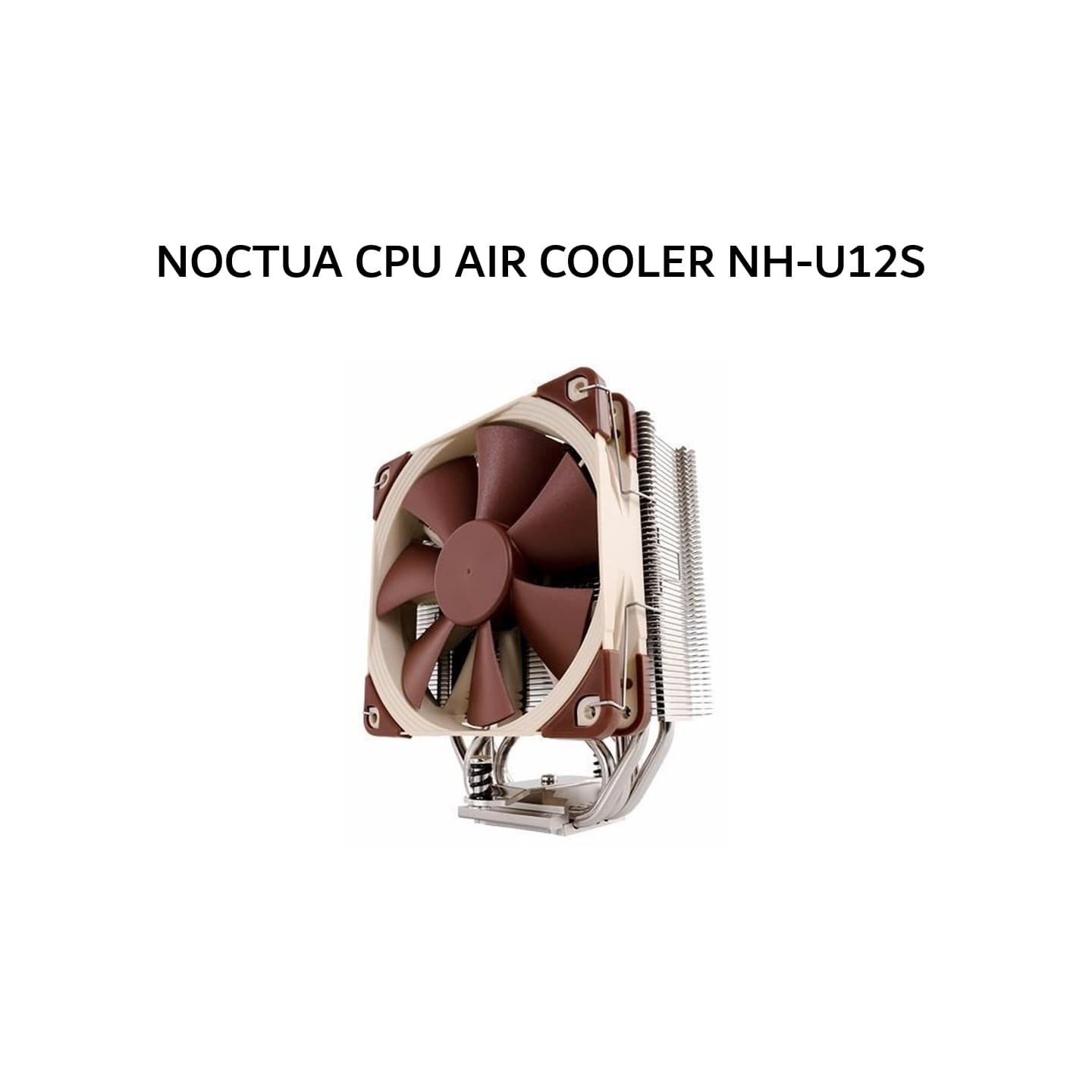

NOCTUA CPU AIR COOLER NH-U12S (1X 120MM NF-F12 PWM FAN + 5 HEATPIPES) BROWN 6Y

NOCTUA CPU AIR COOLER NH-U12S (1X 120MM NF-F12 PWM FAN + 5 HEATPIPES) BROWN 6Y

Cooler Specification

Socket compatibility

Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

(Current socket compatibility applies to all coolers purchased since Q1 2022. For older coolers, please refer to this chart.)

Height (without fan)

158 mm

Width (without fan)

125 mm

Depth (without fan)

45 mm

Height (with fan)

158 mm

Width (with fan)

125 mm

Depth (with fan)

71 mm

Weight (with fan)

755 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

129

Max. TDP

see NSPR

Fan compatibility

120x120x25

Scope of delivery

NF-F12 PWM premium fan

NA-RC6 Low-Noise Adaptor (L.N.A.)

NT-H1 high-grade thermal compound

SecuFirm2 mounting kit

Anti-vibration pads and fan-clips for second NF-F12

Noctua Metal Case-Badge

Warranty

6 Years

FAN Specification

Model

Noctua NF-F12 PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed @ 20% PWM (+/-20%)

300 RPM

Max. airflow

93,4 m³/h

Max. airflow with L.N.A.

74,3 m³/h

Max. acoustical noise

22,4 dB(A)

Max. acoustical noise with L.N.A.

18,6 dB(A)

Voltage range

12 V

MTTF

> 150.000 h
