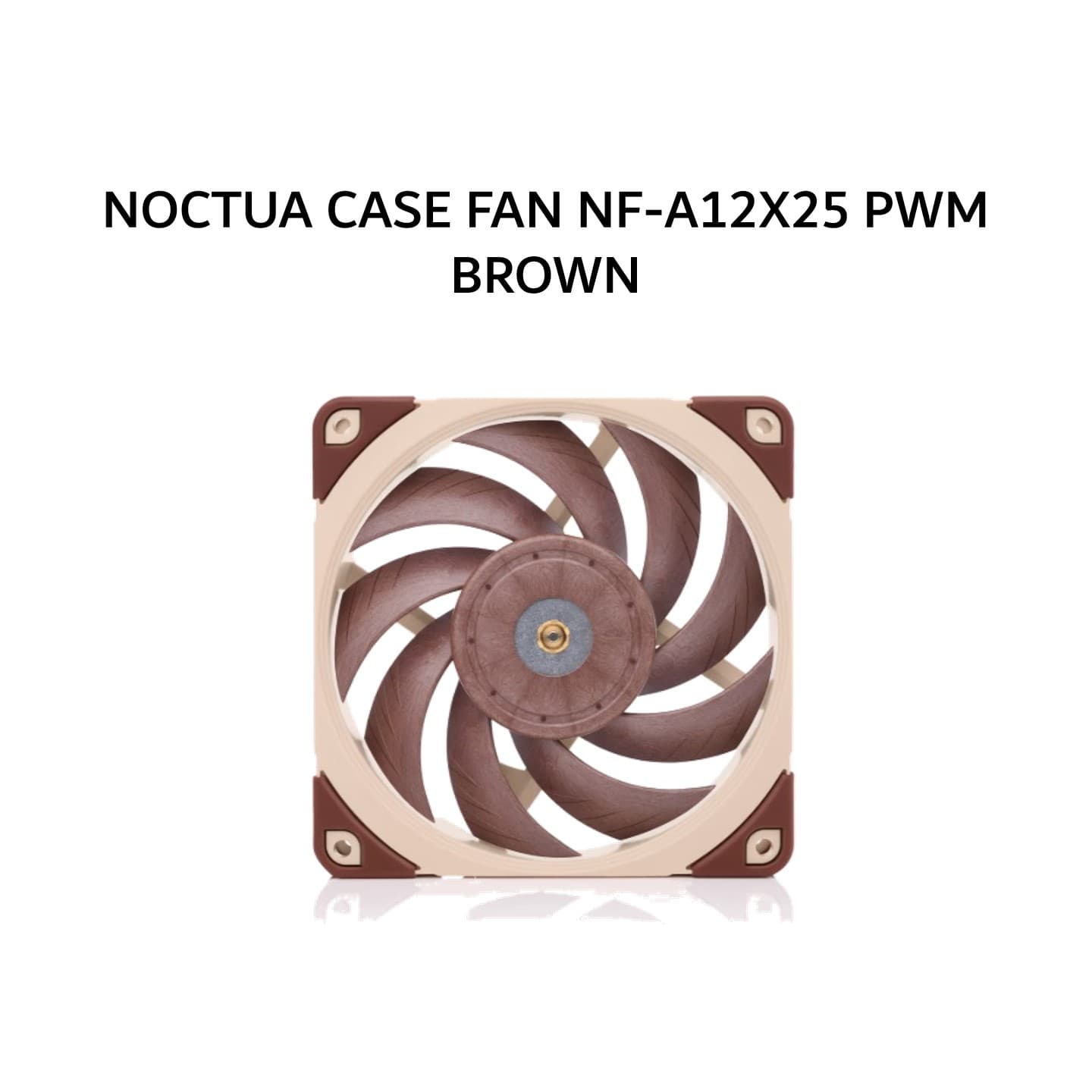

NOCTUA CASE FAN NF-A12X25 PWM (1X 120MM FAN + 450-2000RPM) BROWN 6Y

NOCTUA CASE FAN NF-A12X25 PWM (1X 120MM FAN + 450-2000RPM) BROWN 6Y

FAN Specification

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Material

Sterrox LCP

Rotational speed (+/- 10%)

2000 RPM

Rotational speed with L.N.A. (+/- 10%)

1700 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

102,1 m³/h

Airflow with L.N.A.

84,5 m³/h

Acoustical noise

22,6 dB(A)

Acoustical noise with L.N.A.

18,8 dB(A)

Static pressure

2,34 mm H₂O

Static pressure with L.N.A.

1,65 mm H₂O

Input power (typical)

1,2 W

Input power (max.)

1,68 W

Input current (typical)

0,1 A

Max. input current

0,14 A

Operating voltage

12 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

Scope of delivery

Low-Noise Adaptor (L.N.A.)

4-pin y-cable

30cm extension cable

NA-AV2 anti-vibration mounts

Anti-vibration gasket for water cooling radiators

Fan screws

Warranty

6 years
