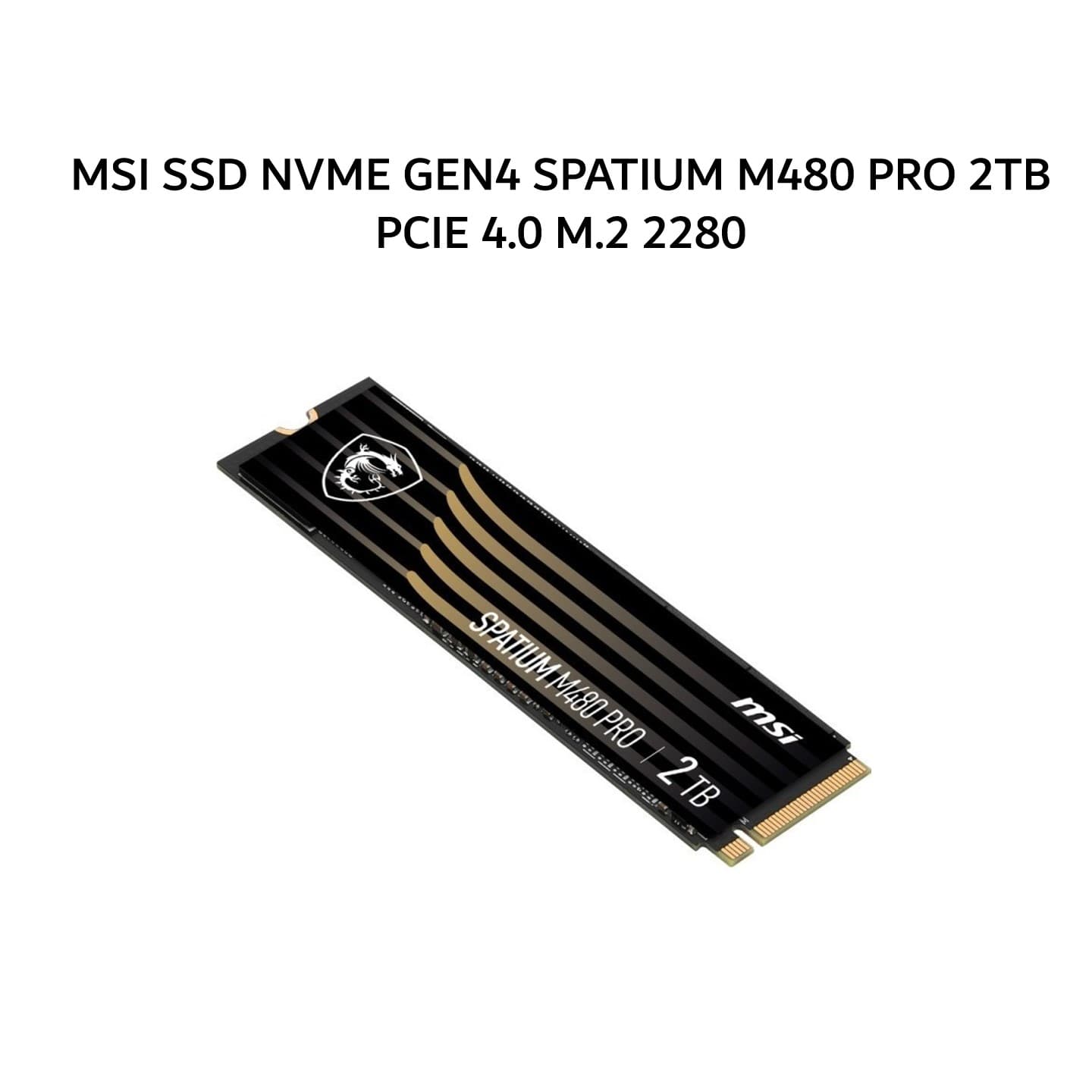

MSI SSD NVME GEN4 SPATIUM M480 PRO 2TB PCIE 4.0 M.2 2280 5Y - UP TO 7000 MB/S

MSI SSD NVME GEN4 SPATIUM M480 PRO 2TB PCIE 4.0 M.2 2280 5Y - UP TO 7000 MB/S

M480 PRO PCIe 4.0 NVMe M.2

PCIe Gen4x4 interface and complies with the NVMe 1.4 standard

Sequential Read speeds up to 7400MB/s and Write speeds up to 7000MB/s

Up to 3000 TBW

Built-in data security and error-correction capabilities

1TB to 4TB capacities in M.2 2280 form factor

Suitable for both desktop and notebook

5-Year Warranty

M480 PRO

CHARGING AHEAD WITH SPEED

From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

PRO Performance Realized

Delivering the ultimate PRO performance for PCIe 4.0, the M480 PRO boasts up to 60% faster random read/write speeds, enabling a supremely responsive experience in gameplay and productivity under heavy workloads.

Model Name M480 PRO PCIe 4.0 NVMe M.2

Capacity 2TB

Controller PHISON E18

Flash Memory 3D NAND

DRAM Cache 1GB DDR4

Form Factor M.2 2280

Interface PCIe Gen4x4, NVMe 1.4

Compatibility PCIe Gen4/ Gen3 / Gen2 / Gen1

Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s) 7400

Sequential Write up to (MB/s) 6000

Random Read 4KB up to (IOPS) 750,000

Random Write 4KB up to (IOPS) 1,000,000

Maximum Operating Power (W) 9.5

Idle Power PS3 (mW) 40

Low Power L1.2 (mW) 3

Operating Temperatures 0°C – 70°C

Storage Temperatures -40°C – 85°C

Terabytes Written (TBW) 700

Mean Time Between Failure (MTBF) Up to 1,600,000 Hours

Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features TRIM (Performance Optimization, OS Support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

AES256/Pyrite (Encryption, Data Security)
