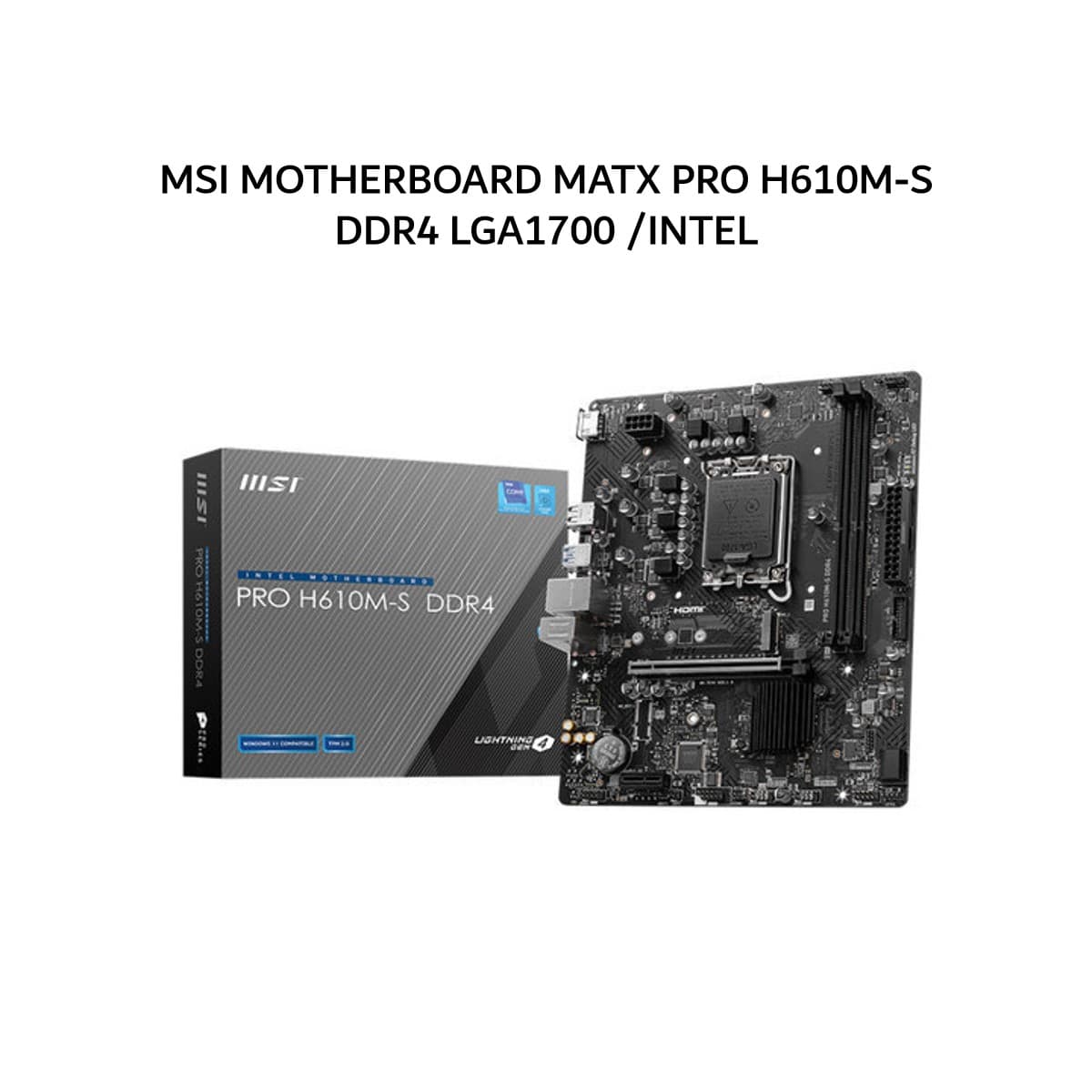

MSI MOTHERBOARD MATX PRO H610M-S DDR4 LGA1700 /INTEL 3X

MSI MOTHERBOARD MATX PRO H610M-S DDR4 LGA1700 /INTEL 3X

ChipsetINTEL H610

CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700

Memory2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics1x HDMI

Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot1x PCI-E x16 slot (Qty)

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

AudioRealtek ALC897 Codec

7.1-Channel High Definition Audio

Storage1x M.2 (Qty)

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2x SATA 6G (Qty)

USB4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LANRealtek RTL8111H Gigabit LAN

Internal IO1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

LED FEATURE4x EZ Debug LED

BACK PANEL PORTS

HDMI

USB 3.2 Gen 1 5Gbps (Type-A)

USB 2.0

LAN port

Audio Connectors

USB 2.0

OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit

BOX CONTENT

PCB InfomATX

200mmx236.16mm
