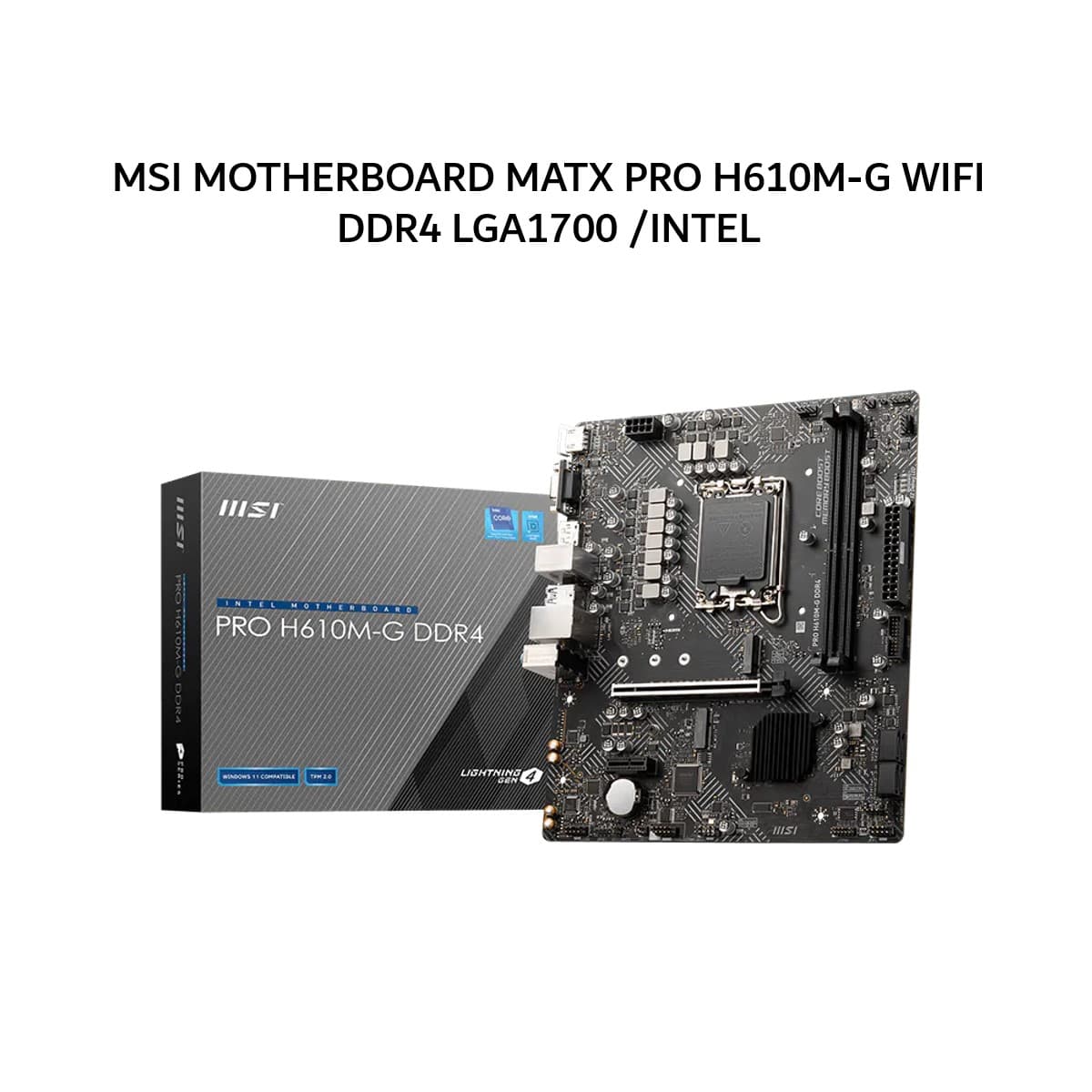

MSI MOTHERBOARD MATX PRO H610M-G WIFI DDR4 LGA1700 /INTEL

MSI MOTHERBOARD MATX PRO H610M-G WIFI DDR4 LGA1700 /INTEL 3X

SPESIFIKASI

MSI MOTHERBOARD MATX PRO H610M-G WIFI DDR4 LGA1700 INTEL

Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 3200(MAX) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0

Audio Boost: Reward your ears with studio grade sound quality

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Wireless and Bluetooth: Intel® Wi-Fi 5, Bluetooth 5.1

Processor

Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1700

Chipset

Intel® H610 Chipset

Memory

2x DDR4 memory slots, support up to 64GB

Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2

1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1

x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

SATA Ports

4x SATA 6Gb/s ports

* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD Slot

1x M.2 slot (Key M, from chipset)

Supports up to PCIe 3.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

GARANSI RESMI 3 TAHUN
