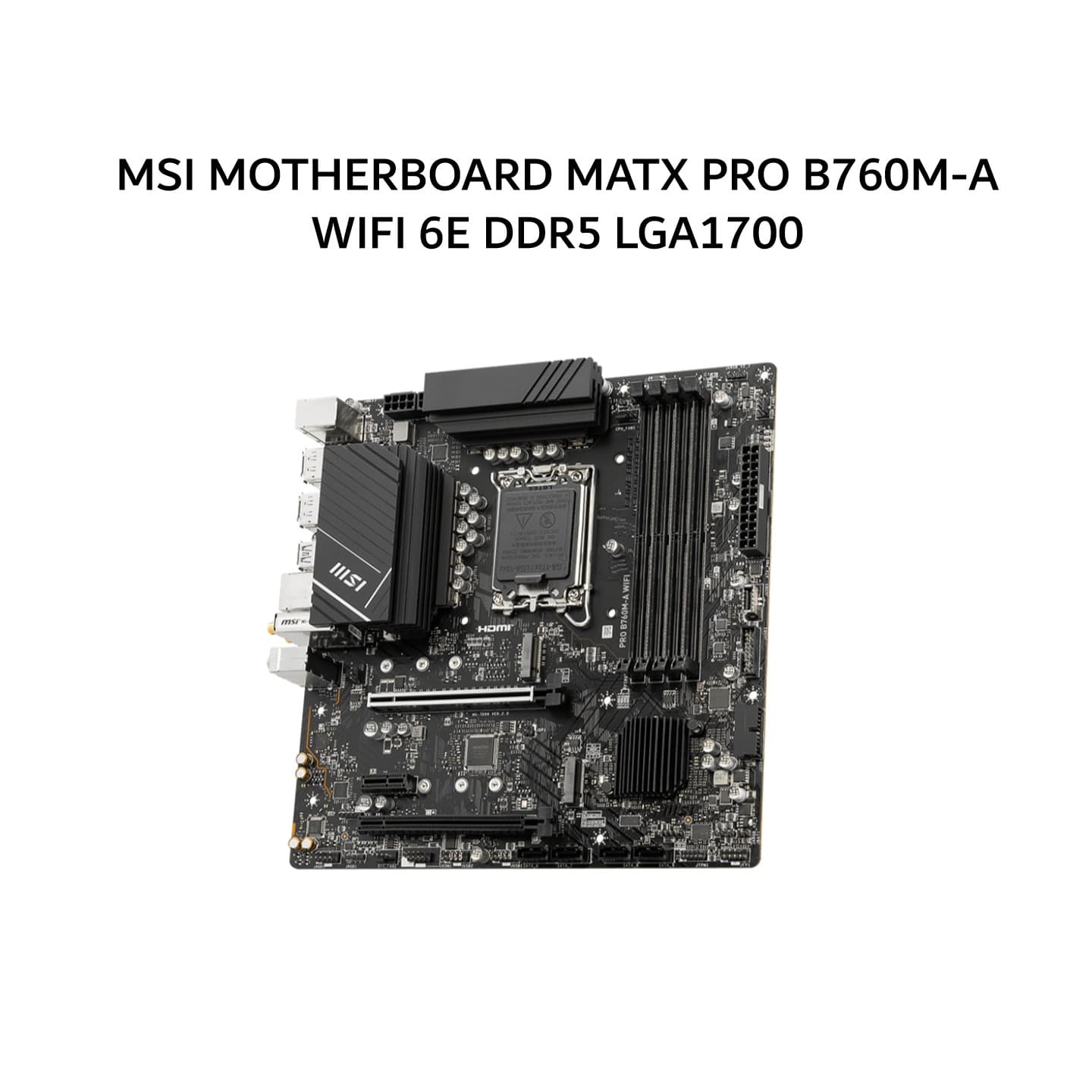

MSI MOTHERBOARD MATX PRO B760M-A WIFI 6E DDR5 LGA1700 /INTEL 3Y

MSI MOTHERBOARD MATX PRO B760M-A WIFI DDR5 LGA1700 /INTEL 3Y

Spesifikasi Utama:

- Chipset: Intel B760

- Socket: LGA1700

- CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron

- Form Factor: Micro-ATX (243.84mm x 243.84mm)

Memori:

- 4x DDR5 DIMM, kapasitas maksimal 256GB

- Kecepatan: hingga 6800+(OC) MHz

- Mendukung Intel XMP 3.0 OC

- Dual-Channel mode, non-ECC, un-buffered

Grafis Onboard:

- 2x HDMI 2.1 (4K 60Hz)

- 2x DisplayPort 1.4 (4K 60Hz)

- Output tergantung CPU dengan iGPU

Slot Ekspansi:

- 2x PCI-E x16 (Gen4 dari CPU, Gen4/Gen3 dari Chipset)

- 1x PCI-E x1 (Gen3 dari Chipset)

Audio:

- Realtek ALC897 Codec

- 7.1-Channel High Definition Audio

Penyimpanan:

- 2x M.2 (PCIe 4.0 x4 / SATA, ukuran 2280/2260/2242)

- 4x SATA 6Gb/s

- Mendukung RAID 0/1/5/10

USB:

- Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C

- Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

LAN & Wireless:

- Realtek RTL8125BG 2.5G LAN

- Intel Wi-Fi 6E (MU-MIMO, 2.4/5/6GHz, hingga 2.4Gbps)

- Bluetooth 5.3

Internal IO:

- 1x ATX_PWR, 2x CPU_PWR

- 1x CPU Fan, 1x Pump Fan, 2x System Fan

- 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x COM Port (JCOM)

- 2x Addressable V2 RGB LED, 1x RGB LED, 1x TPM 2.0 header

Fitur Tambahan:

- 4x EZ Debug LED

- Steel Armor untuk slot PCIe

- Audio Boost, Core Boost, Memory Boost

Back Panel Ports:

- Keyboard / Mouse

- DisplayPort

- HDMI

- USB 3.2 Gen1 & Gen2

- USB 2.0

- 2.5G LAN

- Wi-Fi / Bluetooth

- Audio Connectors

Operating System:

- Windows 11 64-bit

- Windows 10 64-bit
