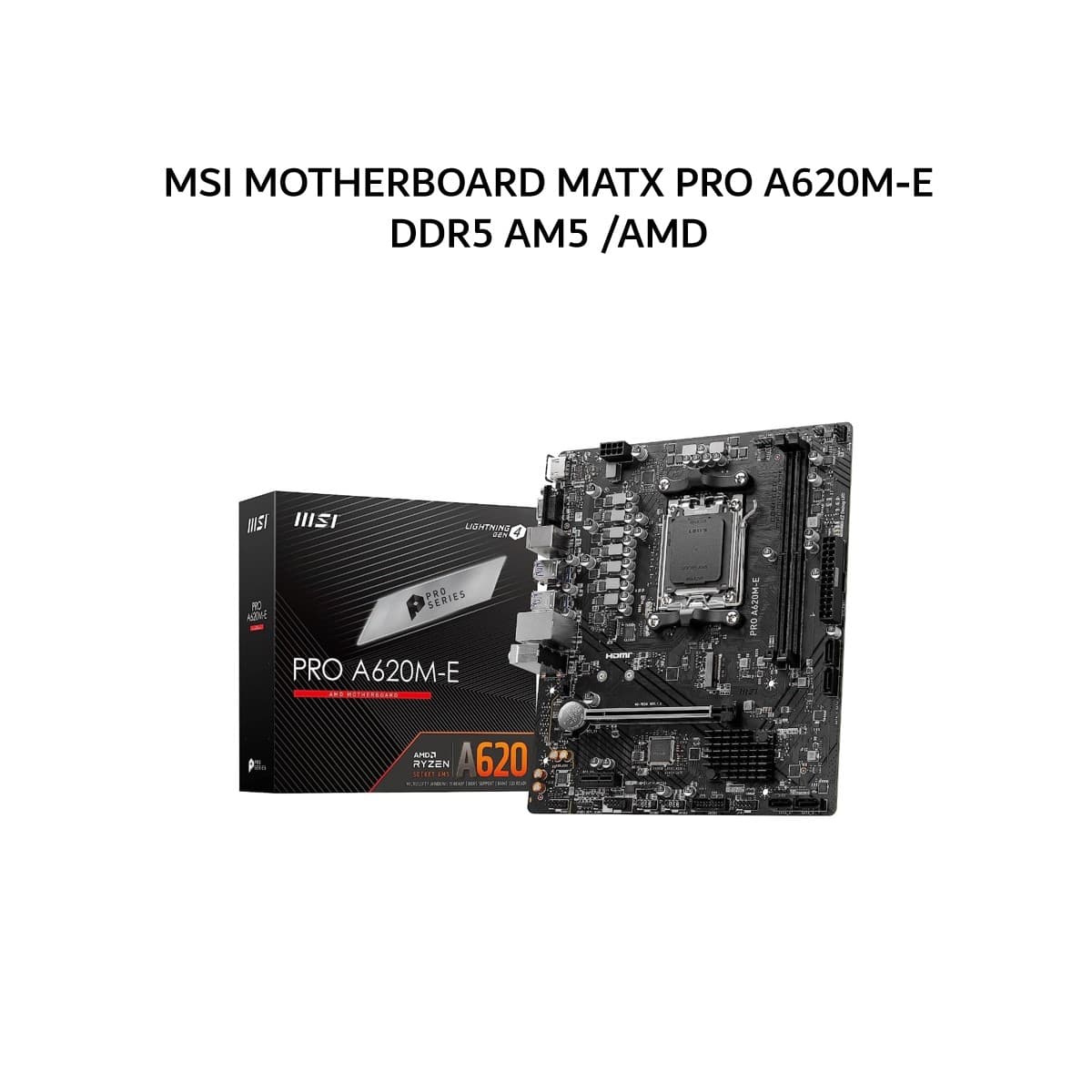

MSI MOTHERBOARD MATX PRO A620M-E DDR5 AM5 /AMD 3X

MSI MOTHERBOARD MATX PRO A620M-E AM5 /AMD

MSI MOTHERBOARD PRO A620M-E (AM5, AMD, A620, DDR5, USB3.2, SATA3)

GARANSI RESMI 3 TAHUN

- CPU SUPPORT

Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

- MEMORY

2x DDR5, Maximum Memory Capacity 96GB

Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6000+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

- Supports Dual-Channel mode

- Supports non-ECC, un-buffered memory

- Supports AMD EXPO

- ONBOARD GRAPHICS

1x HDMI™

- Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x VGA

- Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

EXPANSION SLOT

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

- STORAGE : 1x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

- RAID : Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

- USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

- LAN : Realtek® RTL8111H Gigabit LAN

- AUDIO : Realtek® ALC897 Codec

7.1-Channel High Definition Audio

- INTERNAL

I/O 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports
