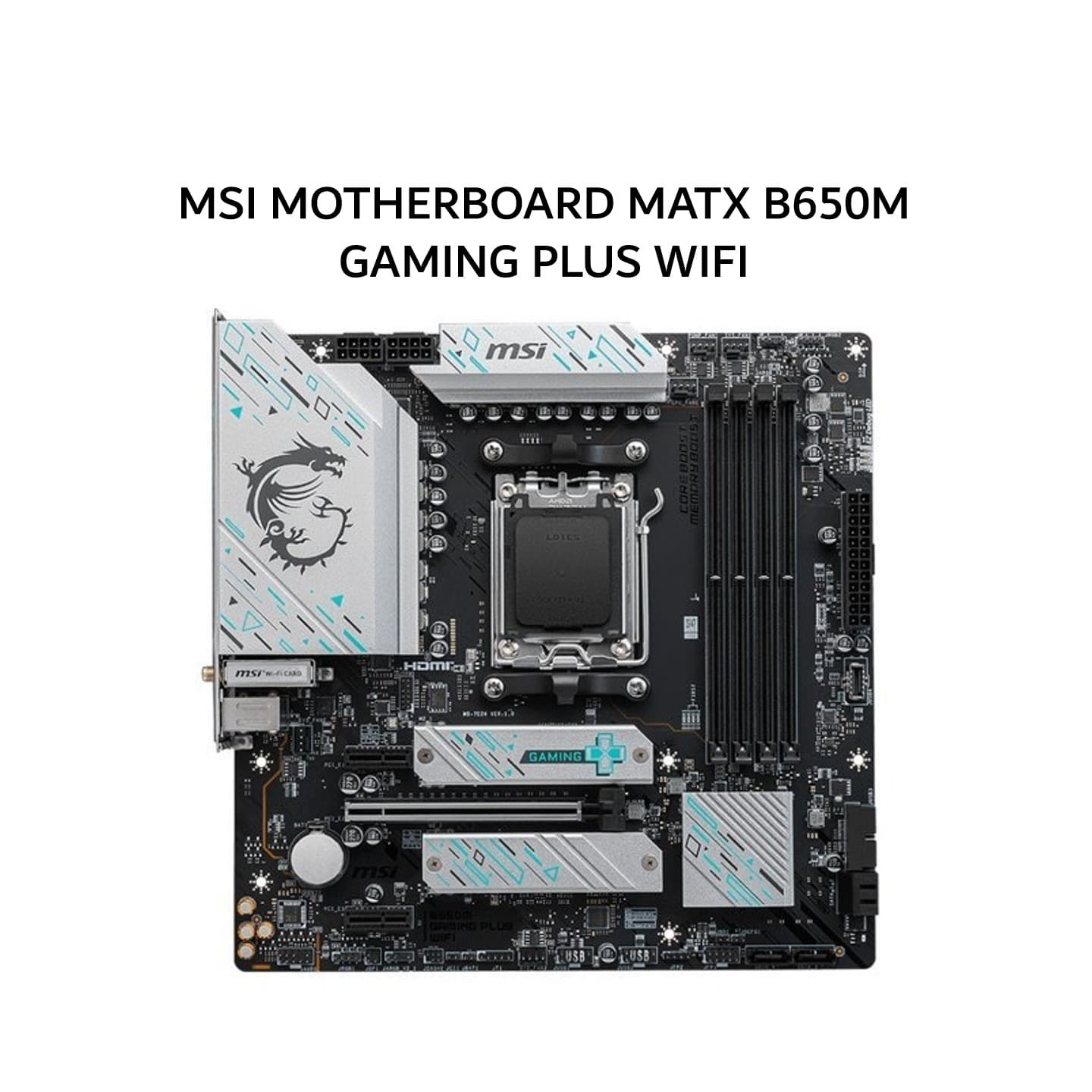

MSI MOTHERBOARD MATX B650M GAMING PLUS WIFI DDR5 AM5 /AMD 3X

MSI MOTHERBOARD MATX B650M GAMING PLUS WIFI DDR5 AM5 /AMD 3Y

CHIPSET

- AMD B650

CPU

- Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

- Socket AM5

MEMORY

- 4x DDR5 UDIMM, Maximum Memory Capacity 192GB

- Supports Dual-Channel mode

- Supports AMD EXPO™

ONBOARD GRAPHICS

- 1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

- 1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

SLOT

- 1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 7000 Series processors)

• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

• Supports x4 (For Ryzen™ 5 8500G processor)

- 2x PCI-E x1 slot

STORAGE

- 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

- 4x SATA 6G

LAN

- Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH

- AMD Wi-Fi 6E

- The Wireless module is pre-installed in the M.2 (Key-E) slot

- Supports MU-MIMO TX/RX

AUDIO

- Realtek® ALC897 Codec

- 7.1-Channel High Definition Audio

OPERATING SYSTEM

- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO

- mATX

- 243.84mmx243.84mm

GARANSI 3 TAHUN MSI MOTHERBOARD
