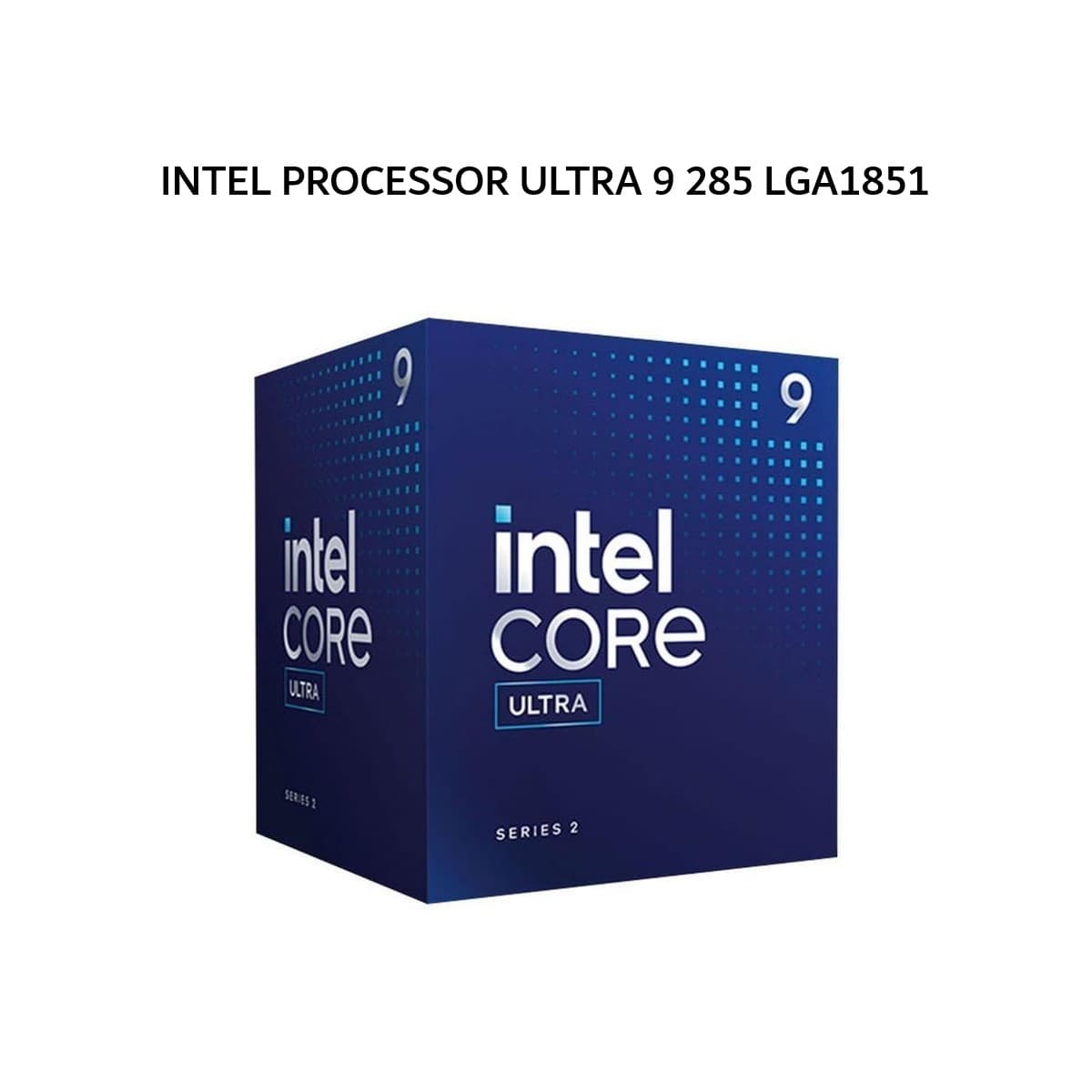

INTEL PROCESSOR ULTRA 9 285 LGA1851 3Y

INTEL PROCESSOR ULTRA 9 285 LGA1851 3Y

Spesifikasi Produk

Essentials

- Product Collection – Intel® Core™ Ultra Processors (Series 2)

- Code Name – Arrow Lake

- Segment – Desktop

- Processor Number – 285

- Overall Peak TOPS (Int8) – 36

- Recommended Price – $549–$579

CPU Specifications

- Total Cores – 24 (8 Performance + 16 Efficient)

- Total Threads – 24

- Max Turbo Frequency – 5.6 GHz

- P-core Max Turbo – 5.4 GHz / Base 2.5 GHz

- E-core Max Turbo – 4.6 GHz / Base 1.9 GHz

- Cache – 36 MB Intel® Smart Cache

- Total L2 Cache – 40 MB

- Base Power – 65W

- Max Turbo Power – 182W

- Lithography – TSMC N3B

- AI Boost – Intel® DL Boost, OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Memory

- Max Memory – 256 GB

- Memory Types – DDR5 up to 6400 MT/s

- Channels – 2

- ECC Support – Yes

GPU Specifications

- GPU – Intel® Graphics (Xe-cores: 4)

- Base Frequency – 300 MHz

- Max Dynamic Frequency – 2 GHz

- GPU Peak TOPS – 8

- Outputs – eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL

- Max Resolution – 8K @ 60Hz (HDMI/DP), 4K @ 120Hz (eDP)

- Codec Support – H.264, H.265, AV1, Intel® Quick Sync Video

- Displays Supported – 4

NPU Specifications

- NPU – Intel® AI Boost

- Peak TOPS – 13

- Sparsity Support – Yes

- Windows Studio Effects – Yes

Expansion Options

- DMI Revision – 4, 8 Lanes

- PCIe Revision – 5.0 & 4.0

- PCIe Configurations – Up to 1x16+2x4 / 2x8+2x4 / 1x8+4x4

- PCIe Lanes – 24

- Thunderbolt™ 4 – Yes

Package

- Socket – FCLGA1851

- Thermal Solution – PCG 2022C

- Max Temp – 105°C

- Package Size – 45 × 37.5 mm

Advanced Technologies

- Intel® Thread Director, Speed Shift, Turbo Boost Max 3.0, Thermal Velocity Boost

- Intel® Gaussian & Neural Accelerator 3.5

- Virtualization – VT-x, VT-d, VT-rp, EPT

- Security – Intel vPro® Enterprise, TDT, AMT, ISM, RPE, Secure Key, Boot Guard, AES-NI, Control-Flow Enforcement, Total Memory Encryption

3 Years Warranty
