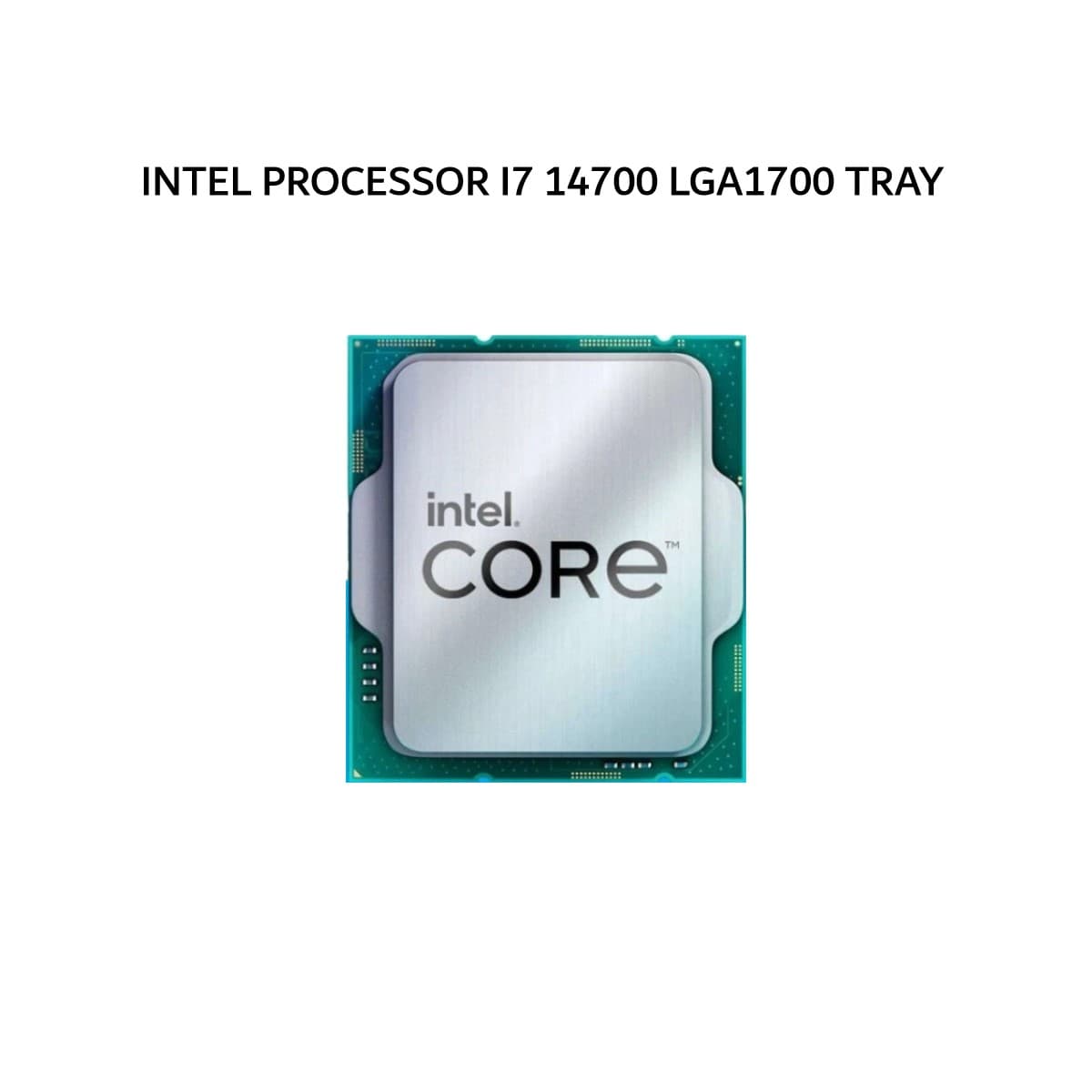

INTEL PROCESSOR I7 14700 LGA1700 1Y TRAY

INTEL PROCESSOR I7 14700 LGA1700 TRAY

CPU Specifications

Total Cores :20

of Performance-cores :8

of Efficient-cores :12

Total Threads :28

Max Turbo Frequency :5.4 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency :5.4 GHz

Performance-core Max Turbo Frequency :5.3 GHz

Efficient-core Max Turbo Frequency :4.2 GHz

Performance-core Base Frequency :2.1 GHz

Efficient-core Base Frequency

1.5 GHz

Cache :33 MB Intel® Smart Cache

Total L2 Cache :28 MB

Processor Base Power :65 W

Maximum Turbo Power :219 W

Memory Specifications

Max Memory Size (dependent on memory type) :192 GB

Memory Types

-Up to DDR5 5600 MT/s

-Up to DDR4 3200 MT/s

Max of Memory Channels :2

Max Memory Bandwidth :89.6 GB/s

ECC Memory Supported :Yes

GPU Specifications

GPU Name :Intel® UHD Graphics 770

Graphics Base Frequency :300 MHz

Graphics Max Dynamic Frequency :1.6 GHz

Graphics Output :eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units :32

Max Resolution (HDMI):4096 x 2160 @ 60Hz

Max Resolution (DP) :7680 x 4320 @ 60Hz

Package Specifications

Sockets Supported :FCLGA1700

Max CPU Configuration :1

Thermal Solution Specification :PCG 2020C

TJUNCTION :100°C

Package Size :45.0 mm x 37.5 mm

Max Operating Temperature :100 °C
