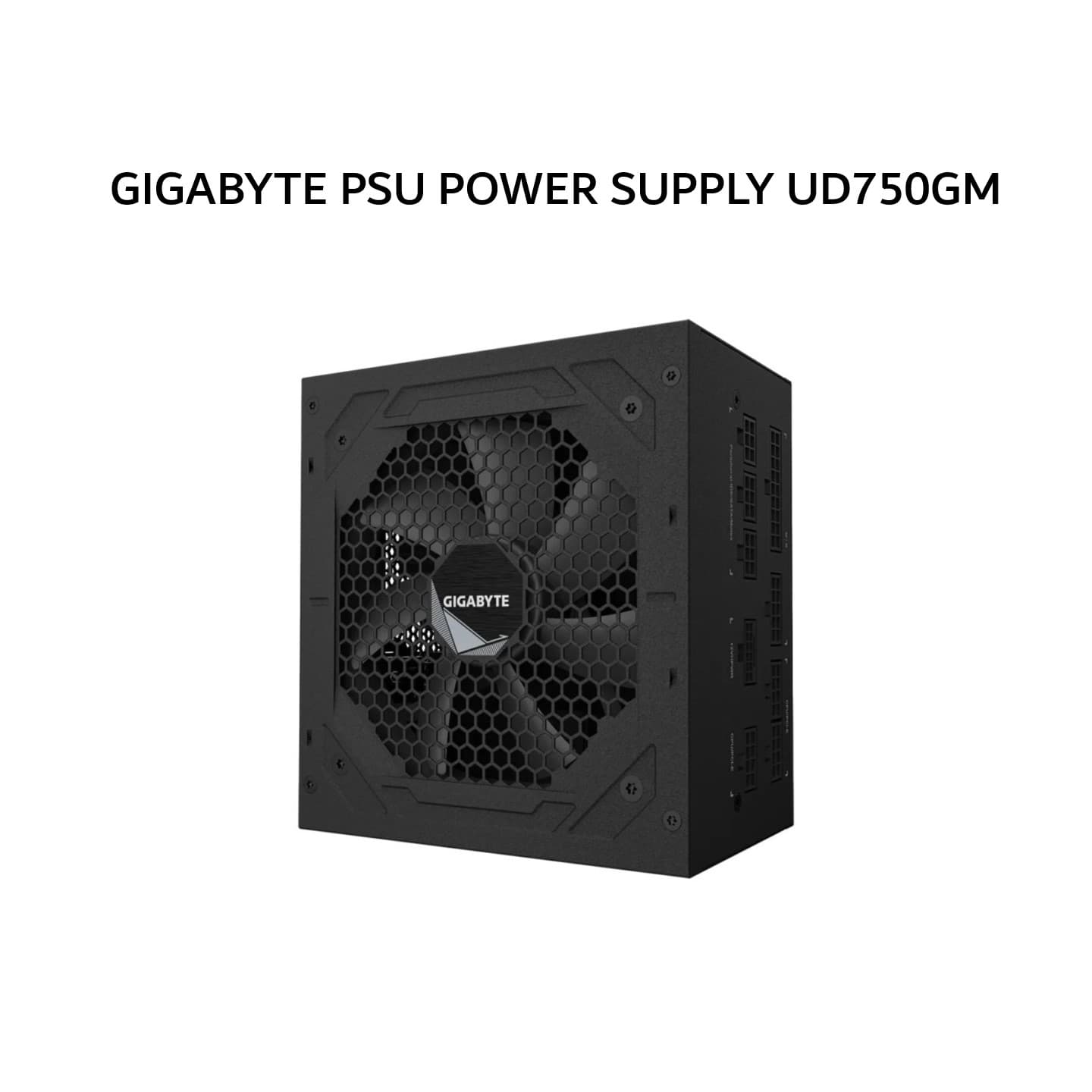

GIGABYTE PSU POWER SUPPLY UD750GM PG5 (80+ GOLD) FULLY MODULAR ATX 3.0 PCIE 5.0 BLACK 5Y

GIGABYTE PSU POWER SUPPLY UD750GM PG5 (80+ GOLD) FULLY MODULAR ATX 3.0 PCIE 5.0 BLACK 5Y

Key Features:

- Ultra Durable:

- High-quality Japanese capacitors.

- Enhanced thermal solution with a 120mm smart hydraulic bearing (HYB) fan.

- Protection features including OVP, OPP, SCP, UVP, OCP, OTP.

- Supports PCIe Gen 5.0 Graphics Cards:

- Can sustain up to 3x GPU power excursion with a native 16-pin cable.

- The cable supports up to 450 watts of power for PCIe Gen 5.0 graphics cards.

- Intel ATX 3.0 Standard Support:

- Supports up to 200% power excursion and complies with the required power supply timing standards.

- Reaches 70% low load efficiency.

Specifications:

- Model: GP-UD750GM PG5

- Type: Intel Form Factor ATX 12V v3.0

- PFC: Active PFC (>0.9 typical)

- Input Voltage: 100-240 Vac (full range)

- Input Current: 12-6A

- Input Frequency: 60-50 Hz

- Output Capacity: 750W

- Dimension: 150 x 140 x 86mm

- Fan Type: 120mm Hydraulic Bearing (HYB) fan

- 80 PLUS: Gold certified

- Efficiency: 90% at typical load

- MTBF: >100,000 hours

- Protection: OVP, OPP, SCP, UVP, OCP, OTP

- Power Good Signal: 100-150ms

- Hold Up Time: >16ms

- Cable Type: Flat, all black

Connectors:

- ATX/MB 20+4 Pin: 610mm x 1

- CPU/EPS 4+4 Pin: 600mm + 200mm x 1

- PCIe 16 Pin: 700mm x 1

- PCIe 6+2 Pin: 600mm + 150mm x 2

- SATA: 600mm + 150mm + 150mm + 150mm x 2

- 4 Pin Peripheral: 500mm + 120mm + 120mm + 150mm x 1

- 4-Pin Floppy: 120mm x 1
