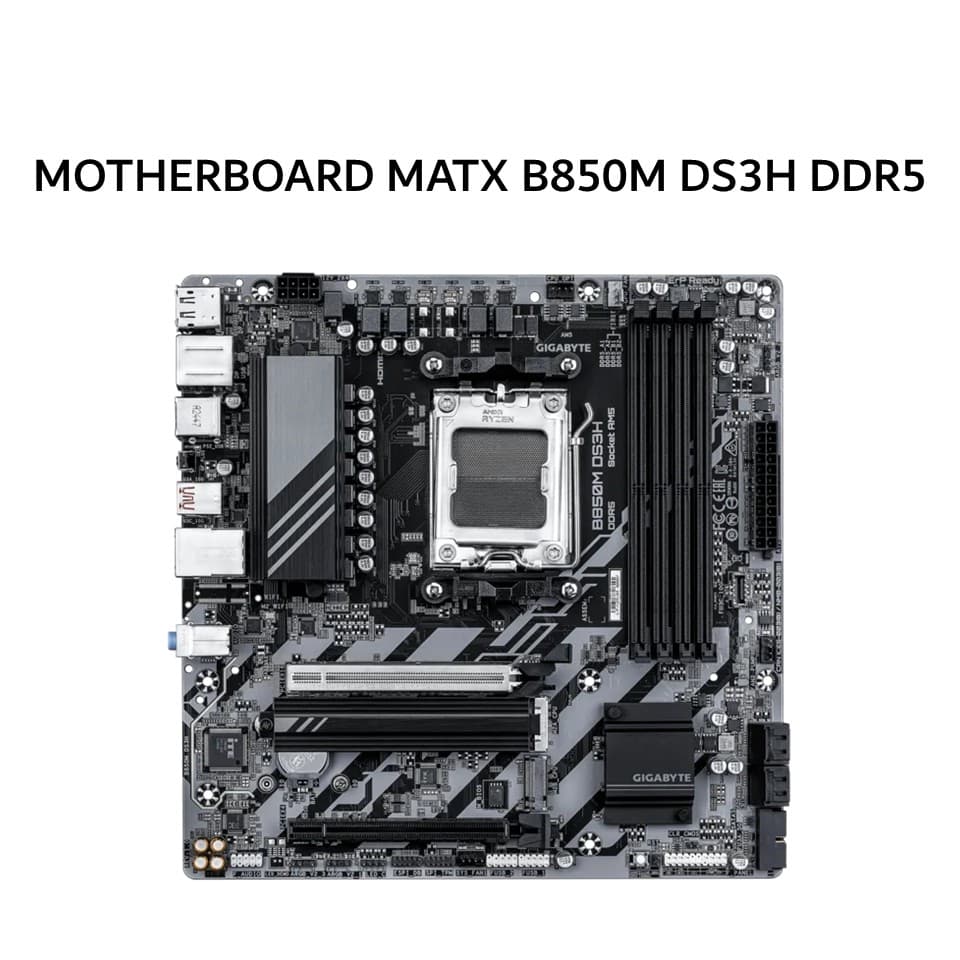

GIGABYTE MOTHERBOARD MATX B850M DS3H DDR5 AM5 /AMD 3Y

SPESIFIKASI

Processor: AMD Socket AM5, support for AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series Processors

Chipset: AMD B850

Memory: 4 x DDR5 DIMM, up to 256 GB, DDR5 8200(OC) MT/s, Dual Channel, AMD EXPO™ and XMP support

Integrated Graphics: AMD Radeon™ Graphics

Display Output:

1 x HDMI 2.1 up to 4096x2160@60Hz

2 x DisplayPort 1.4 up to 3840x2160@144Hz

Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

LAN: Realtek® 2.5GbE LAN

Expansion Slots:

1 x PCI Express x16

1 x PCI Express x16 (x4 mode)

Storage:

2 x M.2 PCIe SSD slots

4 x SATA 6Gb/s

RAID:

RAID 0, 1, 5, 10 for NVMe

RAID 0, 1, 10 for SATA

USB Ports:

1 x USB Type-C® USB 3.2 Gen 2

1 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1

4 x USB 2.0

Internal Connectors:

1 x 24-pin ATX power

1 x 8-pin CPU power

CPU fan header

CPU fan or water pump header

System fan header

System fan or water pump header

3 x Addressable RGB Gen2 headers

1 x RGB header

USB Type-C® header

USB 3.2 Gen 1 header

2 x USB 2.0 headers

Front panel header

Front audio header

Clear CMOS jumper

Rear I O Ports:

HDMI

DisplayPort

USB Type-C®

USB Type-A

RJ-45

Audio jacks

PS/2

BIOS: AMI UEFI BIOS, 256 Mbit Flash

Special Features: Q-Flash, Q-Flash Plus, GIGABYTE Control Center

Operating System: Windows 11 64-bit, Windows 10 64-bit
