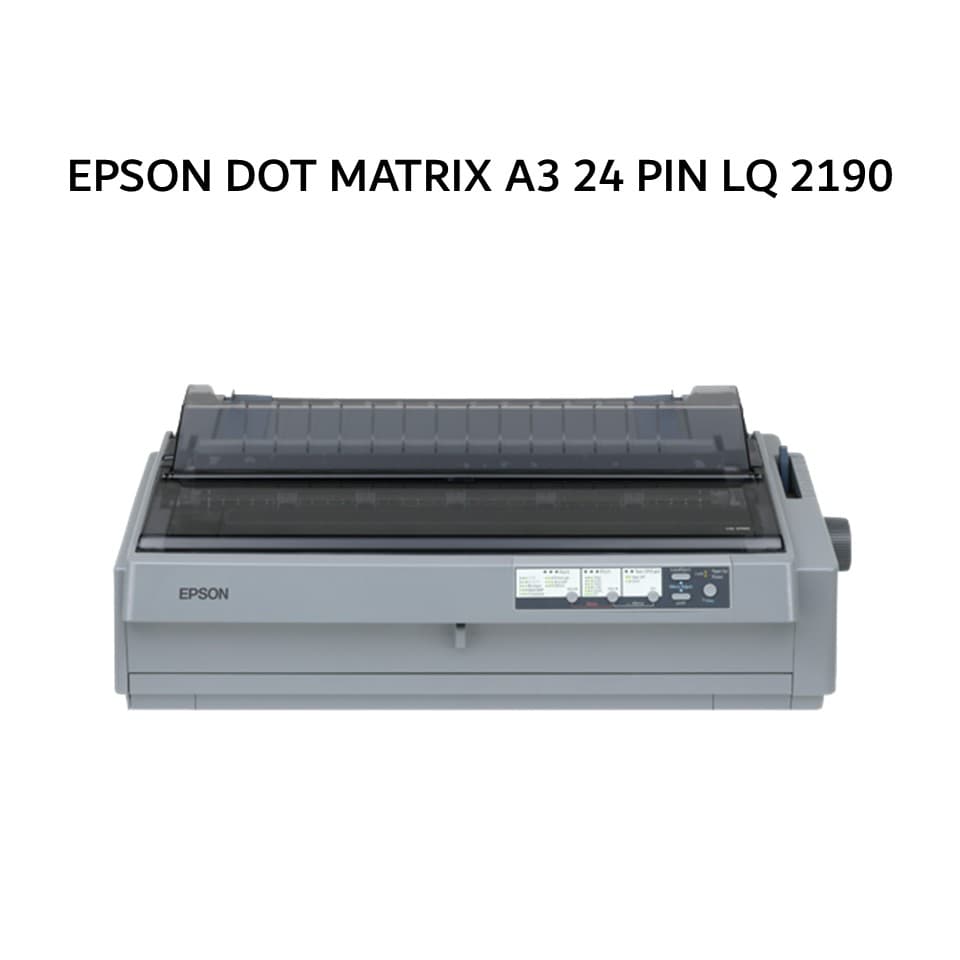

EPSON DOT MATRIX A3 24 PIN LQ 2190 2Y

SPESIFIKASI

Brand: Epson

Type: Impact Dot Matrix Printer

Printing Technology: Impact Dot Matrix

Print Method: Impact Dot Matrix

Control Panel: 6 switches and 10 LEDs on the control panel

Print Direction: Bi-directional with logic seeking

Print Head Pins: 24 pins

Control Codes: ESC/P2 and IBM PPDS emulation

Print Speed:

High Speed Draft:

10 cpi: 480 cps

12 cpi: 576 cps

Draft:

10 cpi: 360 cps

12 cpi: 432 cps

15 cpi: 540 cps

17 cpi (Condensed): 308 cps

20 cpi (Condensed): 360 cps

Letter Quality:

10 cpi: 120 cps

12 cpi: 144 cps

15 cpi: 180 cps

17 cpi (Condensed): 205 cps

20 cpi (Condensed): 240 cps

Reliability:

MVBF: 40 million lines (excluding print head)

MTBF: 20,000 Power On Hours (25% duty)

Print Head Life: 400 million strokes per wire

Character Sets:

14 international character sets and 1 legal character set

1 italic and 12 graphical character tables

Italic, PC437, PC850, PC860, PC861, PC863, PC865, BRASCII, Abicomp, Roman 8, ISO Latin 1, PC858, ISO 8859-15

Bitmap Fonts:

Epson Draft and Epson Courier 10 cpi 12 cpi 15 cpi

Epson Roman and Epson Sans Serif 10 cpi 12 cpi 15 cpi proportional

Epson Prestige 10 cpi 12 cpi

Epson Script OCR-B Orator Orator-S Epson Script C 10 cpi proportional

Scalable Fonts:

Epson Roman Sans Serif Roman T Sans Serif H

8 pt to 32 pt in 2 pt increments

Barcode Support:

EAN-13 EAN-8 Interleaved 2 of 5 UPC-A UPC-E Code 39 Code 128 POSTNET

Paper Path:

Manual Insertion: Front or Rear in Top out

Push Tractor: Front or Rear in Top out

Pull Tractor: Front Rear or Bottom in Top out

Paper Handling:

Cut Sheet Single Sheet Front Entry

Length 148 to 420 mm Width 100 to 420 mm Thickness 0.065 to 0.14 mm

Cut Sheet Single Sheet Rear Entry

Length 100 to 420 mm Width 100 to 420 mm Thickness 0.065 to 0.14 mm

Cut Sheet Multi-part Front Entry

Length 148 to 420 mm Width 100 to 420 mm Thickness 0.12 to 0.46 mm

Copies 1 original plus 5 copies

Cut Sheet Multi-part Rear Entry

Length 100 to 420 mm Width 100 to 420 mm Thickness 0.12 to 0.46 mm

Copies 1 original plus 5 copies

Envelope Thickness 0.16 to 0.52 mm

Envelope No.6 Rear Entry

Length 92 mm Width 165 mm Thickness 0.16 to 0.52 mm

Envelope No.10 Rear Entry

Length 105 mm Width 241 mm Thickness 0.16 to 0.52 mm

Continuous Paper Single Sheet

Front Rear Bottom Entry

Length 101.6 to 558.8 mm Width 101.6 to 406.4 mm Thickness 0.065 to 0.46 mm

Copies 1 original plus 5 copies

Continuous Paper Multi-part

Front Rear Bottom Entry

Length 101.6 to 558.8 mm Width 101.6 to 406.4 mm Thickness 0.065 to 0.46 mm

Copies 1 original plus 5 copies

Labels Base Sheet

Bottom Entry

Length 101.6 to 558.8 mm Width 101.6 to 406.4 mm Thickness 0.16 to 0.19 mm

Card Media

Front Rear Entry

Length 148 to 200 mm Width 100 to 200 mm Thickness 0.22 mm

Roll Paper Rear Entry

Diameter 127 mm Width 216 mm Thickness 0.07 to 0.09 mm

Line Spacing:

4.23 mm or programmable in 0.0706 mm increments

Buffer Memory: 128 KB

Supported Operating Systems:

Microsoft Windows 2000 XP Vista 7 8 8.1 10

Utilities:

Epson Status Monitor 3

Epson Printer Setting

Connectivity Interface:

Bi-directional Parallel IEEE-1284

USB 2.0 Full Speed Type B

Type B Interface Level 2 Option

Noise Level: 54 dB

Dimensions: 639 x 402 x 256 mm

Weight: 13 kg

Consumables:

Black Ribbon Cartridge Approx. 15 million characters C13S015531

Optional Accessories:

EpsonNet 10/100 Base TX Internal Printer Server C12C824352

Pull Tractor Unit C12C800322

Serial Interface Card No Buffer Type B C824432

Operating Environment:

Operating Temperature 5 to 35°C

Operating Humidity 10 to 80% RH
