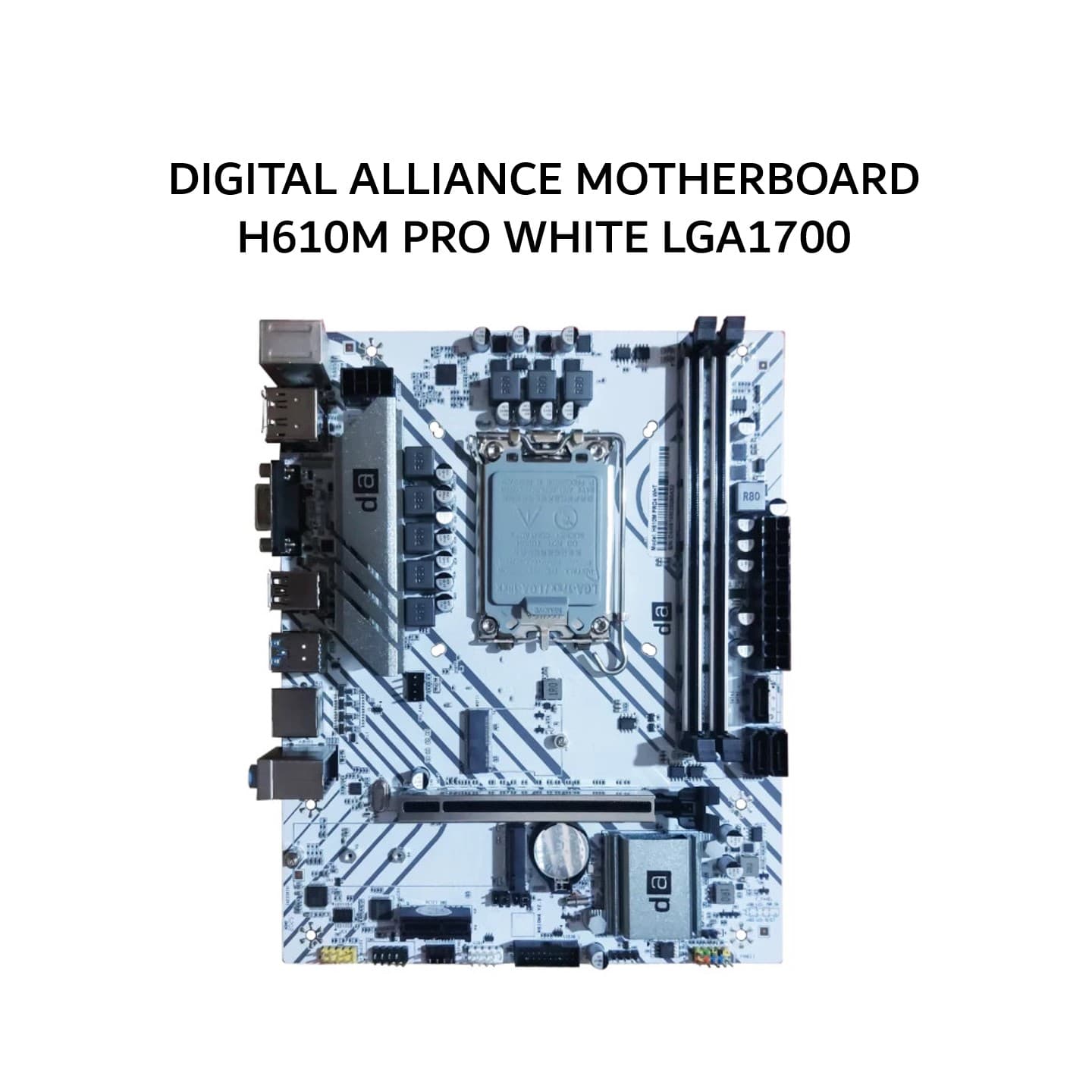

DIGITAL ALLIANCE MOTHERBOARD H610M PRO WHITE LGA1700 (GEN 12-14)

DIGITAL ALLIANCE MOTHERBOARD H610M PRO WHITE LGA1700 (GEN 12-14)

H610M4 v2.1 / 2.01 – Micro ATX – LGA1700 – DDR4 – HDMI/DP/VGA – M.2 NVMe

Spesifikasi Utama:

- Model: H610M4 v2.1 / 2.01

- CPU Support: Intel 12th / 13th / 14th Gen LGA1700 series

- Chipset: Intel H610

- Form Factor: Micro ATX (220 × 180 mm)

Memori:

- 2x DDR4 DIMM slots, hingga 64 GB

- Kecepatan: 2133 / 2400 / 2800 / 3200 MHz

- Dual channel architecture

Storage:

- 1x M.2 (NVMe/NGFF) PCIe 3.0 x4

- 3x SATA 3.0 (6Gb/s)

- Opsional: 4x SATA 3.0

Grafis & Slot Ekspansi:

- 1x PCI-E 4.0 x16 slot

- 1x PCI-E x1 slot

- Output: HDMI, VGA, DisplayPort (opsional: HDMI + DP)

USB:

- 4x USB 3.2

- 4x USB 2.0

Audio & LAN:

- Realtek ALC HD independent audio

- Realtek 1000M LAN (1 Gbps)

- 1x M.2 WiFi slot

Power:

- 24-pin ATX main power

- 8-pin ATX12V

Back Panel I/O:

- 1x PS/2 (keyboard/mouse)

- 1x HDMI/DP

- 1x VGA

- 2x USB 2.0

- 2x USB 3.2

- 1x RJ45 LAN

- 3x Audio jacks

Internal I/O:

- 1x Front Audio (F_AUDIO)

- 1x USB 3.2 header (2 port)

- 1x USB 2.0 header (2 port)

- 1x JCMOS

- 1x CPU_FAN

- 1x COM232

- 1x Speaker (SPK)

Operating Environment:

- Temperatur: -20°C ~ 60°C

- Humidity: 0–95% non-condensation

Garansi Resmi
