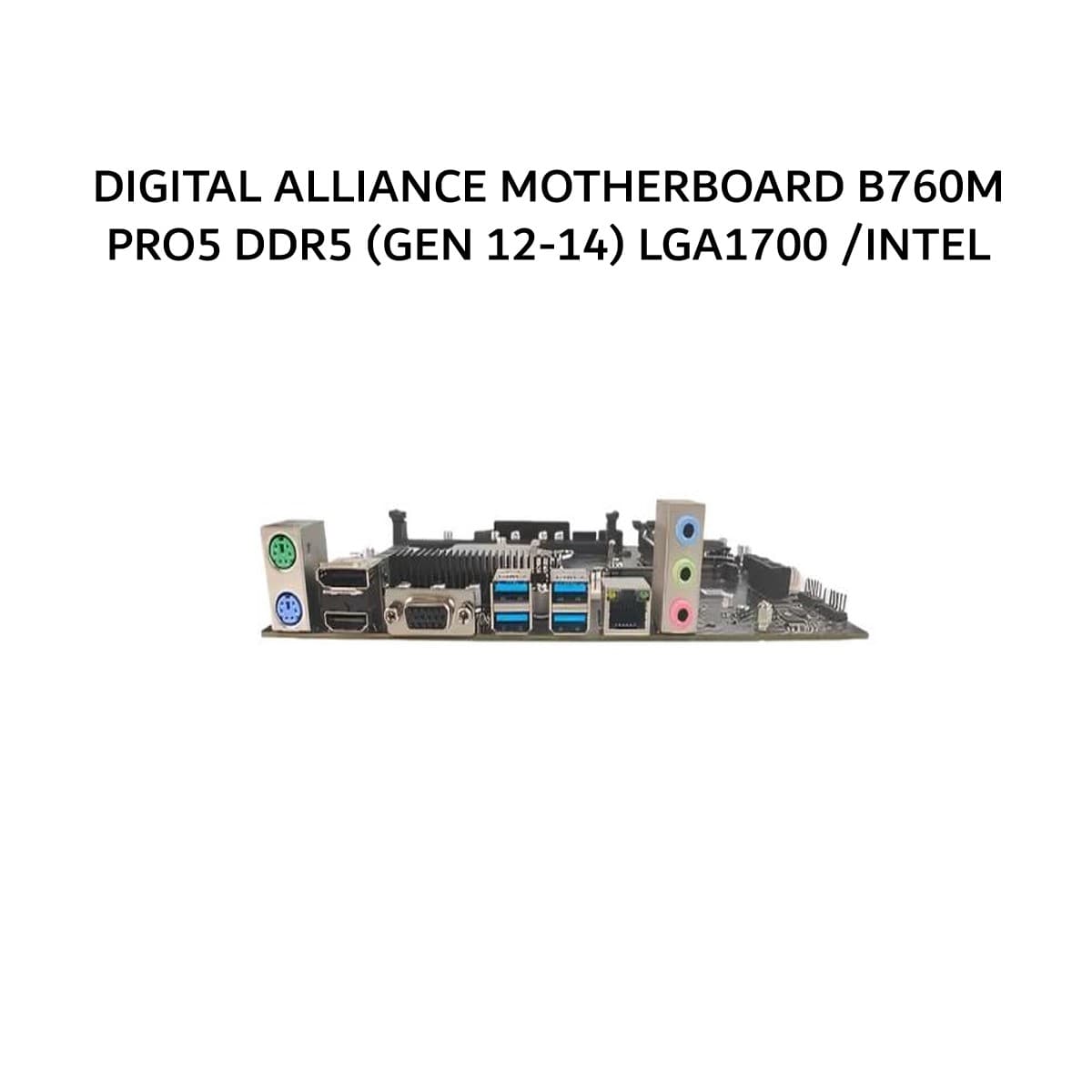

DIGITAL ALLIANCE MOTHERBOARD B760M PRO5 DDR5 (GEN 12-14) LGA1700 /INTEL 2Y

DIGITAL ALLIANCE MOTHERBOARD B760M PRO5 DDR5 (GEN 12-14) 2Y

Digital Alliance B760M PRO5 DDR5 (Gen 12–14)—motherboard Micro-ATX yang mendukung DDR5 dan prosesor Intel terbaru:

Spesifikasi Strip

Socket: Intel LGA1700

Chipset: Intel B760

CPU Support: Intel Core Gen 12, Gen 13, Gen 14; Pentium Gold; Celeron

Form Factor: Micro-ATX (18cm x 22cm)

Memori

2x DDR5 DIMM slots

Dual Channel

Max 128GB

Support up to 6800MHz (OC)

Storage & Expansion

2x M.2 Gen4 x4

1x NVMe only

1x NVMe/NGFF

3x SATA III (6Gb/s)

1x PCIe 4.0 x16

1x PCIe 3.0 x1

Grafis & Audio

1x HDMI 2.1 (4K@60Hz)

1x DisplayPort 1.4 (4K@60Hz)

1x VGA

Audio: Realtek ALC897, 7.1 Channel HD

Konektivitas

LAN: Realtek 8111H, 10/100/1000 Mbps

USB:

2x USB 3.2 Gen1 (5Gbps)

2x USB 3.2 Gen2 (10Gbps)

2x USB 3.0

2x USB 2.0

Headers for USB 2.0 & 3.0

Power & Header

1x 24-pin ATX

1x 8-pin CPU

CPU_FAN, SYS_FAN

Front Panel, Audio, COM, Clear CMOS, Speaker headers

️ OS Support & Monitoring

Windows 10 & 11 (64-bit)

Monitoring: CPU/System Temp, Fan Speed, Voltage

Smart/Manual CPU Fan Control
