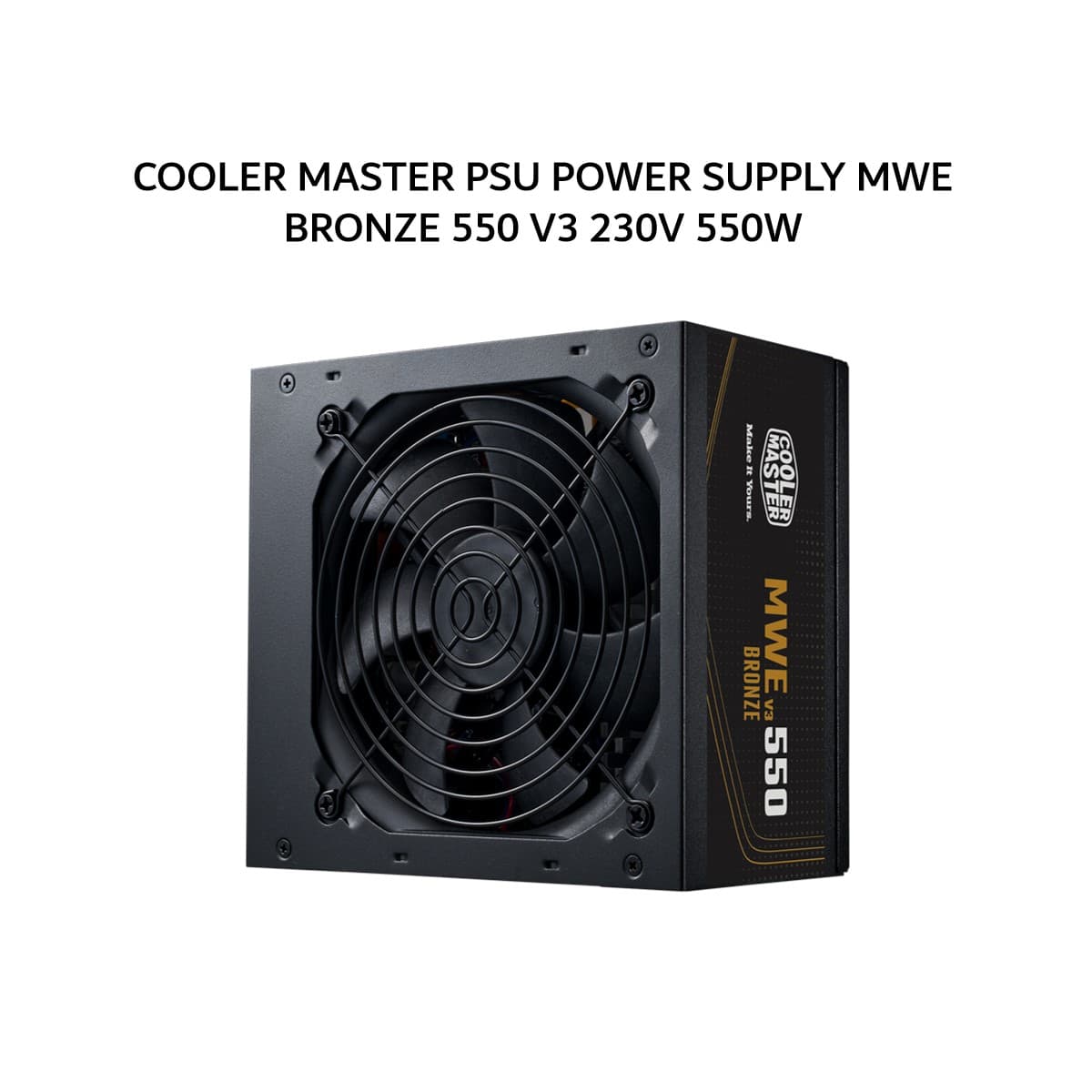

COOLER MASTER PSU POWER SUPPLY MWE BRONZE 550 V3 230V 550W (80+ BRONZE) ATX 3.1 BLACK 5Y

COOLER MASTER PSU POWER SUPPLY MWE BRONZE 550 V3 230V 550W (80+ BRONZE) ATX 3.1 BLACK 5Y

Spesifikasi

Model MPE-5501-ACABW-3BEU

Series MWE Bronze Series

80 Plus Bronze

80 PLUS Rating 80 PLUS Bronze EU 230V

Category 500 to 750W

ATX Version ATX 12V Ver. 3.1

Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

Input Voltage 200-240V

Input Frequency 50-60Hz

Input Current 5A

Modular Non Modular

Fan Bearing HDB

Fan Size 120mm

PFC Active PFC

Power Good Signal 100 - 150 ms

MTBF >100,000 Hours

Efficiency >88% @ Typical Load

Hold Up Time >16ms

Protections OVP, OPP, SCP, UVP, OTP

Regulatory

CCC, CE, RCM, EAC, cTUVus, FCC, TUV,

UKCA, RoHS2.0 / BIS, KC (based on region's request.)

ErP 2014 Lot 3 Yes

Operating Temperature 0-40°C

ATX 24 Pin Connectors 1

EPS 4+4 Pin Connectors 2

PCI-e 6+2 Pin Connectors 2

SATA Connectors 6

Peripheral 4 Pin Connectors 3

Warranty 5 years
