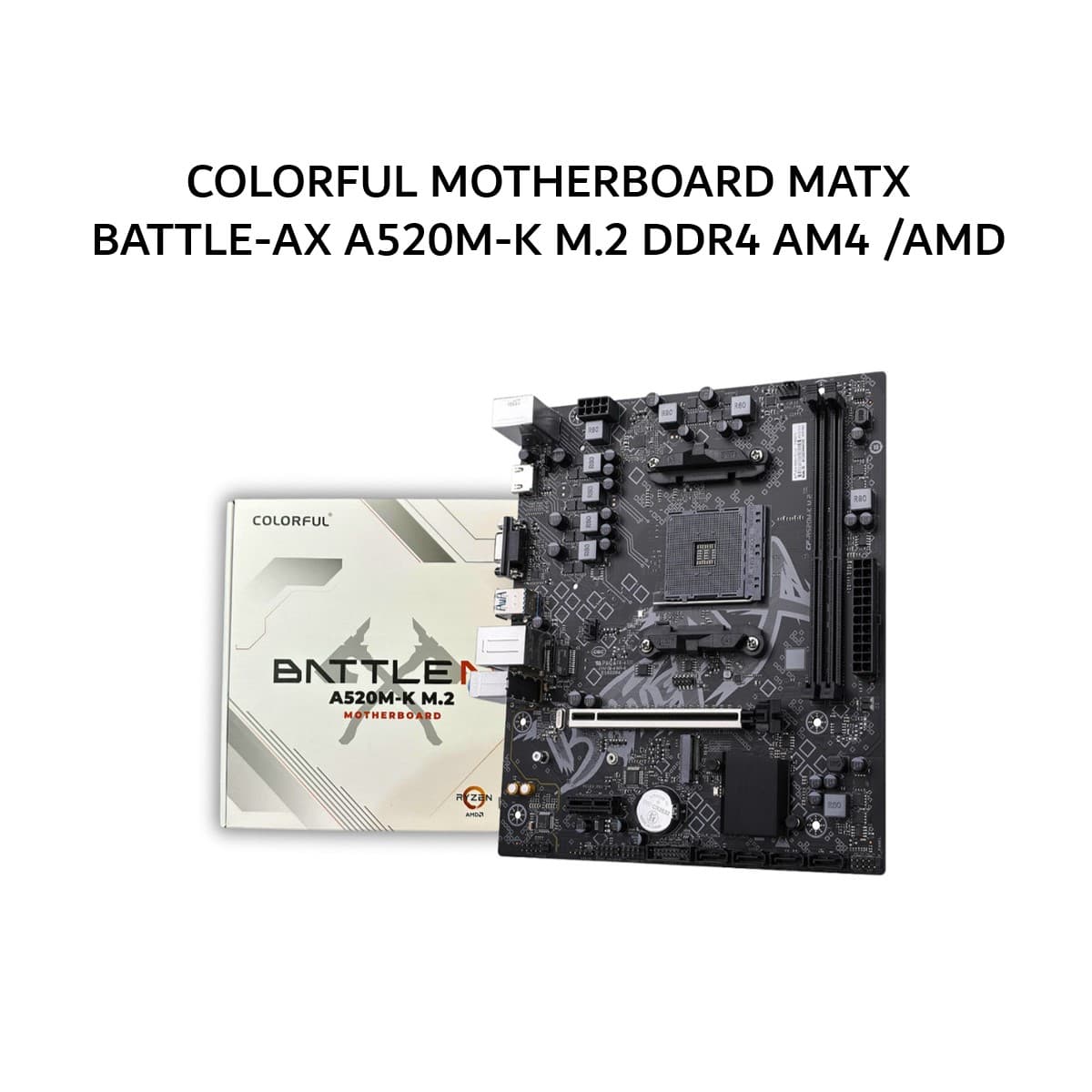

COLORFUL MOTHERBOARD MATX BATTLE-AX A520M-K M.2 DDR4 AM4 /AMD 3Y

COLORFUL MOTHERBOARD MATX BATTLE-AX A520M-K M.2 DDR4 AM4 /AMD 3Y

Spesifikasi Utama:

- Chipset: AMD A520

- Socket: AM4, mendukung AMD Ryzen™ series processors

- Form Factor: Micro-ATX (230mm x 197mm)

- Memory: 2x DDR4 DIMM, kapasitas maksimal 64GB (32GB per slot)

- Memory Speed: DDR4-3600(OC)/3200/2933/2666/2400 MHz

- Mendukung XMP, Dual-Channel

Storage:

- 1x M.2 slot (2242/2280, PCIe 3.0 x4/SATA, CPU channel)

- 4x SATA 6Gb/s

- Mendukung RAID 0/1/10

Expansion Slots:

- 1x PCIe 3.0 x16

- 1x PCIe 3.0 x1

Rear I/O Ports:

- 2x USB 2.0

- 4x USB 3.2 Gen1 Type-A

- 1x HDMI 2.0 (4K@60Hz)

- 1x VGA

- 1x PS/2

- 1x Gigabit LAN (RTL8111H)

- 3x Audio jacks (input/output/mic)

Onboard Connectors:

- 1x CPU Fan pin

- 1x System Fan pin

- 1x USB 2.0 header (expandable 2 ports)

- 1x USB 3.2 Gen1 header (expandable 2 ports)

- 1x Front Audio pin

- 1x Front Panel pin

- 1x Speaker pin

- 1x Clear CMOS jumper

- 1x BIOS burner pin

- 1x Debug light pin

- 1x USB live control jumper

Audio:

- Realtek ALC897 high fidelity codec

- Mendukung hingga 5.1 channel

BIOS & Fitur:

- 128M UEFI BIOS, multi-language support

- Power Management: S3/S4 wake-up, network S5 wake-up, USB wake-up, timing boot, call boot

- Hardware Monitor: CPU/system fan control, CPU/system temperature monitoring, voltage monitoring

3 YEARS WARRANTY
