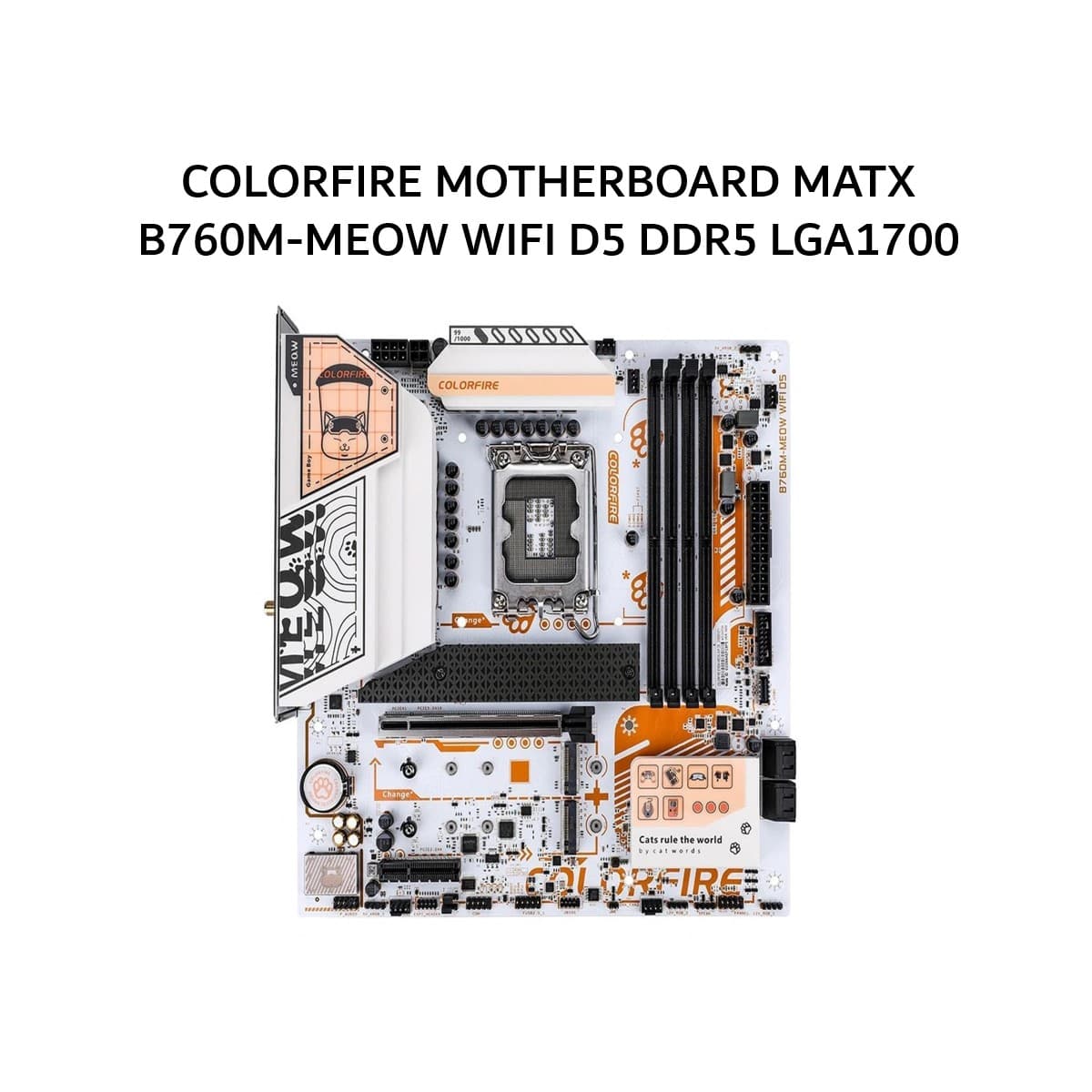

COLORFIRE MOTHERBOARD MATX B760M-MEOW WIFI D5 DDR5 LGA1700 /INTEL 3Y

COLORFIRE MOTHERBOARD MATX B760M-MEOW WIFI D5 DDR5 LGA1700 /INTEL 3Y

Model COLORFIRE B760M-MEOW WIFI D5 ORANGE

Product Series COLORFIRE Series

Chipset Intel B760

Processor

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard

Memory

Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)

- DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory

- Intel is supported Extreme Memory Profile (XMP) memory technology

- supports dual channel memory technology

SATA

Ports A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

- M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)

- M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

- M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

Board

I/O Rear I/O interface:

- 4×USB 2.0 interfaces

- 2×USB 3.2 Gen 1 Type-A interfaces

- 1×USB 3.2 Gen 2 Type-C interface

- 1×DP 1.2 interface, supporting up to 4K 60Hz resolution

- 1×HDMI 2.0 interface, Up to 4K 60Hz resolution

- 1×2.5G network interface

- 2×Wi-Fi 6 antenna interfaces

- 3×audio interfaces (audio input/audio output/microphone)

- 1×BIOS update button

On board device interface:

- 1×CPU fan pin

- 3×system fan pins

- 1×water-cooled pump pin

- 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces

- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces

- 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface

- 2×5V 3-pin ARGB pins

- 2×12V 4-pin RGB pins

- 1×Front audio pin

- 1×front panel pin

- 1×speaker pin

- 1×clear CMOS jumper

- 1×COM port pin

- 1×BIOS burner pin

- 1×POST card pin

- 1×ME write protection jumper

- 1×RGB light effect control jumper

Expansion Slots

1×PCIe 5.0 x16 slot

1×PCIe 3.0 x4 slot

BIOS

128M UEFI, supporting multiple languages

Power Management

Support S3, S4, network S5 wake-up, regular power on and power on

LAN

RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2

Audio

7.1 Channel sound card

Configuration

M-ATX

245mm x 245mm

3 Years Warranty
