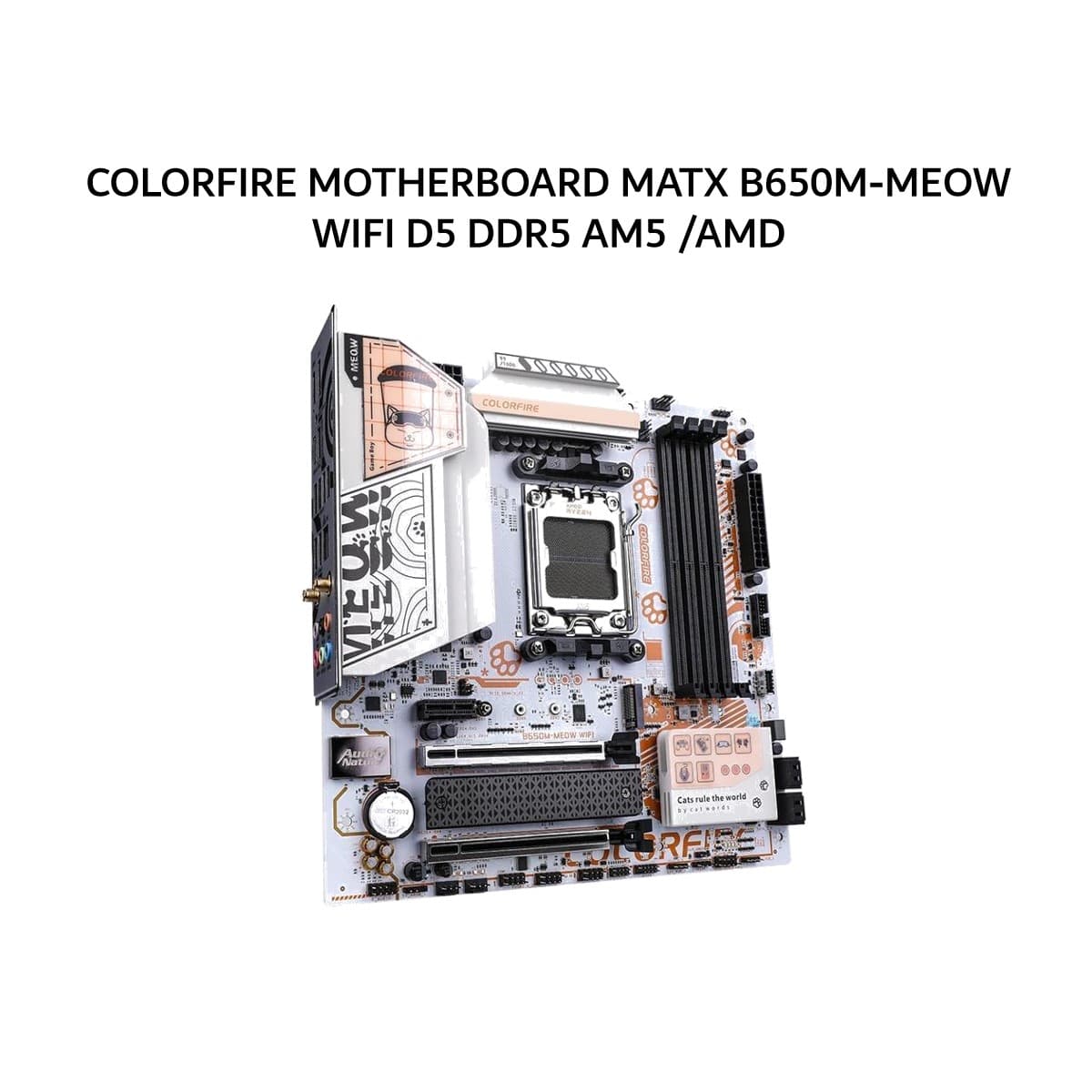

COLORFIRE MOTHERBOARD MATX B650M-MEOW WIFI D5 DDR5 AM5 /AMD 3Y

COLORFIRE MOTHERBOARD MATX B650M-MEOW WIFI DDR5 AM5 /AMD 3Y

The COLORFIRE B650M-MEOW WIFI ORANGE motherboard is part of the COLORFIRE series, designed to deliver high performance for gamers, creators, and professionals. Built on the AMD B650 chipset, it supports the latest AMD Ryzen 7000/8000/9000 series processors with the AM5 socket. Featuring DDR5 memory support, PCIe 5.0 expansion, Wi-Fi 6 connectivity, and advanced audio, this Micro-ATX board combines cutting-edge technology with compact design, making it an excellent choice for modern PC builds.

Specifications:

- Model: COLORFIRE B650M-MEOW WIFI ORANGE

- Product Series: COLORFIRE series

- Chipset: AMD B650

- Processor Support: AMD Ryzen 7000/8000/9000 series (AM5 socket)

Memory:

- 4 DDR5 slots, up to 192 GB (48 GB per slot)

- Supports DDR5-7600 (OC) down to 4800 MHz

- Supports XMP and EXPO memory profiles

- Dual channel memory technology

Storage:

- 2×M.2 slots (PCIe 5.0/4.0 x4, CPU channel)

- 4×SATA 6Gb/s ports

- RAID 0, RAID 1, RAID 10 supported

Rear I/O:

- 4×USB 2.0

- 2×USB 3.2 Gen 1 Type-A

- 1×USB 3.2 Gen 2 Type-A

- 1×USB 3.2 Gen 2 Type-C

- 1×DisplayPort 1.2 (up to 4K 60Hz)

- 1×HDMI 1.4 (up to 4K 30Hz)

- 1×2.5G LAN port

- 2×Wi-Fi 6 antenna connectors

- 6×Audio jacks

- 1×BIOS update button

Onboard Connectors:

- 1×CPU fan header

- 3×System fan headers

- 1×Water cooling pump header

- 2×USB 2.0 headers (expandable to 4 ports)

- 1×USB 3.2 Gen 1 header (expandable to 2 ports)

- 1×USB 3.2 Gen 1 Type-C header

- 2×5V 3-pin ARGB headers

- 2×12V 4-pin RGB headers

- 1×Front audio header

- 1×Front panel header

- 1×Speaker header

- 1×Clear CMOS jumper

- 1×COM port header

- 1×BIOS burner header

- 1×POST card header

Expansion Slots:

- 1×PCIe 5.0 x16

- 1×PCIe 4.0 x16 (x4 mode)

- 1×PCIe 4.0 x1

BIOS:

- 128M UEFI, multi-language support

Power Management:

- Supports S3/S4 wake-up

- Network S5 wake-up

- USB wake-up

- Timing boot and call boot

Networking:

- RTL8125 2.5G LAN

- Intel AX200 Wi-Fi 6

- Bluetooth 5.2

Audio:

- Realtek ALC897 high-fidelity decoding chip

- Supports up to 7.1 channels

Form Factor:

- Micro-ATX (M-ATX)

- Dimensions: 245mm × 245mm

3 Years Warranty
