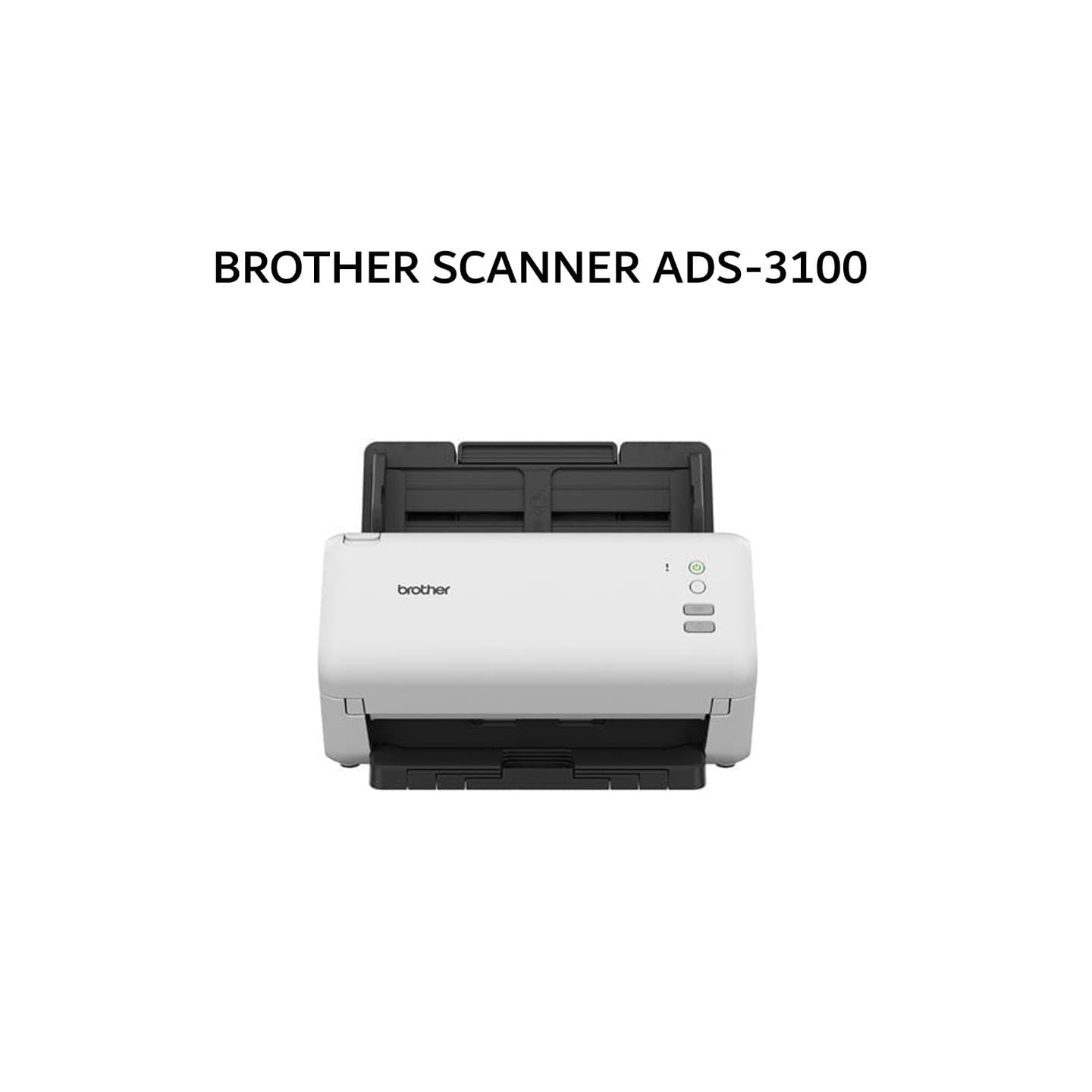

BROTHER SCANNER ADS-3100 40PPM DUPLEX ADF 60 SHEET 3Y

BROTHER SCANNER ADS 3100

Specification

Basic Specs

SCANNING SPEED

40 ppm

DOCUMENT SIZE - MULTIPLE PAPERS - WIDTH

50.8 mm to 215.9 mm

DOCUMENT SIZE - MULTIPLE PAPERS - LENGTH

50.8 mm to 355.6 mm

DOCUMENT SIZE - SINGLE PAPER - WIDTH

50.8 mm to 215.9 mm

COLOUR / BLACK

Yes / Yes

DUPLEX SCAN

Yes

COLOR DEPTH - INPUT

48-bit colour processing

COLOR DEPTH - OUTPUT

24-bit colour processing

RESOLUTION - OPTICAL

Up to 600 dpi × 600 dpi

RESOLUTION - INTERPOLATED

Up to 1,200 dpi × 1,200 dpi

SCANNING WIDTH

Up to 215.9 mm

GRAYSCALE

256 levels

PRODUCT DIMENSIONS (WIDTH X DEPTH X HEIGHT)

299.5 mm x 190.5 mm x 215.9 mm

General

MEMORY CAPACITY

512 MB

ADF (AUTOMATIC DOCUMENT FEEDER)

Up to 60 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)

WEIGHT

2.6 kg

Operation

POWER SOURCE

AC: 100-240 V, 50/60 Hz

POWER CONSUMPTION - SCANNING

Approx. 23W

POWER CONSUMPTION - READY

Approx. 5.4W

POWER CONSUMPTION - POWER SAVING / DEEP SLEEP

Approx. 1.4W

POWER CONSUMPTION - POWER OFF

Approx. 0.1W

TEMPERATURE - OPERATING

5°C to 35°C

HUMIDITY - OPERATING

20% to 80%

HUMIDITY - STORAGE

10% to 90%

Compliance

TWAIN COMPLIANT - WINDOWS

Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019

TWAIN COMPLIANT - MAC OS

macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x

WIA COMPLIANT - WINDOWS

Windows 7 (SP1) / Windows 8.1 / Windows 10

ICA COMPLIANT - MAC OS

macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x

ISISTM COMPLIANT - WINDOWS

Windows 7 (SP1) / Windows 8.1 / Windows 10

Interface

USB

USB 3.0
