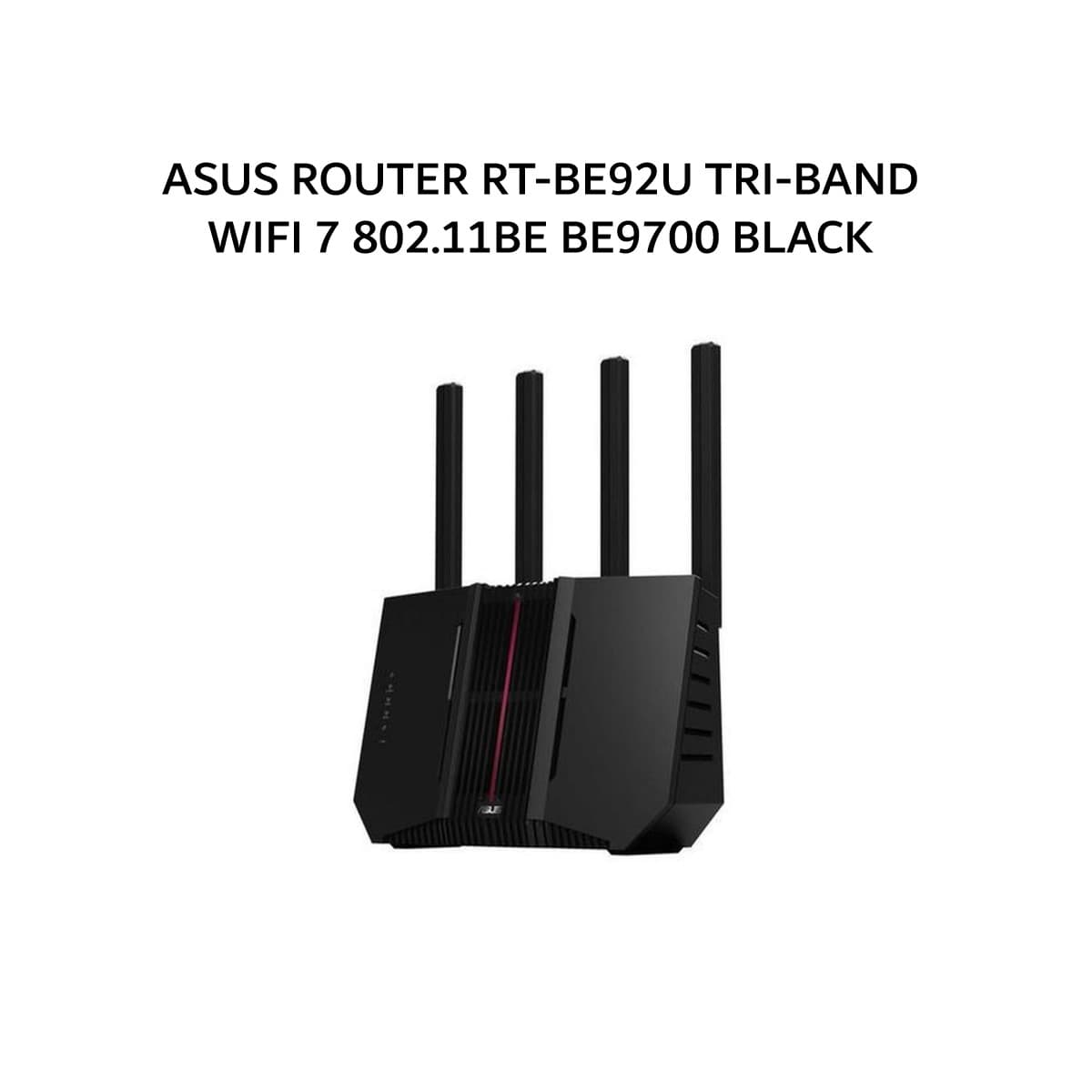

ASUS ROUTER RT-BE92U TRI-BAND WIFI 7 802.11BE BE9700 BLACK 3Y

ASUS ROUTER RT-BE92U TRI-BAND WIFI 7 BE9700 10G PORT SMART AIMESH BLACK 3Y

Spesifikasi:

Model ASUS RT-BE92UNetwork StandardIEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6Product SegmentBE9700 ultimate BE performance : 1032+2882+5764 MbpsWiFi Data RateWiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

WiFi 7 (802.11be) (6GHz): up to 5764 MbpsAntennaExternal antenna x 4Transmit / Receive2.4GHz 3x3

5GHz 2x2

6GHz 2x2Processor2.0GHz quad-core processorMemory256 MB Flash and 1 GB DDR4 RAMBoosts SpeedOFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160/320 MHz bandwidthOperating Frequency2.4 GHz

5 GHz

6 GHzOperating ModeWireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater ModeI/O Ports1 x 10Gbps for WAN/LAN

1 x 2.5Gbps for WAN/LAN

3 x 2.5 Gbps for LAN

USB 3.2 Gen1 x1ButtonsWPS Button, Reset Button, Power SwitchLED IndicatorPower x1

WAN x1

LAN x1

2.4GHz x1

5GHz x1

6GHz x1Power SupplyAC Input: 110V~240V(50~60Hz)

DC Output: 12 V with max. 3 A currentPackage ContentRT-BE92U WiFi 7 Tri-band Router

wall mount kit

RJ-45 cable

Power Adapter

Quick Start Guide

Warranty CardProduct Dimensions247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inchAiMeshAiMesh

• Primary AiMesh Router

• AiMesh NodeParental Control"Allow you to block access to unwanted websites and apps."

Web & Apps Filters

Time Scheduling

Safe Browsing

Customized Internet Schedule

• Maximum Parental Control Profile : 64

• Maximum Parental Control Content Cilter Rule : 64Guest Network"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3

Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-PersonalSecurityAiProtection

VPN

WPA/WPA2/WPA3 Personal

WPA/WPA2/WPA3 Enterprise

Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64AiProtectionAiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and BlockingVPNInstant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support SurfsharkTraffic ControlAdaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website HistoryWANInternet Connection Type :

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

3G / 4G LTE dongle

4G / 5G Auto Mobile Tethering

Port forwarding

• Maximum Port Forwarding Rule : 64

Port triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough :

• PPTP Pass-Through

• L2TP Pass-Through

• IPSec Pass-Through

• RTSP Pass-Through

• H.323 Pass-Through

• SIP Pass-Through

• PPPoE RelayLANDHCP Server

IGMP Snooping

IPTV

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)WirelessMU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit BeamformingUSB application4G / 5G Auto Mobile Tethering

File System :

• HFS+

• NTFS

• vFAT

• ext2

• ext3

• ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder PrivilegesUser InterfaceWEB: ASUSWRT

APP: ASUS Router APPAdministrationConfiguration Backup and Restore

Diagnosis tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
