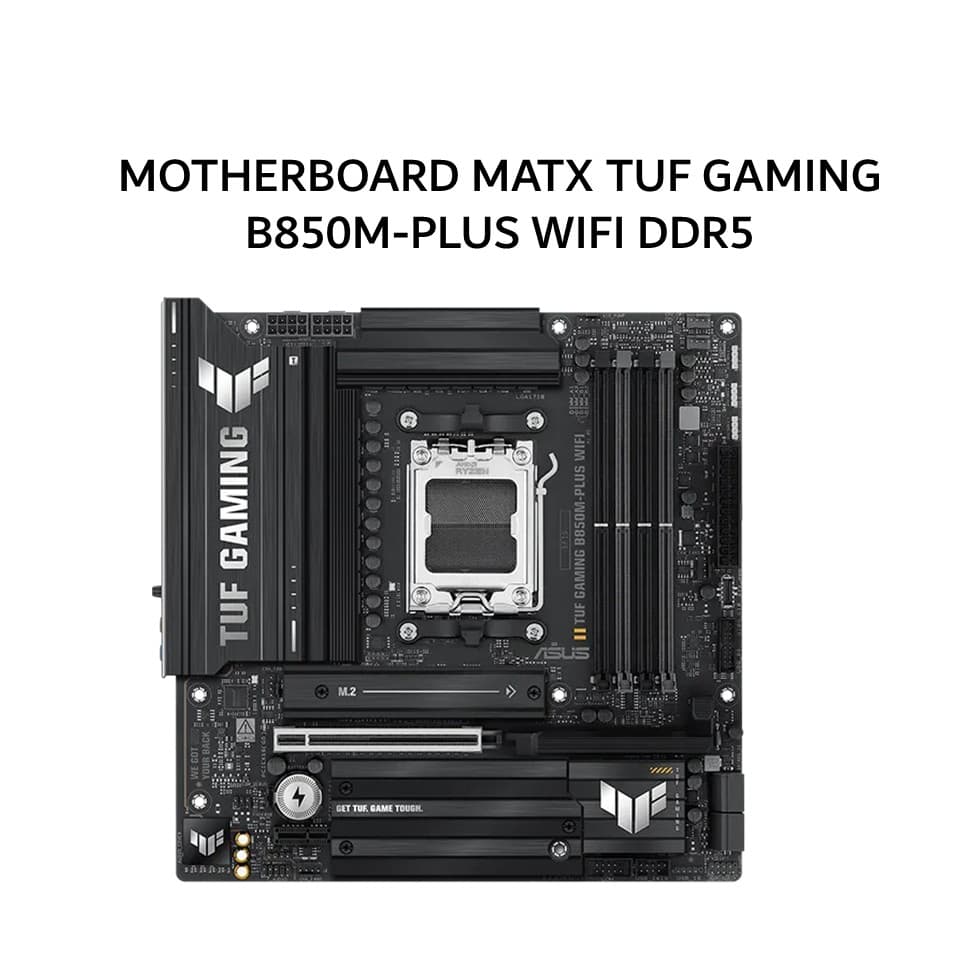

ASUS MOTHERBOARD MATX TUF GAMING B850M-PLUS WIFI DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: ASUS

Model: TUF GAMING B850M-PLUS WIFI DDR5

Chipset: AMD B850

CPU Socket: AM5

Processor Support: AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series

Memory Slot: 4x DDR5

Maximum Memory Capacity: 256 GB

Memory Speed Support: DDR5 Up to 8000+ MT/s OC

Memory Channel: Dual Channel

Memory Type: ECC Non ECC Unbuffered

Integrated Graphics Output: DisplayPort HDMI

DisplayPort Version: DisplayPort 1.4

HDMI Version: HDMI 2.1

Maximum Resolution: 8K 30Hz DisplayPort 4K 60Hz HDMI

Expansion Slots:

PCIe x16: 1 Slot PCIe 5.0 x16

PCIe x1: 1 Slot PCIe 4.0 x1

Audio: Realtek ALC1220P

Audio Channels: 7.1 Channel HD Audio

Storage:

M.2 Slot: 3x M.2 PCIe

M.2 Size Support: 2242 2260 2280

SATA: 4x SATA 6Gb/s

USB Ports Rear:

USB 20Gbps Type C: 1 Port

USB 10Gbps Type A: 3 Ports

USB 5Gbps Type A: 4 Ports

USB 2.0 Type A: 4 Ports

USB Ports Front:

USB 10Gbps Type C: 1 Port

USB 5Gbps Type A: 2 Ports

USB 2.0: 3 Ports

LAN: Realtek 2.5Gb Ethernet

Wireless: Wi-Fi 6E Bluetooth 5.3

Internal Connectors:

ATX Power Connector: 1

CPU Power Connector: 2

CPU Fan Header: 1

CPU OPT Fan Header: 1

AIO Pump Header: 1

System Fan Header: 3

Front Panel Connector: 1

Chassis Intrusion: 1

Front Audio Connector: 1

COM Port Header: 1

Clear CMOS Header: 1

LED Feature: Aura Sync Addressable Gen 2 RGB

Back Panel Ports:

USB 20Gbps Type C

USB 10Gbps Type A

USB 5Gbps Type A

USB 2.0 Type A

DisplayPort

HDMI

Wi-Fi Antenna Connectors

2.5Gb LAN Port

Audio Connectors

BIOS FlashBack Button

Operating System Support: Windows 11 Windows 10 64 bit

Form Factor: Micro ATX 24.4 cm x 24.4 cm
