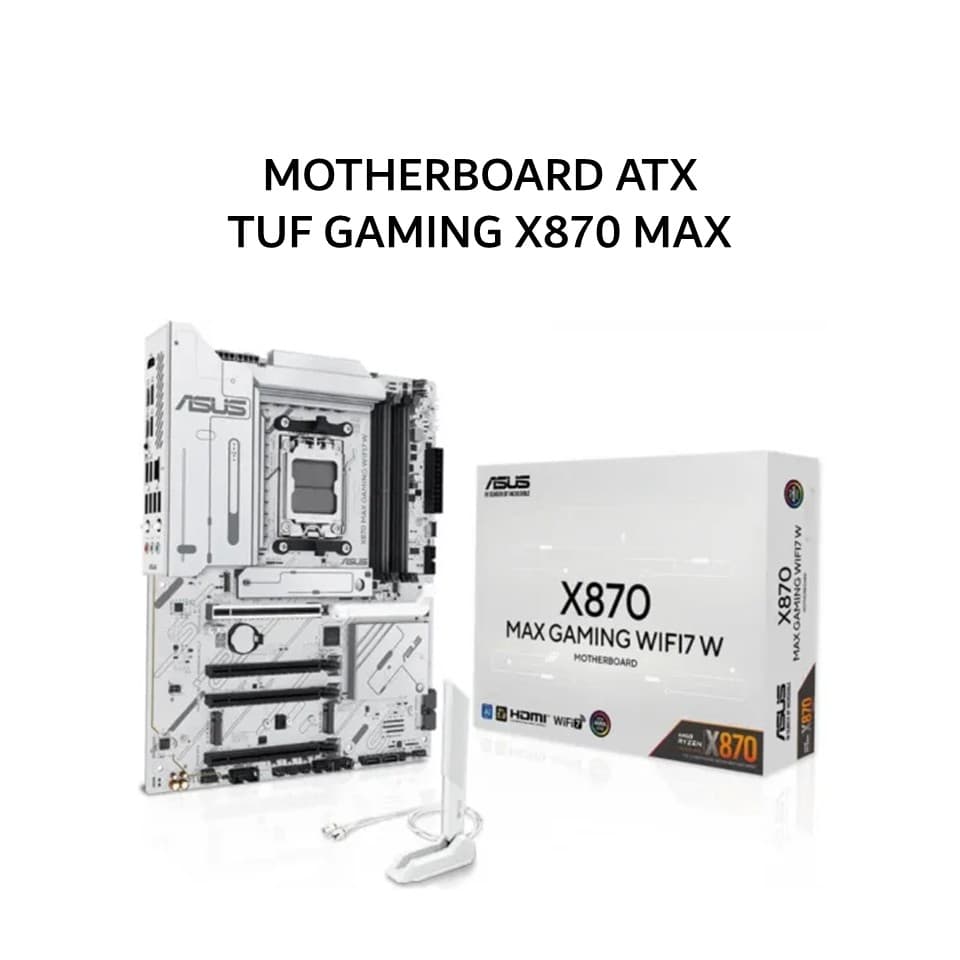

ASUS MOTHERBOARD ATX GAMING X870 MAX WIFI 7 W DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: ASUS

Tipe: X870 MAX GAMING WIFI7 W

Model: X870 MAX GAMING WIFI7 W

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 8000 7000 Series Desktop Processors

Chipset: AMD X870

Memory: 4 x DIMM Max 256GB DDR5 Up to 8000+MT/s OC Dual Channel Supports EXPO™ AEMP ECC and Non-ECC

Graphics:

1x HDMI™ 2.1 4K@60Hz

2x USB4® Type-C® Display Output 4K@60Hz

Expansion Slot:

1x PCIe 5.0 x16

2x PCIe 4.0 x16 x1

1x PCIe 3.0 x16 x1

Storage:

3x M.2 Slot PCIe 5.0/4.0

4x SATA 6Gb/s

RAID Support: AMD RAIDXpert2 RAID 0/1/5/10

Ethernet: 1x Realtek 2.5Gb Ethernet

Wireless & Bluetooth: Wi-Fi 7 802.11be 2x2 Bluetooth 5.4

Rear USB Total 10 Ports:

2x USB4® 40Gbps Type-C®

1x USB 10Gbps Type-A

3x USB 5Gbps Type-A

4x USB 2.0 Type-A

Front USB Total 7 Ports:

1x USB 20Gbps Type-C®

1x USB 5Gbps Header Supports 2 Ports

2x USB 2.0 Headers Supports 4 Ports

Audio: Realtek 7.1 Surround High Definition Audio CODEC Audio Shielding Premium Audio Capacitors

Back Panel I/O:

2x USB4® Type-C®

1x USB 10Gbps Type-A

3x USB 5Gbps Type-A

4x USB 2.0 Type-A

1x HDMI™

1x Wi-Fi Module

1x Realtek 2.5Gb Ethernet

3x Audio Jacks

1x BIOS FlashBack™ Button

Special Features: ASUS 5X Protection III DIGI+ VRM LANGuard SafeSlot Stainless Steel Back I/O Q-Release Q-LED Core M.2 Heatsink Aura Sync

Software: Armoury Crate Aura Creator Aura Sync Fan Xpert 4 ASUS AI Advisor DriverHub GlideX TurboV Core ASUS CPU-Z Norton 360 Trial WinRAR Trial

BIOS: 256 Mb Flash ROM UEFI AMI BIOS

Manageability: WOL by PME PXE

Accessories:

2x SATA 6Gb/s Cables

ASUS WiFi Q-Antenna

M.2 Rubber Package

Screw Package for M.2 SSD

Quick Start Guide

Operating System: Windows 11

Form Factor: ATX

Warranty: Official ASUS Warranty
