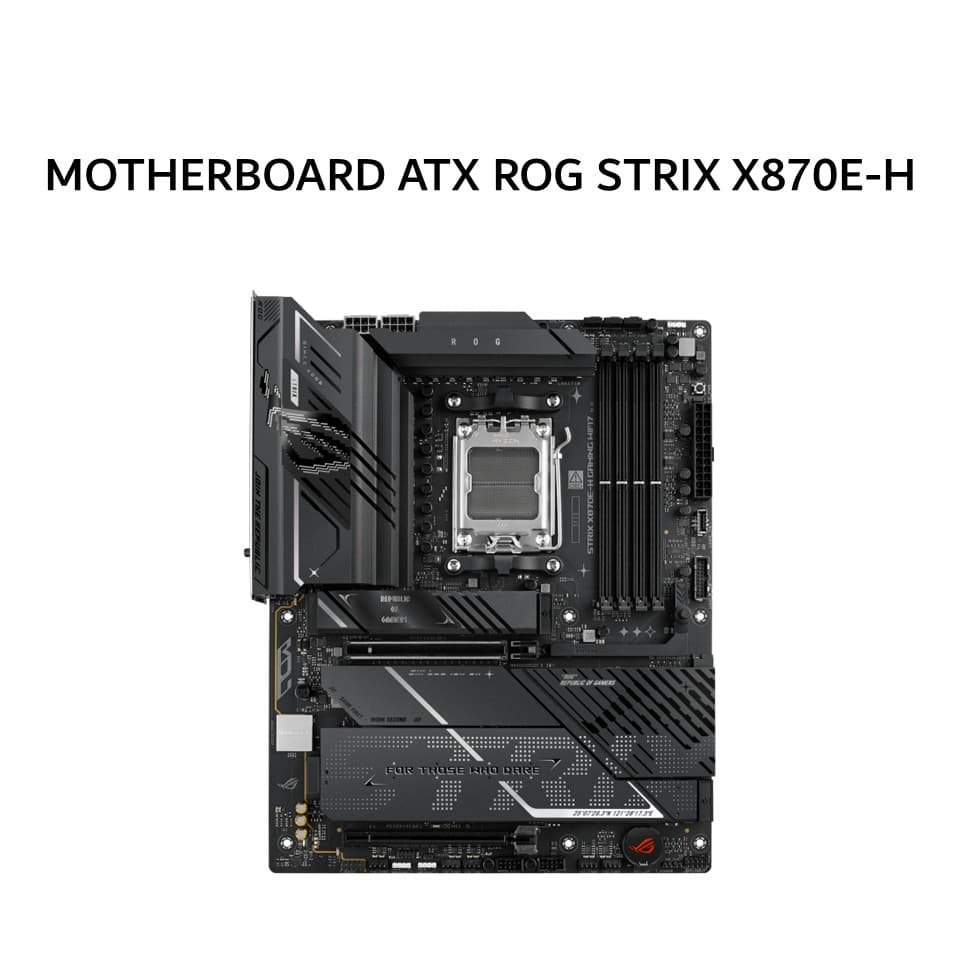

ASUS MOTHERBOARD ATX ROG STRIX X870E-H GAMING WIFI 7 DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: ASUS

Tipe: ROG STRIX X870E-H GAMING WIFI7

Model: ROG STRIX X870E-H GAMING WIFI7

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 8000 7000 Series Desktop Processors

Chipset: AMD X870E

Memory: 4 x DIMM Max 256GB DDR5 Up to 8000+MT/s OC Dual Channel Supports EXPO™ AEMP DIMM Fit DIMM Fit Pro

Graphics:

1x HDMI™ 2.1 4K@60Hz

2x USB4® Type-C® Display Output 4K@60Hz

Expansion Slot:

1x PCIe 5.0 x16

1x PCIe 4.0 x16 x4

Storage:

4x M.2 Slot PCIe 5.0/4.0

4x SATA 6Gb/s

RAID Support: AMD RAIDXpert2 RAID 0/1/5/10

Ethernet: 1x Realtek 5Gb Ethernet

Wireless & Bluetooth: Wi-Fi 7 802.11be 2x2 Bluetooth 5.4

Rear USB Total 14 Ports:

2x USB4® 40Gbps Type-C®

4x USB 10Gbps 3x Type-A 1x Type-C® 30W PD

6x USB 5Gbps Type-A

2x USB 2.0 Type-A

Front USB Total 7 Ports:

1x USB 20Gbps Type-C®

1x USB 5Gbps Header Supports 2 Ports

2x USB 2.0 Headers Supports 4 Ports

Audio: Realtek ALC1220P 7.1 Surround High Definition Audio CODEC SupremeFX Savitech SV3H712 AMP Optical S/PDIF

Back Panel I/O:

2x USB4® Type-C®

4x USB 10Gbps

6x USB 5Gbps

2x USB 2.0

1x HDMI™

1x Wi-Fi Module

1x Realtek 5Gb Ethernet

2x Audio Jacks

1x Optical S/PDIF Out

1x BIOS FlashBack™ Button

1x Clear CMOS Button

Special Features: Extreme Engine Digi+ ASUS Q-Design M.2 Q-Latch M.2 Q-Release PCIe Q-Release Q-LED SafeSlot SafeDIMM Aura Sync

Software: ROG CPU-Z Armoury Crate Aura Creator Aura Sync Fan Xpert 4 GameFirst ASUS AI Advisor DriverHub AIDA64 Extreme Trial HWiNFO GlideX TurboV Core Adobe Creative Cloud Trial Norton 360 Trial WinRAR Trial

BIOS: 256 Mb Flash ROM UEFI AMI BIOS

Manageability: WOL by PME PXE

Accessories:

2x SATA 6Gb/s Cables

ASUS WiFi Q-Antenna

Cable Ties Package

M.2 Q-Latch Package

ROG Key Chain

ROG Strix Stickers

4x M.2 Rubber

Quick Start Guide

Operating System: Windows 11

Form Factor: ATX

Warranty: Official ASUS Warranty
