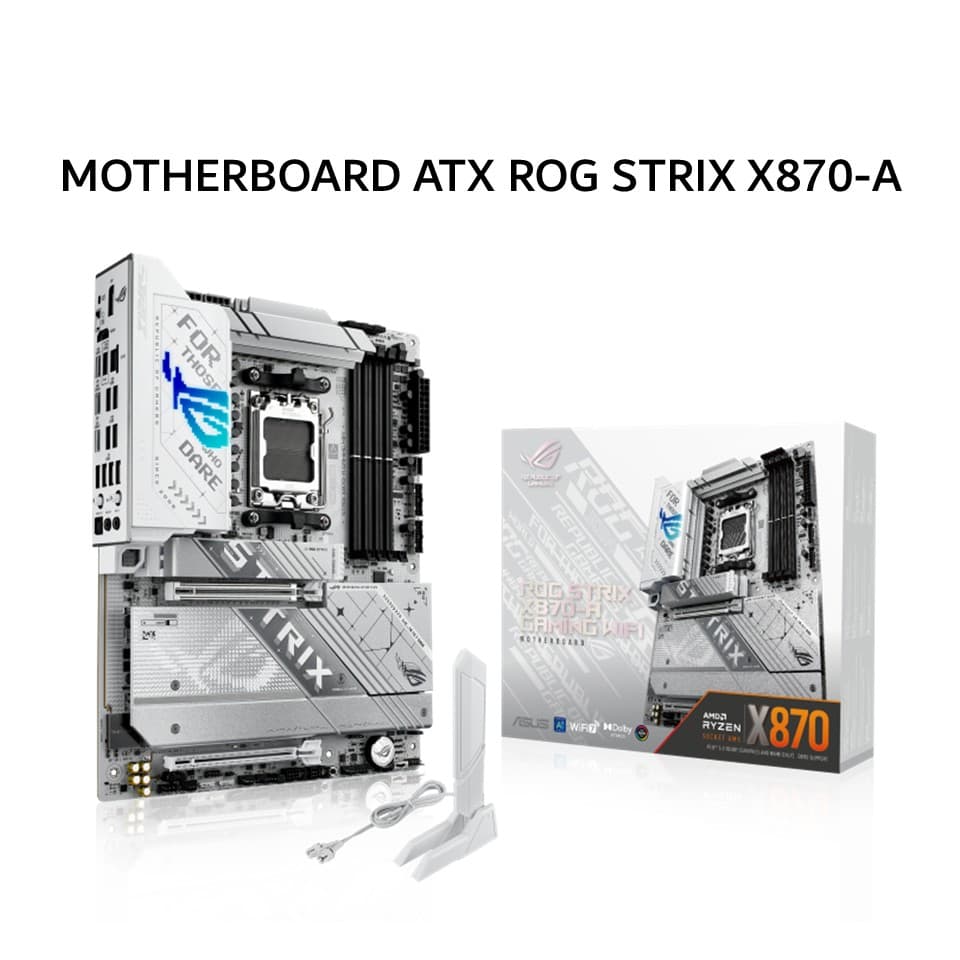

ASUS MOTHERBOARD ATX ROG STRIX X870-A GAMING WIFI DDR5 AM5 /AMD WHITE 3Y

SPESIFIKASI

Brand: ASUS

Type: ROG STRIX X870-A GAMING WIFI

CPU Socket: AMD AM5

Chipset: AMD X870

Memory: 4x DDR5 DIMM Slots, Up to 256 GB, Up to 8000+ MT/s (OC), Dual Channel

Expansion Slots:

1x PCIe 5.0 x16

1x PCIe 4.0 x16

1x PCIe 4.0 x16 (x4 Mode)

Storage:

4x M.2 Slots

2x SATA 6Gb/s Ports

Network:

Intel 2.5Gb Ethernet

Wi-Fi 7

Bluetooth 5.4

Graphics Outputs:

1x DisplayPort 1.4

1x HDMI 2.1

2x USB4 Type-C with DisplayPort

Rear USB Ports:

2x USB4 Type-C 40Gbps

5x USB 10Gbps Type-A

1x USB 10Gbps Type-C

4x USB 5Gbps Type-A

Front USB Support:

1x USB-C 20Gbps Header

4x USB 5Gbps

4x USB 2.0

Audio: ROG SupremeFX ALC4080 7.1 High Definition Audio

Rear I/O:

2x USB4 Type-C

6x USB 10Gbps

4x USB 5Gbps

1x DisplayPort

1x HDMI

1x Intel 2.5Gb Ethernet

2x Audio Jacks

1x Optical S/PDIF Out

1x BIOS FlashBack Button

1x Clear CMOS Button

Internal Connectors:

4x M.2

2x SATA

1x 24-Pin ATX Power

2x 8-Pin CPU Power

1x USB-C 20Gbps Header

2x USB 5Gbps Headers

2x USB 2.0 Headers

1x CPU Fan

1x CPU OPT Fan

1x AIO Pump

5x Chassis Fan

3x Addressable Gen 2 RGB Headers

Special Features:

PCIe 5.0

Wi-Fi 7

USB4

BIOS FlashBack

Clear CMOS

M.2 Q-Latch

M.2 Q-Release

SafeSlot

Aura Sync RGB

Pre-mounted I/O Shield

Operating System: Windows 11

Form Factor: ATX

Dimensions: 305 x 244 mm
