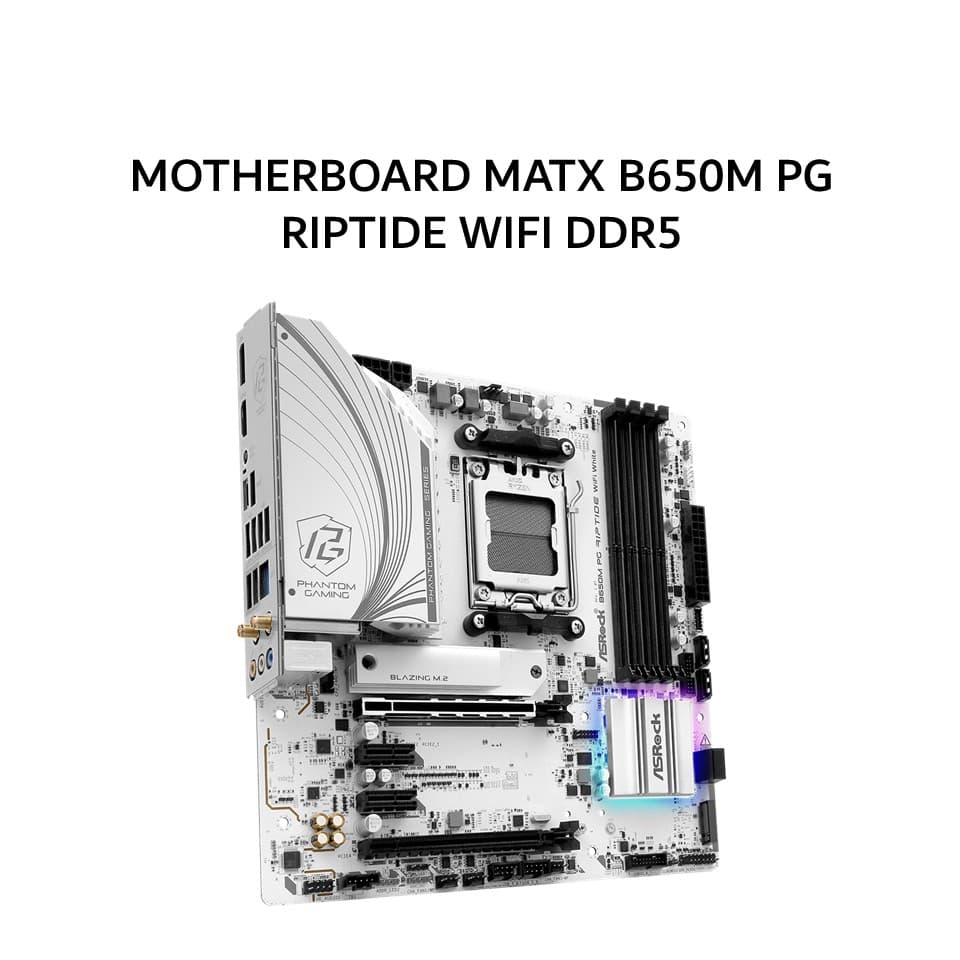

ASROCK MOTHERBOARD MATX B650M PG RIPTIDE WIFI DDR5 AM5 /AMD WHITE 3Y

SPESIFIKASI

Brand: ASRock

Model: Micro ATX AMD B650 Motherboard

Color: Black

Chipset: AMD B650

CPU Support:

AMD Socket AM5

AMD Ryzen™ 9000 Series Processors

AMD Ryzen™ 8000 Series Processors

AMD Ryzen™ 7000 Series Processors

Memory:

4 x DDR5 DIMM slots

Maximum Capacity 256 GB

Memory Speed up to 7200+ OC

Supports Dual Channel Memory Architecture

Supports ECC and non ECC Un-buffered Memory

Supports Intel® Extreme Memory Profile XMP

Supports AMD EXPO Memory

Graphics Output:

1 x HDMI 2.1 supports up to 4K at 120Hz

1 x DisplayPort 1.4 supports up to 4K at 120Hz

Expansion Slots:

1 x PCIe 4.0 x16 slot

1 x PCIe 4.0 x16 slot supports x4 mode

2 x PCIe 3.0 x1 slots

Storage:

1 x M.2 PCIe Gen5 x4 slot

1 x M.2 PCIe Gen4 x4 slot

4 x SATA 6Gb per second ports

Supports RAID 0 RAID 1 RAID 10

Audio:

Realtek ALC897 7.1 Channel High Definition Audio

Nahimic Audio

USB Ports:

Rear USB:

1 x USB 3.2 Gen2 Type-C

1 x USB 3.2 Gen2 Type-A

2 x USB 3.2 Gen1

4 x USB 2.0

Front USB:

1 x USB 3.2 Gen1 Type-C

4 x USB 3.2 Gen1

4 x USB 2.0

LAN: Dragon RTL8125BG 2.5G Ethernet

Wireless Connectivity:

802.11axe Wi-Fi 6E

Bluetooth 5.2

Back Panel I O Ports:

2 x Antenna Ports

HDMI

DisplayPort

USB 3.2 Gen2 Type-A

USB 3.2 Gen2 Type-C

2 x USB 3.2 Gen1

4 x USB 2.0

2.5G LAN

BIOS Flashback Button

Audio Jacks

Internal Connectors:

24-pin ATX Power Connector

8-pin 12V Power Connector

4-pin 12V Power Connector

CPU Fan Header

CPU Water Pump Header

3 x Chassis Fan Headers

SPI TPM Header

RGB LED Header

3 x Addressable RGB Headers

Front Panel Audio Header

Thunderbolt AIC Connector

2 x USB 2.0 Headers

2 x USB 3.2 Gen1 Headers

Front Panel Type C Header

Special Features:

PCIe Gen5 M.2

12+2+1 Power Phase Design

50A Dr MOS

Enlarged Heatsink Armor

2.5G LAN

Wi-Fi 6E

ASRock Lightning Gaming Ports

BIOS Flashback Button

ASRock Auto Driver Installer

ASRock Post Status Checker

Operating System Support:

Windows 10 64-bit

Windows 11 64-bit
