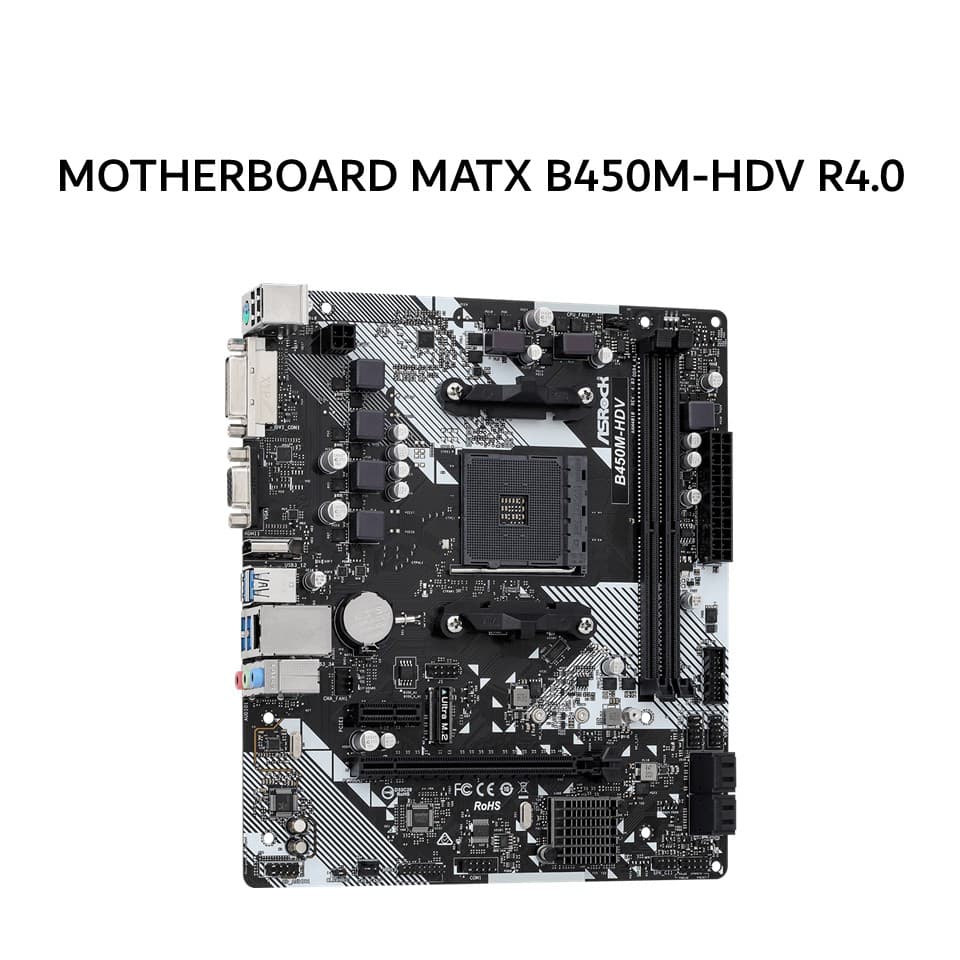

ASROCK MOTHERBOARD MATX B450M-HDV R4.0 DDR4 AM4 /AMD 3Y

SPESIFIKASI

Brand: ASRock

Model: Micro ATX AMD B450 Motherboard

Color: Black

Chipset: AMD Promontory B450

CPU Support:

AMD Socket AM4

AMD Ryzen™ 2000 Series Processors

AMD Ryzen™ 3000 Series Processors

AMD Ryzen™ 4000 G-Series Processors

AMD Ryzen™ 5000 Series Processors

AMD Ryzen™ 5000 G-Series Processors

Supports CPU up to 105W

Memory:

2 x DDR4 DIMM slots

Maximum Capacity 64 GB

Memory Speed 3200+ OC / 2933 / 2667 / 2400 / 2133

Supports Dual Channel Memory Architecture

Supports ECC and non ECC Un-buffered Memory

Supports Intel® Extreme Memory Profile XMP

Graphics Output:

1 x D-Sub supports up to 2048 x 1536 at 60Hz

1 x DVI-D supports up to 1920 x 1200 at 60Hz

1 x HDMI supports up to 4K at 30Hz

Expansion Slots:

1 x PCIe 3.0 x16 slot

1 x PCIe 2.0 x1 slot

Storage:

1 x Ultra M.2 PCIe Gen3 x4 and SATA slot

4 x SATA 6Gb per second ports

Supports RAID 0 RAID 1 RAID 10

Audio:

Realtek ALC887 7.1 Channel High Definition Audio

USB Ports:

Rear USB:

4 x USB 3.1 Gen1

2 x USB 2.0

Front USB:

2 x USB 3.1 Gen1

4 x USB 2.0

LAN: Realtek RTL8111H 1G Ethernet

Wireless Connectivity:

Not Available

Back Panel I O Ports:

PS 2 Mouse Keyboard

D-Sub

DVI-D

HDMI

4 x USB 3.1 Gen1

2 x USB 2.0

RJ-45 LAN

Audio Jacks

Internal Connectors:

24-pin ATX Power Connector

4-pin 12V Power Connector

CPU Fan Header

2 x Chassis Fan Headers

COM Port Header

TPM Header

Chassis Intrusion Header

Front Panel Audio Header

2 x USB 2.0 Headers

USB 3.1 Gen1 Header

Special Features:

ASRock Super Alloy

High Density Glass Fabric PCB

Sapphire Black PCB

ASRock Ultra M.2

Full Spike Protection

ASRock Live Update APP Shop

Operating System Support:

Windows 10 64-bit

Windows 11 64-bit
