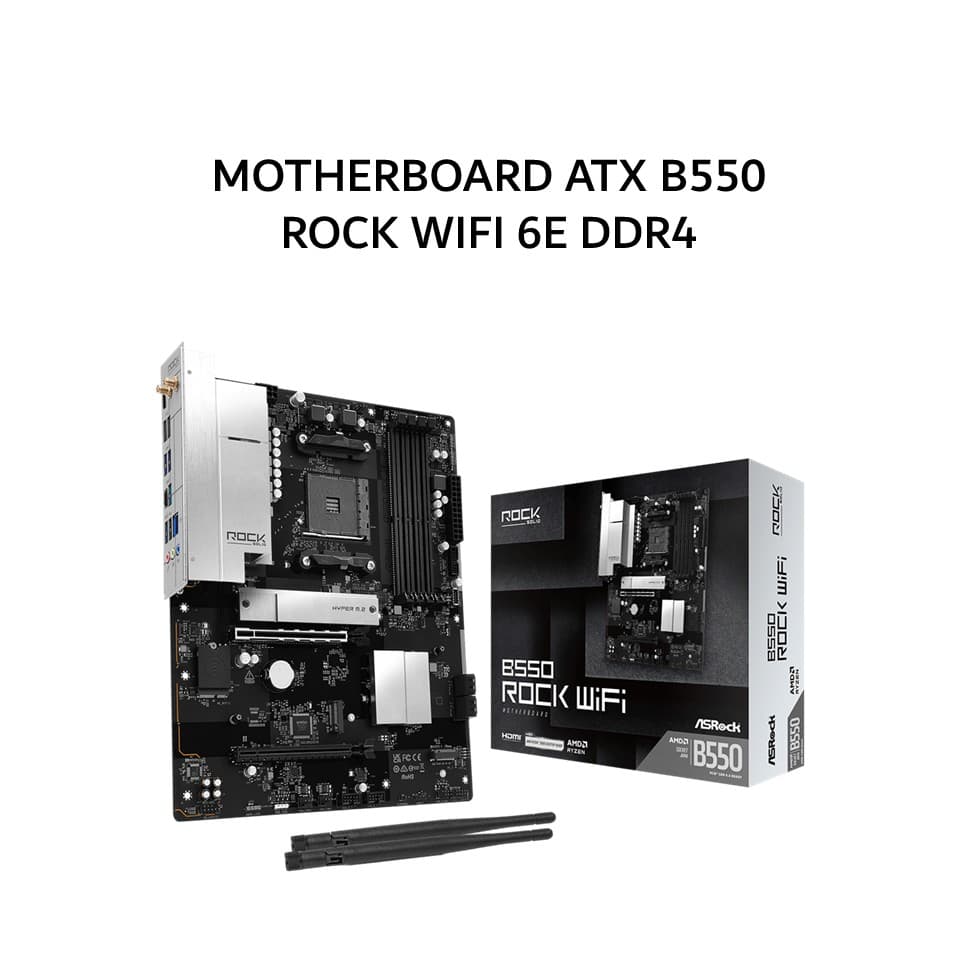

ASROCK MOTHERBOARD ATX B550 ROCK WIFI 6E DDR4 AM4 /AMD 3Y

**SPESIFIKASI**

Brand: ASRock

Model: B550 ROCK WIFI 6E DDR4

Color: Black

Chipset: AMD B550

CPU Support: AMD AM4 Socket for AMD Ryzen 5000 Series 5000 G-Series 4000 G-Series 3000 Series and 3000 G-Series Desktop Processors

Memory: 4 x DDR4 DIMM Slots Max. 128GB DDR4

DDR4 4733+(OC) up to 2133MHz

Dual Channel Memory Architecture

Supports ECC and Non-ECC Un-buffered Memory

Supports XMP Memory Modules

Graphics Output:

1 x HDMI 2.1 supports HDR HDCP 2.3 and up to 4K 60Hz

Expansion Slots:

2 x PCIe x16 Slots

1 x M.2 Key E Slot for WiFi Bluetooth Module

Storage:

1 x Hyper M.2 PCIe Gen4 x4 or Gen3 x4

1 x Ultra M.2 PCIe Gen3 x4 SATA

1 x M.2 PCIe Gen3 x2

4 x SATA 6Gb per second Ports

Supports RAID 0 RAID 1 and RAID 10

LAN: Dragon RTL8125BG 2.5 Gigabit Ethernet

Wireless:

WiFi 6E 802.11a b g n ac ax axe

Bluetooth 5.3

Audio: Realtek ALC897 7.1 Channel HD Audio

USB Ports:

Rear USB:

1 x USB 3.2 Gen1 Type-C

4 x USB 3.2 Gen1 Type-A

3 x USB 2.0

Front USB:

1 x USB 3.2 Gen1 Type-C

2 x USB 3.2 Gen1

4 x USB 2.0

Back Panel I O Ports:

2 x WiFi Antenna Ports

1 x HDMI

1 x USB 3.2 Gen1 Type-C

4 x USB 3.2 Gen1 Type-A

3 x USB 2.0

1 x LAN RJ45 Port

3 x Audio Jacks

Internal Connectors:

2 x CPU Fan Headers

4 x Chassis Fan Headers

1 x 24-pin ATX Power Connector

1 x 8-pin CPU Power Connector

1 x Front Panel Audio Header

2 x USB 2.0 Headers

1 x USB 3.2 Gen1 Header

1 x Front USB 3.2 Gen1 Type-C Header

3 x M.2 Slots

4 x SATA 6Gb per second Ports

1 x SPI TPM Header

1 x RGB LED Header

3 x Addressable RGB Headers

Special Features:

Pre-Installed I O Shield

8+2 Power Phase Design

2.5G LAN

WiFi 6E

ASRock Post Status Checker

ASRock Polychrome SYNC

ASRock Full HD UEFI

ASRock Instant Flash

BIOS: 256Mb AMI UEFI BIOS

Operating System Support: Windows 11 64-bit Windows 10 64-bit

Form Factor: ATX

PCB Size: 305 x 244 mm
