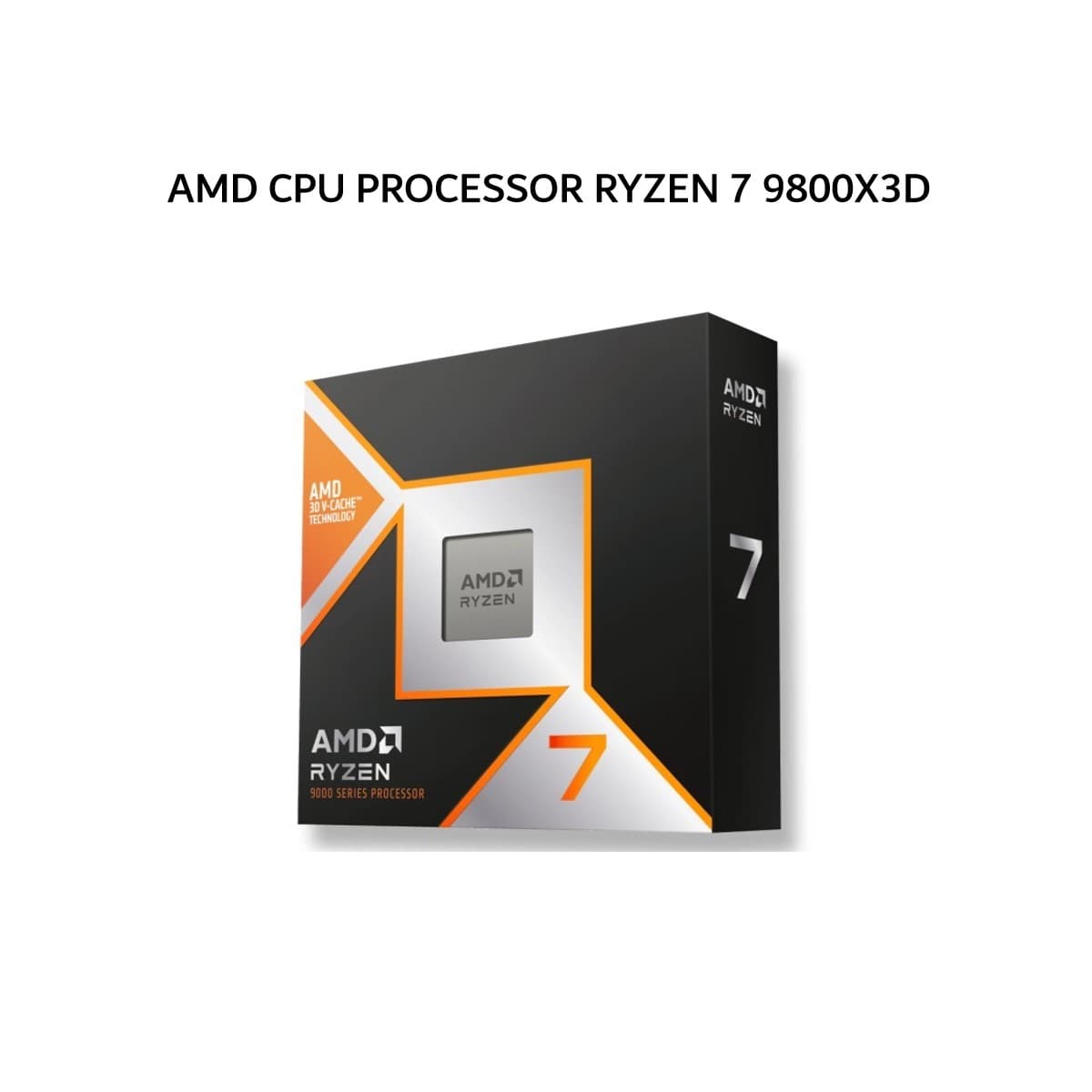

AMD CPU PROCESSOR RYZEN 7 9800X3D (8C/16T + 4.7-5.2GHZ) 96MB CACHE TDP 120W AM5 3Y

AMD PROCESSOR RYZEN 7 9800X3D AM5 3Y

AMD Ryzen™ 7 9800X3D

Processor Enthusiast Desktop – Zen 5 Architecture dengan 3D V-Cache™

Spesifikasi Utama:

- Family: Ryzen 9000 Series

- Codename: Granite Ridge AM5

- Architecture: Zen 5 (TSMC 4nm FinFET)

- CPU Cores: 8

- Threads: 16 (SMT)

- Base Clock: 4.7 GHz

- Max Boost Clock: Up to 5.2 GHz

- Cache: L1 640KB, L2 8MB, L3 96MB (3D V-Cache™)

- Default TDP: 120W

- Socket: AM5

- Chipsets Support: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

- Instruction Set: x86-64 dengan AVX512, SSE4.2, AES, AMD-V, SHA, FMA3

Overclocking & Teknologi:

- Unlocked for Overclocking

- AMD EXPO™ Memory Overclocking Technology

- Precision Boost 2 & Precision Boost Overdrive

- Curve Optimizer Voltage Offsets

- AMD Ryzen™ Master Support

Memori:

- DDR5 UDIMM, Dual-Channel

- Max Capacity: 192GB

- Max Speed: DDR5-5600 (2x1R/2x2R), DDR5-3600 (4x1R/4x2R)

- ECC Support (requires motherboard support)

Grafis Terintegrasi:

- AMD Radeon™ Graphics

- 2 Graphics Cores

- Frequency: 2200 MHz

- USB Type-C DisplayPort Alternate Mode: Yes

Konektivitas:

- Native USB 3.2 Gen2 (10Gbps): 4

- Native USB 2.0: 1

- PCI Express® 5.0, 28 lanes (24 usable)

- NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10

Thermal & Pendinginan:

- Thermal Solution (PIB): Not Included

- Recommended Cooler: Liquid Cooler

- Max Operating Temp (Tjmax): 95°C

Informasi Tambahan:

- Launch Date: 7 November 2024

- OS Support: Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit

- Product ID Boxed: 100-100001084WOF

- Product ID Tray: 100-000001084

3 YEARS WARRANTY
