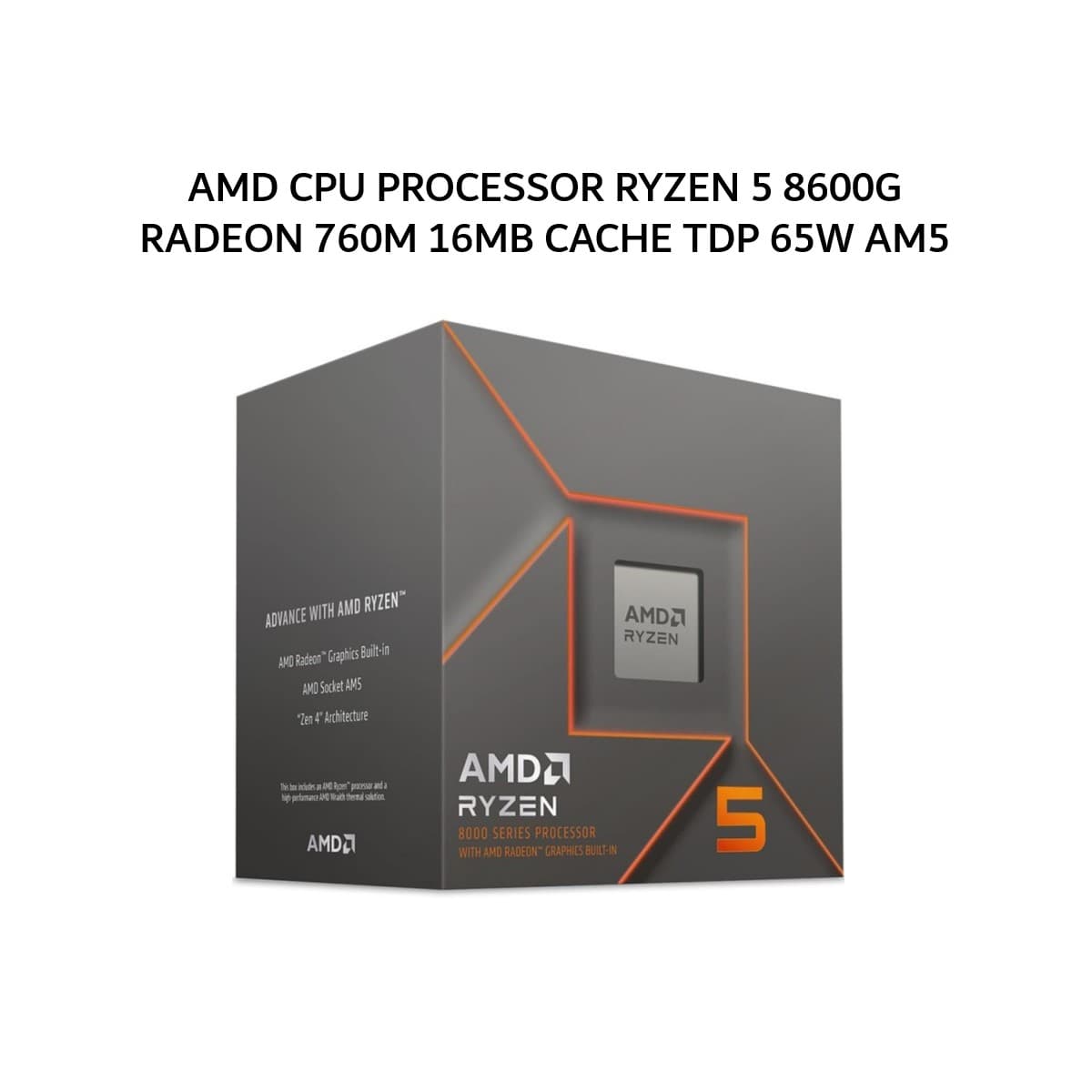

AMD CPU PROCESSOR RYZEN 5 8600G RADEON 760M (6C/12T + 4.3-5.0GHZ) 16MB CACHE TDP 65W AM5

AMD PROCESSOR RYZEN 5 8600G AM5 WRAITH STEALTH COOLER 3Y

General Specifications

Platform Desktop

Product Family AMD Ryzen Processors

Product Line AMD Ryzen 5 8000 G-Series Desktop Processors with Radeon Graphics

AMD PRO Technologies No

Consumer Use Yes

Regional Availability Global

Former Codename "Phoenix"

Architecture "Zen4"

#of CPU Cores 6

Multithreading (SMT) Yes

#of Threads 12

Max. Boost Clock Up to 5.0GHz

Base Clock 4.3GHz

L2 Cache 6MB

L3 Cache 16MB

Default TDP 65W

AMD Configurable TDP (cTDP) 45-65W

Processor Technology for CPU Cores TSMC 4nm FinFET

CPU Compute Die (CCD) Size 137mm²

Package Die Count 1

AMD EXPO Memory Overclocking Technology Yes

Precision Boost Overdrive Yes

Curve Optimizer Voltage Offsets Yes

AMD Ryzen Master Support Yes

CPU Socket AM5

CPU Boost Technology Precision Boost 2

Instruction Set x86-64

Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax) 95°C

Connectivity

Native USB 4 (40Gbps) Ports 2

Native USB 3.2 Gen 2 (10Gbps) Ports 2

Native USB 2.0 (480Mbps) Ports 1

PCI Express Version PCIe 4.0

Native PCIe Lanes (Total/Usable) 20 / 16

NVMe Support Boot, RAID0, RAID1

System Memory Type DDR5

Memory Channels 2

Max. Memory 256GB

System Memory Subtype UDIMM

Graphics Capabilities

Integrated Graphics Yes

Graphics Model AMD Radeon 760M

Graphics Core Count 8

Graphics Frequency 2800 MHz

DirectX Version 12

DisplayPort Version 2.1

HDMI Version 2.1

HDCP Version Supported 2.3

USB Type-C DisplayPort Alternate Mode Yes

Multi-Monitor Support Yes

Max Displays 4

AMD FreeSync Yes

Wireless Display Miracast

AMD SmartAccess Memory Yes
