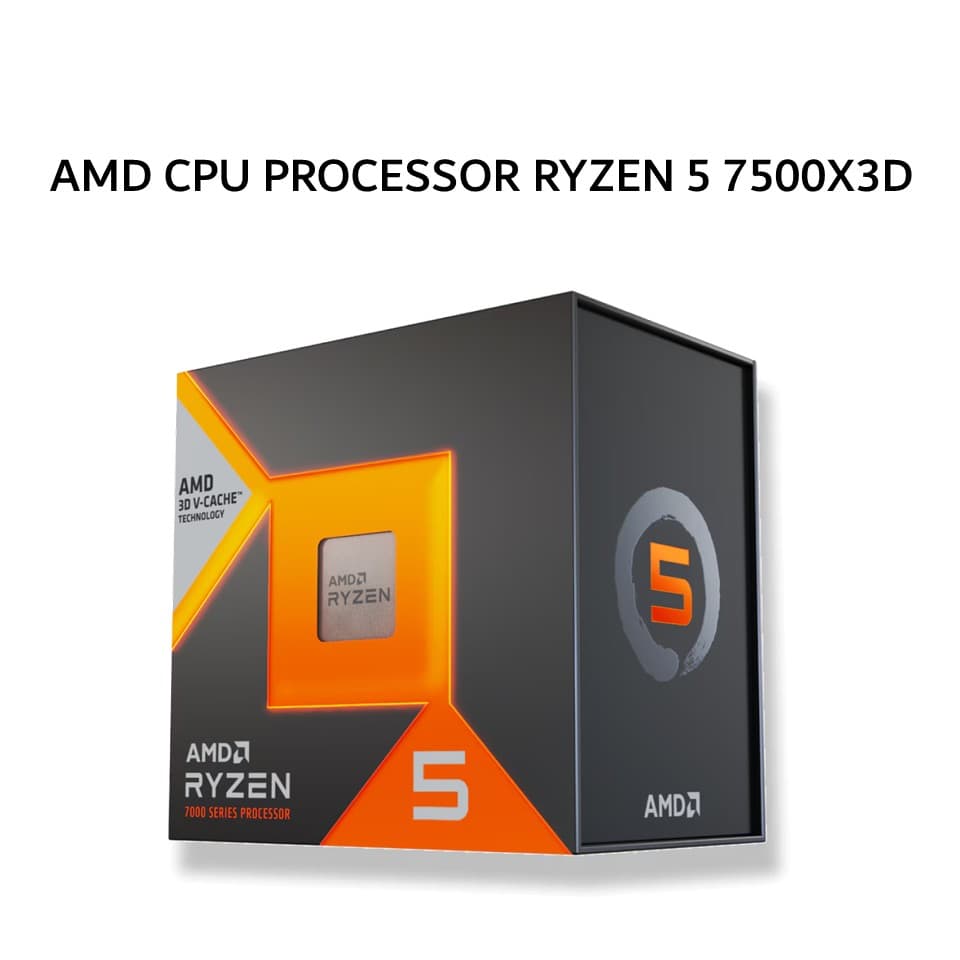

AMD CPU PROCESSOR RYZEN 5 7500X3D (6C/12T + 4-4.5GHZ) 96MB CACHE TDP 65W AM5 3Y TRAY

SPESIFIKASI

Brand: AMD

Model: AMD Ryzen 5 7500X3D

Family: Ryzen

Series: Ryzen 7000 Series

Form Factor: Desktop Boxed Processor

Market Segment: Enthusiast Desktop

Regional Availability: NA EMEA

Former Codename: Raphael AM5

Processor Architecture: Zen 4

CPU Cores: 6

Threads: 12

Multithreading SMT: Yes

Base Clock: 4 GHz

Max Boost Clock: Up to 4.5 GHz

L1 Cache: 384 KB

L2 Cache: 6 MB

L3 Cache: 96 MB

Default TDP: 65W

Max Operating Temperature Tjmax: 89°C

Processor Technology CPU Cores: TSMC 5nm FinFET

Processor Technology I O Die: TSMC 6nm FinFET

CPU Compute Die Size: 71mm²

I O Die Size: 122mm²

Package Die Count: 2

CPU Socket: AM5

Supported Chipsets: A620 X670E X670 B650E B650 X870E X870 B840 B850

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES AMD-V AVX AVX2 AVX512 FMA3 MMX-plus SHA SSE SSE2 SSE3 SSE4.1 SSE4.2 SSE4A SSSE3 x86-64

System Memory Type: DDR5

Memory Channels: 2

Max Memory: 128 GB

System Memory Subtype: UDIMM

Max Memory Speed:

2x1R DDR5-5200

2x2R DDR5-5200

4x1R DDR5-3600

4x2R DDR5-3600

ECC Support: Yes Requires motherboard support

PCI Express Version: PCIe 5.0

Native PCIe Lanes Total Usable: 28 24

NVMe Support: Boot RAID0 RAID1 RAID10

Native USB 3.2 Gen 2 10Gbps: 4

Native USB 3.2 Gen 1 5Gbps: 0

Native USB 2.0 480Mbps: 1

Graphics Model: AMD Radeon Graphics

Graphics Core Count: 2

Graphics Frequency: 2200 MHz

USB Type-C DisplayPort Alternate Mode: Yes

Thermal Solution PIB: Not Included

Recommended Cooler: Liquid cooler recommended for optimal performance

Supported Technologies: AMD EXPO Technology AMD Ryzen Technologies

AMD EXPO Memory Overclocking Technology: Yes

Precision Boost Overdrive: Yes

Curve Optimizer Voltage Offsets: Yes

AMD Ryzen Master Support: Yes

OS Support: Windows 11 64-Bit Edition Windows 10 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit

Product ID Tray: 100-000001904
