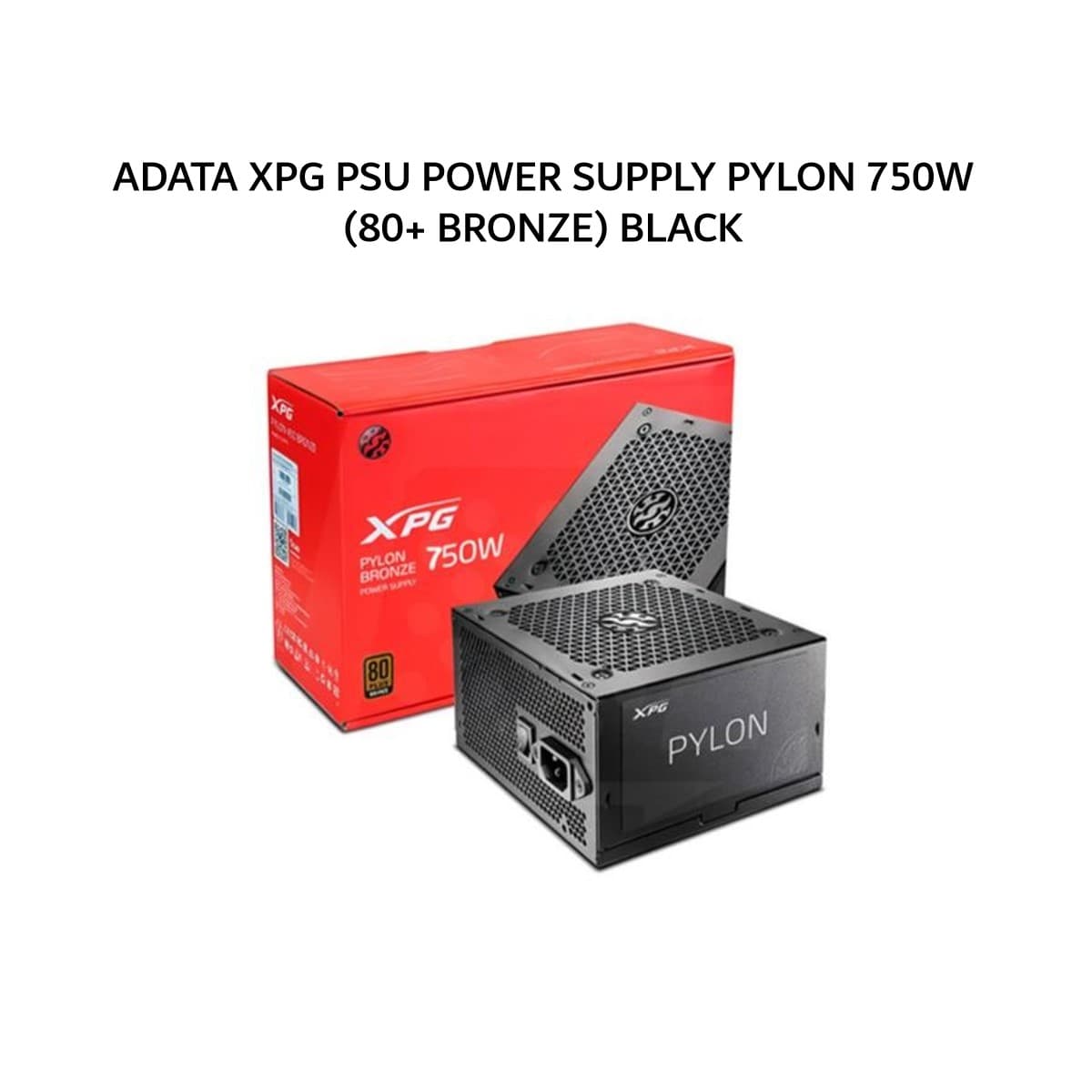

ADATA XPG PSU POWER SUPPLY PYLON 750W (80+ BRONZE) BLACK

ADATA XPG PSU POWER SUPPLY PYLON 750W (80+ BRONZE) BLACK

GARANSI RESMI 5 TAHUN

Dimensions (L x W x H)

140 x 150 x 86mm

Cybenetics Rating

650W/750W: SILVER

450W/550W: BRONZE

80 Plus Rating

BRONZE

ATX Version

Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)

Protections

OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP

Certification

CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC

PFC

0.99

Input Voltage

100-240V

Input Current

750W：10A/5A, 650W：10A/5A , 550W：8A/4A ,450W：7A/3.5A

Input Frequency

50Hz - 60Hz

Operating Temperature

50C

Fan Size

120mm

Fan Bearing

FDB (Fluid Dynamic Bearing)*

Fan Speed

2,000 RPM

MTBF

100K Hours at 25c

ATX 24 Pin Connector

1

EPS 8 (4+4) Pin Connector

750W : 1 / 650W : 1 / 550W : 1 / 450W：1

EPS 8 Pin Connector

750w : 1 / 650w : 1 / 550w : 0 / 450w : 0

PCI-E 6+2 Pin Connector

750W : 4 / 650W : 4 / 550W : 2 / 450W：2

Molex 4 Pin Connector

750W : 3 / 650W : 3 / 550W : 2 / 450W：2

SATA Connector

750W : 8 / 650W : 8 / 550W : 5 / 450W：5

Weight

750W：

Product：2.12kg (4.7lb) ±5%

with Package：2.63kg (5.8lb) ±5%
