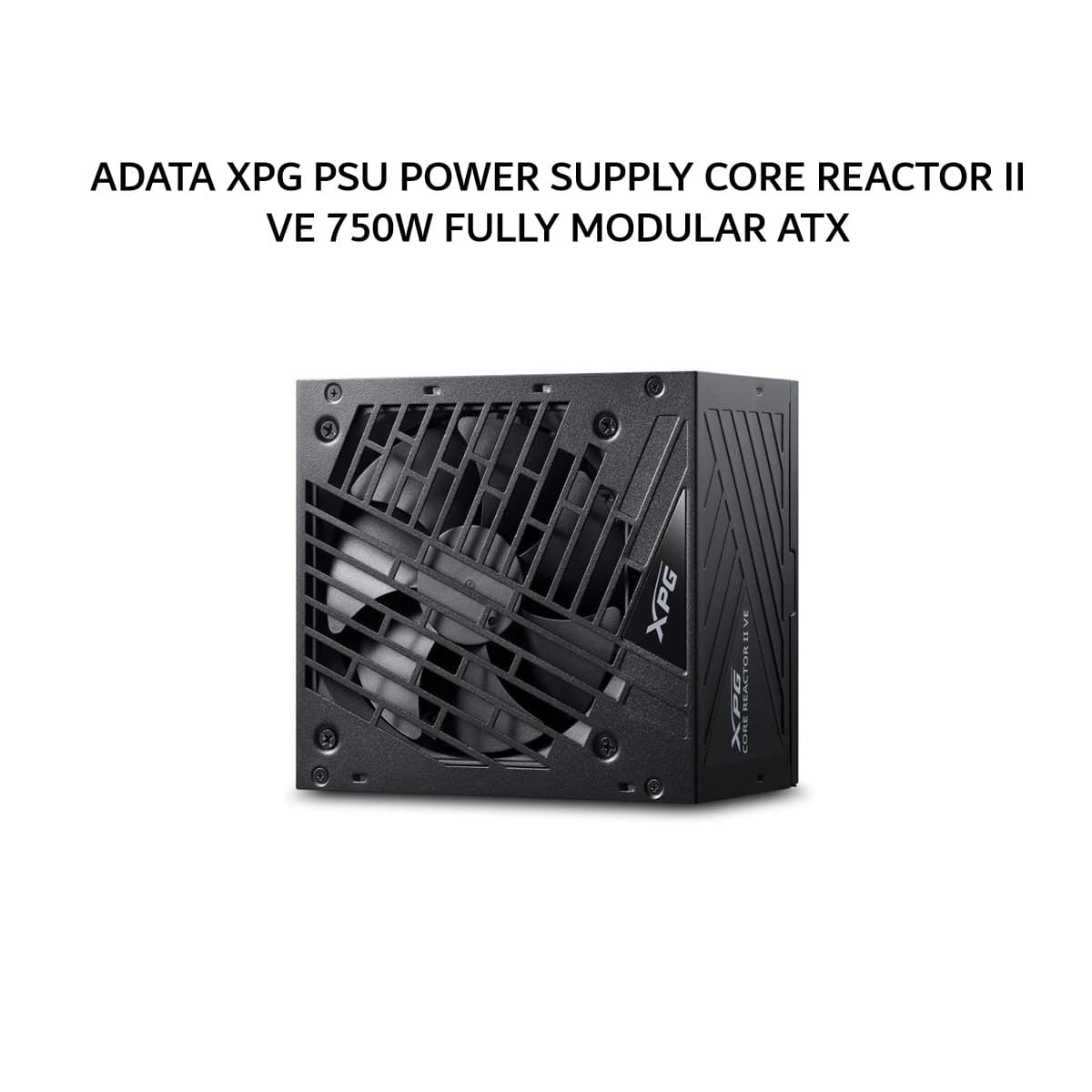

ADATA XPG PSU POWER SUPPLY CORE REACTOR II VE 750W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

ADATA XPG PSU POWER SUPPLY CORE REACTOR II VE 750W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

Spesifikasi :

Dimensions (L x W x H) : 140 x 150 x 86mm

Cybenetics Rating : GOLD

80 Plus Rating : GOLD

ATX Version : Intel ATX 12V v3.1

Protections ;

OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

Certification :

CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus

PFC : 0.99

Input Voltage : 100-240V

Input Current

850W : 12A

750W : 10A

650W : 10A

Input Frequency : 47Hz-63Hz

DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb

Total Output

850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A

750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A

650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A

Power Excursion

850W: 1997W (*up to 235% of the PSU's rated power for 100)

750W: 1762W (*up to 235% of the PSU's rated power for 100)

650W: 1527W(*up to 235% of the PSU's rated power for 100)

Operating Temperature : 40°C

Fan Size : 120mm FDB Fan

Fan Bearing : FDB (Fluid Dynamic Bearing)

Fan Speed : 2400 RPM

MTBF : 100K hours at full load

Connector PSU :

ATX 24 Pin Connector : 1

EPS 8 Pin Connector : 2

PCI-E 6+2 Pin Connector :

850W / 750W : 3

650W : 2

Molex 4 Pin Connector : 2

12V-2x6 (12+4) Connector (600W)

850W / 750W : 1

12V-2x6 (12+4) Connector (450W)

650W : 1

SATA Connector : 6

Weight

850W / 750W:

Product + Cables : 1450g+1350g

with Package: 3.03kg

650W :

Product + Cables: 1450g+1320g

with Package: 3kg
