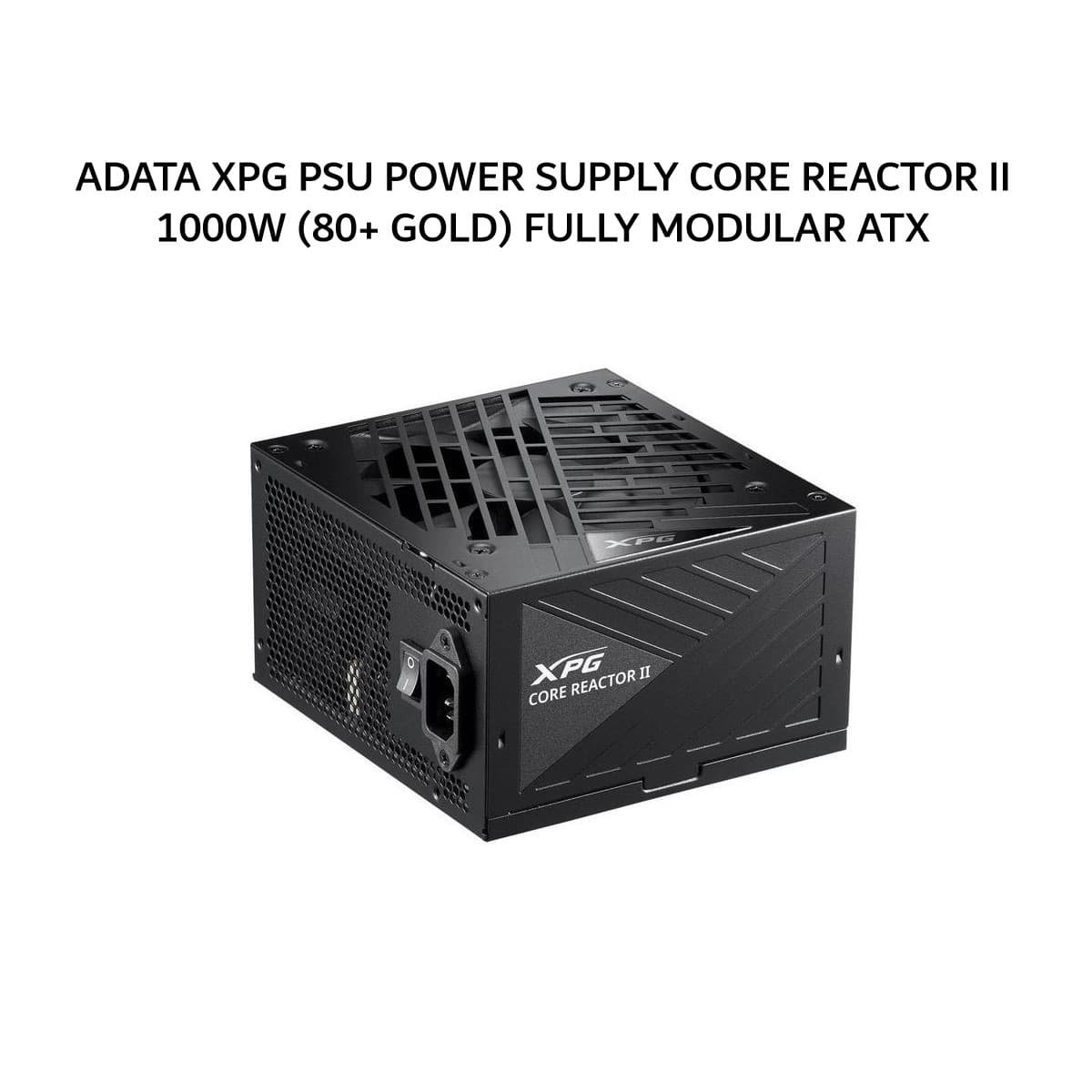

ADATA XPG PSU POWER SUPPLY CORE REACTOR II 1000W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

ADATA XPG PSU POWER SUPPLY CORE REACTOR II 1000W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

SPESIFIKASI :

Dimensions (L x W x H)

1000W-1200W: 160 x 150 x 86mm

Cybenetics Rating

1200W: PLATINUM

1000W: PLATINUM

80 Plus Rating : GOLD

ATX Version : ATX 3.1

Protections : OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification : CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC : > 0.99

Input Voltage : 100-240V

Input Current

1200W: 15A

1000W: 13A

Input Frequency : 650/750/850/1000/1200W:47Hz-63Hz

DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb

Total Output

1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A

1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A

Power Excursion

1200W: 2820W(*up to 235% of the PSU's rated power for 100s)

1000W: 2350W(*up to 235% of the PSU's rated power for 100s)

Fan Size

1000W-1200W: 135mm FDB Fan

Fan Bearing : FDB (Fluid Dynamic Bearing)

Fan Speed : 2400 RPM

MTBF : 100K hours at full load

ATX 24 Pin Connector

1200W/1000W:1

EPS 8 Pin Connector

1200W/1000W:2

PCI-E 6+2 Pin Connector

1200W/1000W:8

Molex 4 Pin Connector

1200W/1000W:3

12V-2x6 / 12VHPWR (12+4) Connector (600W)

1200W/1000W: 1

12V-2x6 / 12VHPWR (12+4) Connector (450W)

SATA Connector

1200W/1000W:9

Weight

1200W/1000W:

Product+cables：1.77kg+1.28kg

with Package:3.43kg

Warranty : 10 Years
